XD522-DP-PAIR: High Resolution DisplayPort Video Extender With USB 2.0 And Audio Over CATx Cables, Up To 490 Feet

XD522-DP-PAIR: High resolution DisplayPort video extender with USB 2.0 and audio over CATx cables, up to 490 feet

AdderLink XD522 is a high performance KVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station while maintaining the same user desktop experience.

AdderLink XD522 can transmit either two 1920×1200 video streams or one higher resolution video stream (2560×1600 WQXGA), digital audio (S/PDIF), analog audio, Hi-Speed USB 2.0 and USB 2.0 (full and low speed) over CATx cables.

Perfect Digital Video, Real Time Control

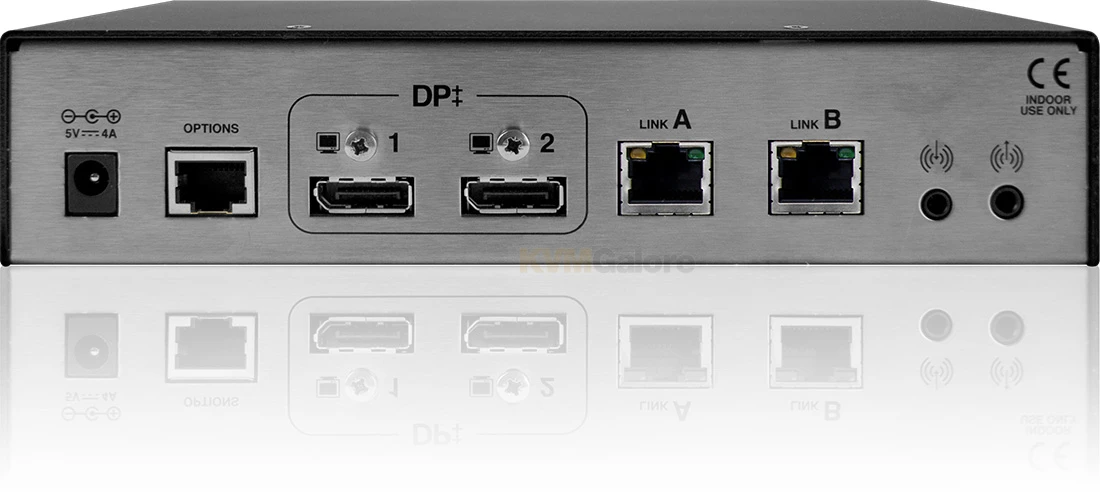

The system is uncompressed, where by every pixel of every frame IS sent without loss. The receiver supports DisplayPort Dual Mode (DP++) which means that monitors which only support HDMI or DVI can be used (with the correct adapter cable).

Single CATx Cable

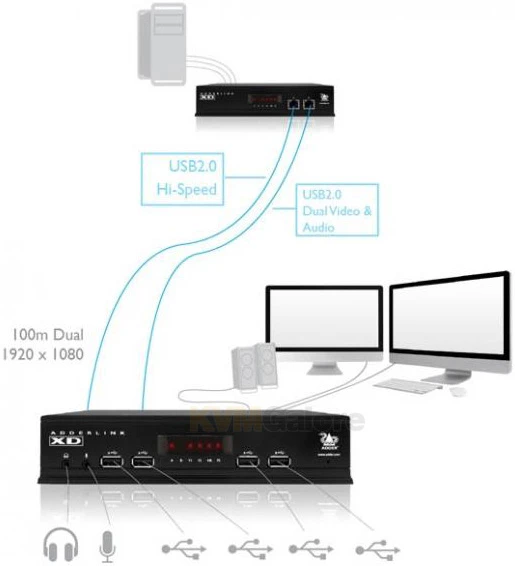

Video, USB 2.0 (HID-only) and audio all pass along a single cable. A second CATx cable is required for the Hi-Speed USB 2.0 extension.

Up to 492 Foot Extension Distances
Distance is dependent on the monitor resolution, number of monitors, cable type and the number of connection breaks for patch panels and wall plates.

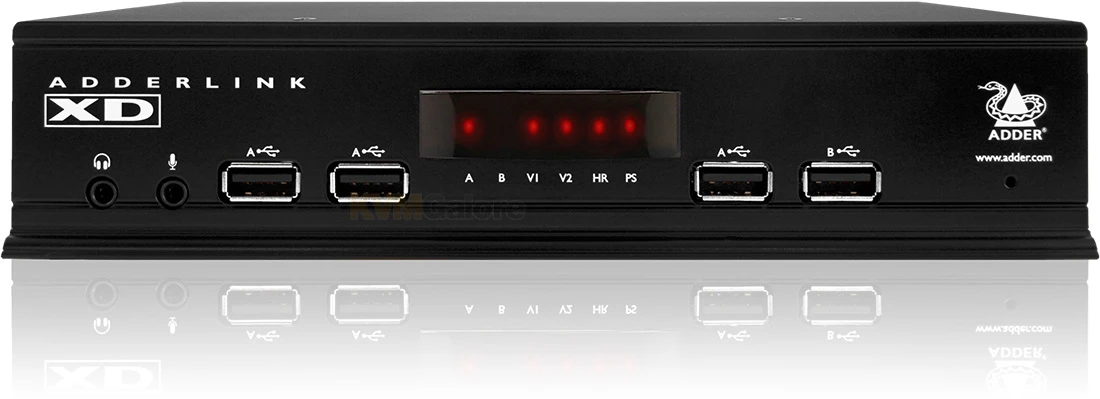

USB 2.0
Enables connection of any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage devices and isochronous devices such as webcams and headsets can be used through the transparent USB 2.0 Hi-Speed port.

EDID Management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and Play
AdderLink XD522 extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed.

Digital Audio
Supports the S/PDIF interface via an optical 3.5mm jack socket (dual use with analog audio via mini TOSLink).

HD Quality Analog Audio
HD audio quality (stereo channel 24 bit sampled @ 96kHz) is available to transfer audio from local to remote for Line In / Line. Microphone in and headphone use cases are also supported.

Features and Benefits
• Plug and play
• 492 foot extension distance for a single 1920×1080 screen
• 328 foot extension distance for two 1920×1200 screens or a single high resolution screen to 2560×1600
• Supports Mac Cinema Display (2560×1440)
• USB 2.0 Hi-Speed for mass storage devices
• USB 2.0 Keyboard, mouse tablet and touch
• S/PDIF, and analog audio

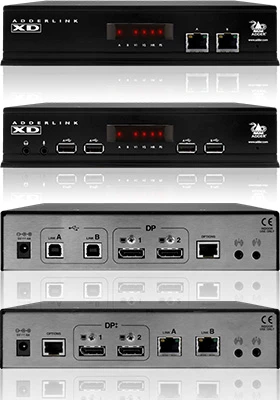

In the Box
1x Transmitter unit
1x Receiver unit
1x DisplayPort cable [VCSD10]2x USB Type-A to Type-B cables [VSC24]2x Audio cables (3.5mm stereo jacks) [VSC22]1x Serial cable [VSC40]2x Power adapters (20W) w/ US power leads
8x Self-adhesive rubber feet
1x Quick-start guide
