Turn Your USB-C or Thunderbolt 3 Laptop into A 4K Triple-monitor Workstation

Turn your USB-C or Thunderbolt 3 laptop into a 4K triple-monitor workstation

with 2x 4K 60Hz or 3x 4K 30Hz video support, Gigabit Ethernet, 6x USB ports (1x fast-charge), audio, plus 100W Power Delivery laptop charge as you work



• USB Type-C docking port
• Dual 4K 60Hz or triple 4K 30Hz video ports on DisplayPort 1.4 Alt-Mode HBR3 w/ DSC enabled laptop
• 100W Power Delivery
• 6 port USB hub with BC 1.2 fast charge always-on ports
• SD 3.0 UHS-I card reader
• Gigabit Ethernet
• Headset support
• Windows and Chrome OS support for laptops, Chromebooks, ultrabooks including Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, and ZBook
• No driver setup
• 2x security lock k-slots
• On/Off button
• 3.3 foot (1 m) USB Type-C host cable
• Connectivity Tools application provided with this device the improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout and Wi-Fi Auto Switch utilities

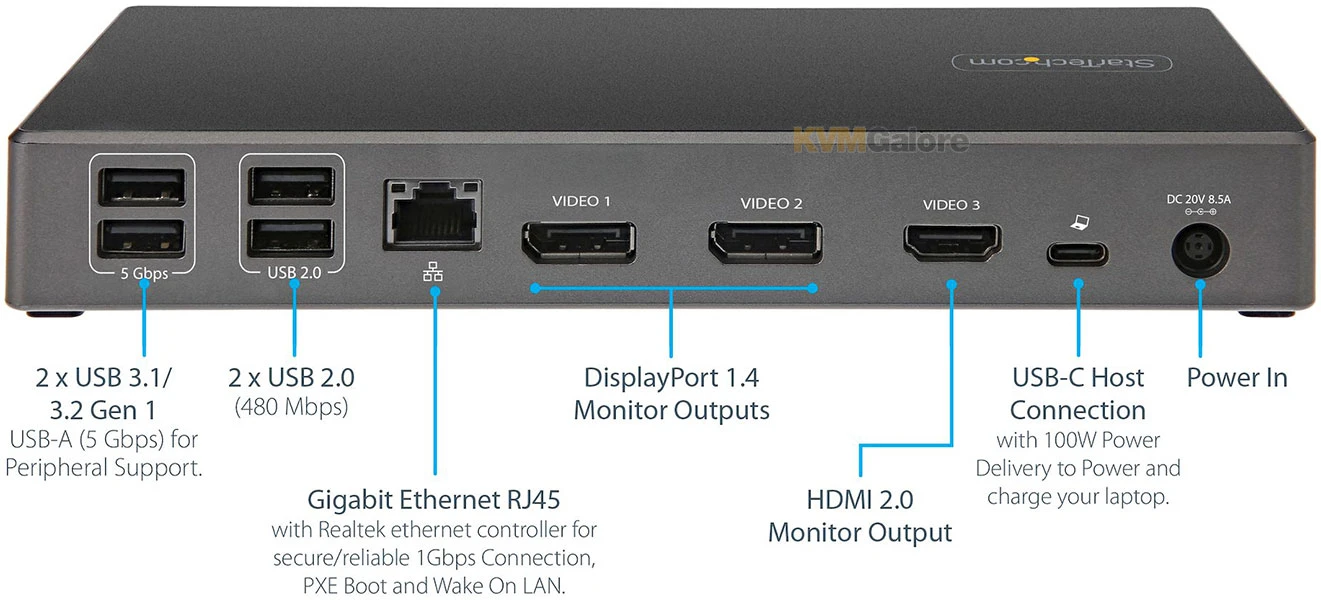

Expansion Ports
2x DisplayPort
1x HDMI
2x USB Type-C (USB 3.2 Gen 2, 10Gbps, Fast-Charge)
2x USB Type-A (USB 3.2 Gen 1, 5Gbps)
2x USB Type-A (USB 2.0 480Mbps)
1x SD / MMC Slot
1x RJ-45 Ethernet
1x 3.5 mm stereo audio

This USB-C docking station turns your USB-C or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. This USB-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB Type-C and USB Type-A downstream peripheral ports to 100W Power Delivery.

HDMI and DisplayPort for Multiple Monitor Outputs
This USB-C docking station with DisplayPort 1.4 and HDMI 2.0 HBR3 support is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output, with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DisplayPort 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.

Power and Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops and ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.

Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

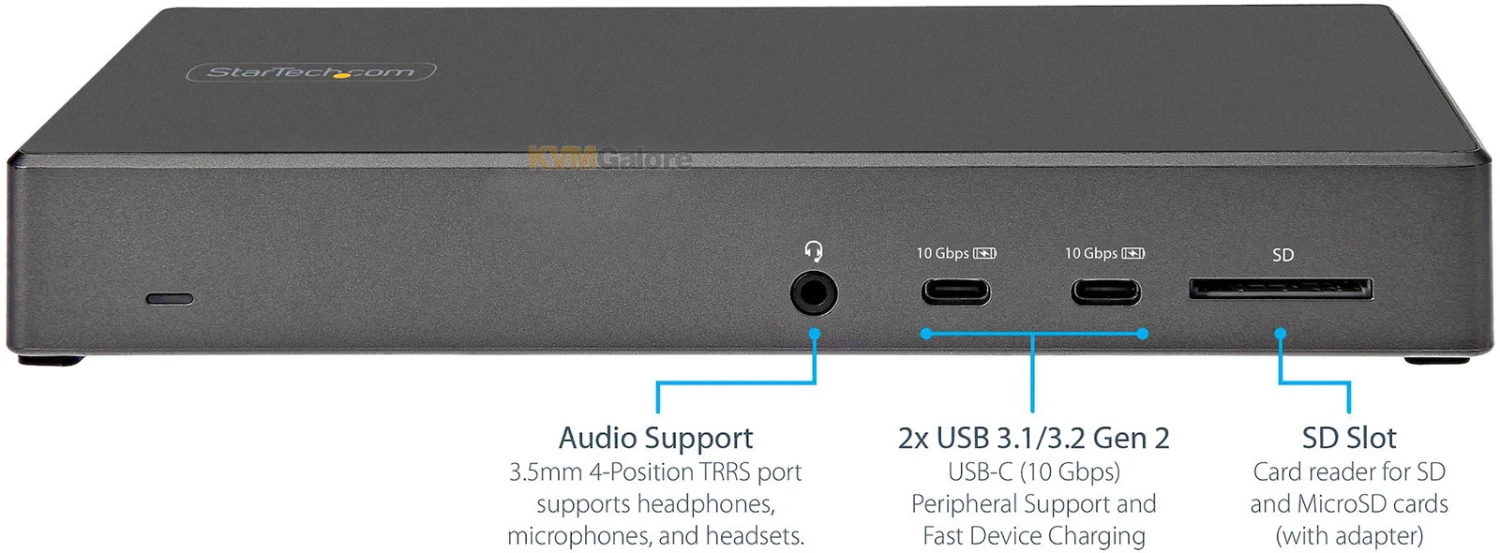

Integrated 6-Port USB Hub and SD Card Reader
This USB-C docking station features 6 downstream USB ports in total to connect USB peripherals and an SD 3.0 UHS-I card reader for media storage.
2x USB Type-C USB 3.2 Gen 2 – 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
2x USB Type-A USB 3.2 Gen 1x 5 Gbps
2x USB Type-A USB 2.0 – 480 Mbps
1x SD 3.0 UHS-I card reader

Also included is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.

Additional Security Features

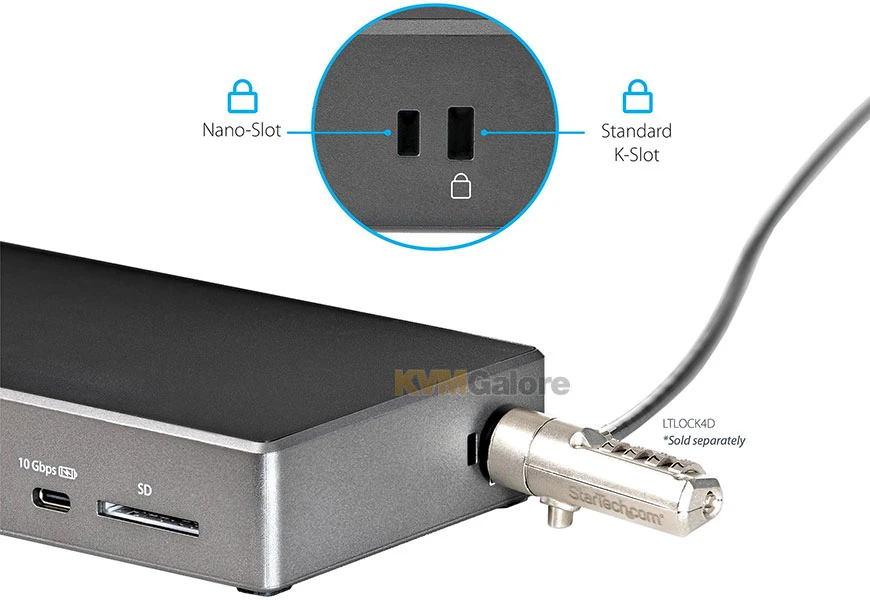

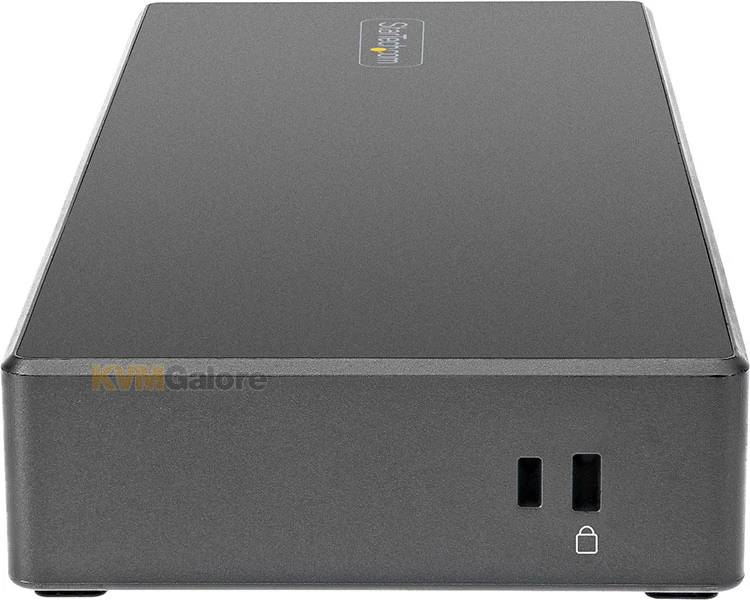

This USB-C docking station features two K-slots for a Kensington style laptop lock.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: To setup and save custom windows layouts
• Mac Address Pass-Through Utility: To improve network security
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN

Included in Package
1x USB-C Dock
2x Power Cable NA/JP and ANZ
1x USB-C Cable (1 m)
1x Quick-Start Guide
1x Power Adapter
