Turn Your USB-C or Thunderbolt 3/4 Laptop into A 4K Triple-monitor Workstation

Turn your USB-C or Thunderbolt 3/4 laptop into a 4K triple-monitor workstation

with 2x 4K 60Hz and 1x 4K 30Hz video ports, Gigabit Ethernet, 5x USB 3.0 ports (1x fast-charge), audio, plus 100W Power Delivery laptop charge as you work



• USB Type-C docking port
• Triple 4K video: Dual 4K 60Hz HDMI and/or DisplayPort | 4K 30Hz HDMI via DisplayPort Alt Mode
• Compatible with Windows, macOS, ChromeOS and Ubuntu
• 5-port USB hub with 3x USB Type-A (2x 5Gbps, 1x 10Gbps w/BC 1.2 charging) and 2x USB Type-C (1x 10Gbps w/BC 1.2, 1x 5Gbps)
• 100W USB Power Delivery 3.0
• 3.5mm headset/audio port
• Gigabit Ethernet (WoL)
• K Slot
• OCP protects devices from power surges
• USB-IF certified USB Type-C host cable
• Connectivity Tools application provided with this device the improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout and Wi-Fi Auto Switch utilities

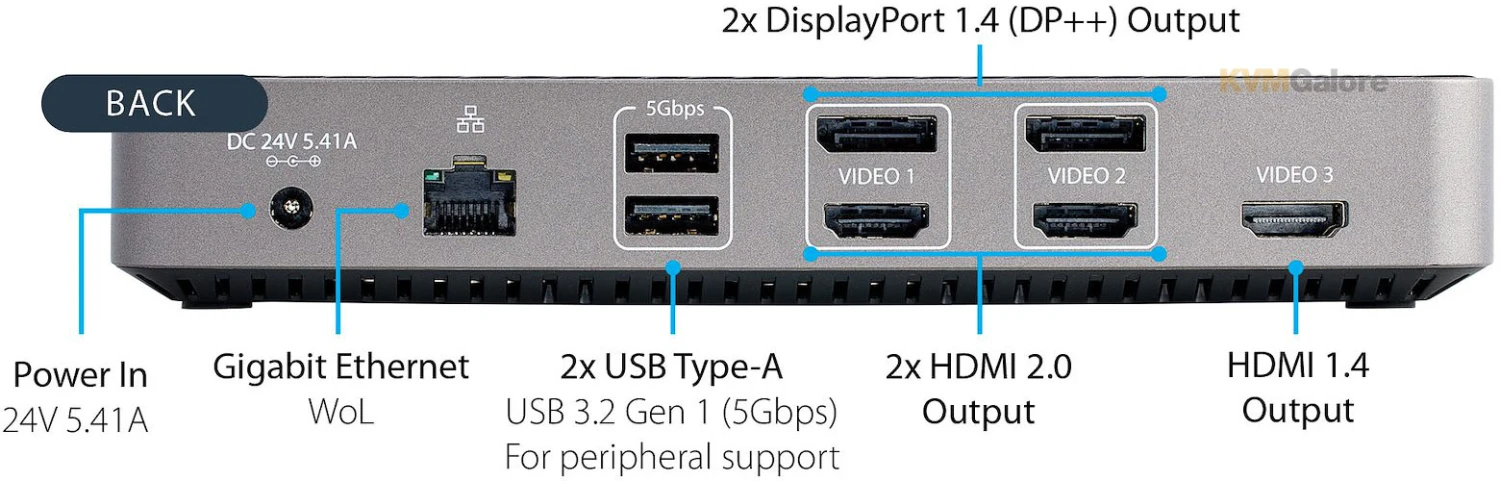

Expansion Ports
3x HDMI
2x DisplayPort
1x USB Type-A (USB 3.2 Gen 2, 10Gbps, 7.5W Power)
2x USB Type-A (USB 3.2 Gen 1, 5Gbps)
1x USB Type-C (USB 3.2 Gen 2, 10 Gbps Fast-Charge)
1x USB Type-C (USB 3.2 Gen 1, 5Gbps)
1x 3.5 mm audio headset mini-jack (4 position)
1x RJ-45 Ethernet

This USB Type-C triple 4K monitor docking station enables wide workstation flexibility, featuring compatibility with USB Type-C or Thunderbolt 3/Thunderbolt 4 laptops, and supporting multiple combinations of Ultra-HD 4K DisplayPort and HDMI monitors.

Enhance Productivity with Triple-4K Video
This triple-4K docking station uses a combination of its integrated DisplayLink^® graphics controller and your computer’s DisplayPort Alt Mode enabled USB Type-C port to provide three independent 4K displays.
Connect any combination of HDMI and/or DisplayPort monitors to video ports 1 and 2 (DisplayLink^®), at resolutions up to 4K at 60Hz. Connect an HDMI monitor to video port 3 (DisplayPort Alt-Mode), at resolutions up to 4K at 30Hz. This high-resolution video performance is ideal for detailed graphics applications, enhancing your productivity by expanding the display capabilities of your laptop.

Full-Featured Docking Station

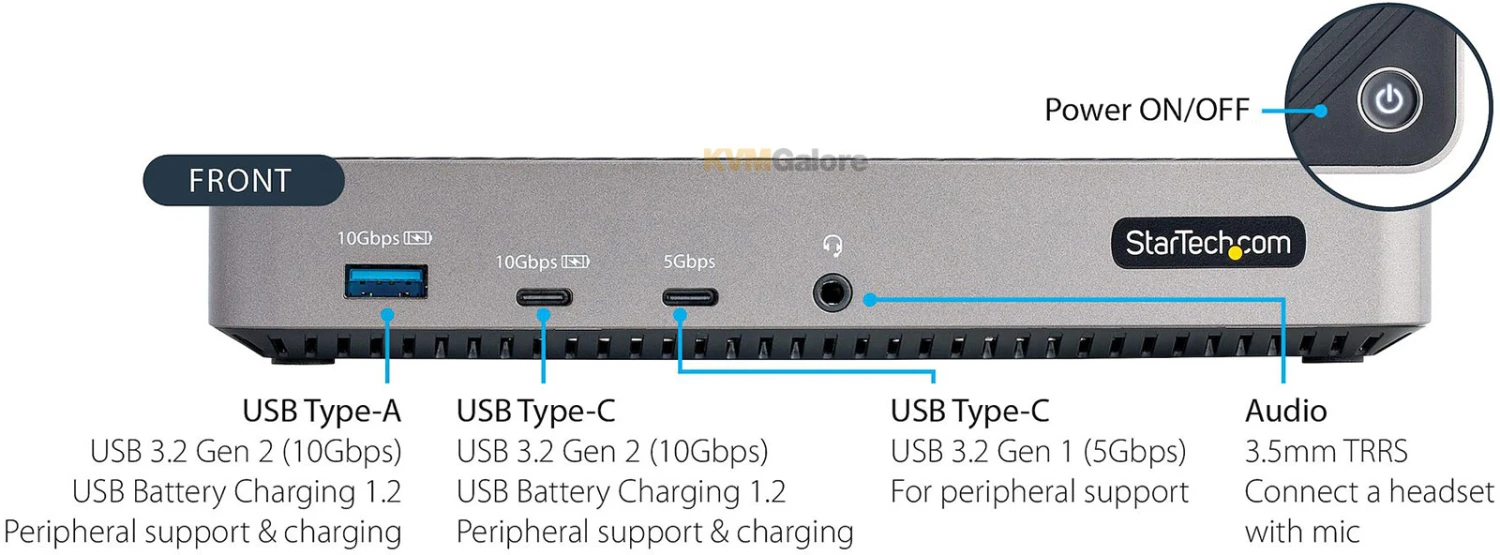

Connect the docking station to your computer’s Type-C port (USB 3.2 Gen 2, 10Gbps) to provide a wide range of port connectivity, options and features. The docking station features:
2x USB Type-A and 1x USB Type-C (USB 3.2 Gen 1 5Gbps) ports for USB peripheral devices.
1x USB Type-A and 1x USB Type-C (USB 3.2 Gen 2 10Gbps) port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones.
1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
1x 3.5mm 4-position TRRS audio jack for a 3.5mm headset.

100W USB Power Delivery
The USB Type-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as the devices connected to the BC 1.2 USB charging ports.

For added protection to connected USB devices, the BC 1.2 enabled USB charging ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.

Easy Deployment

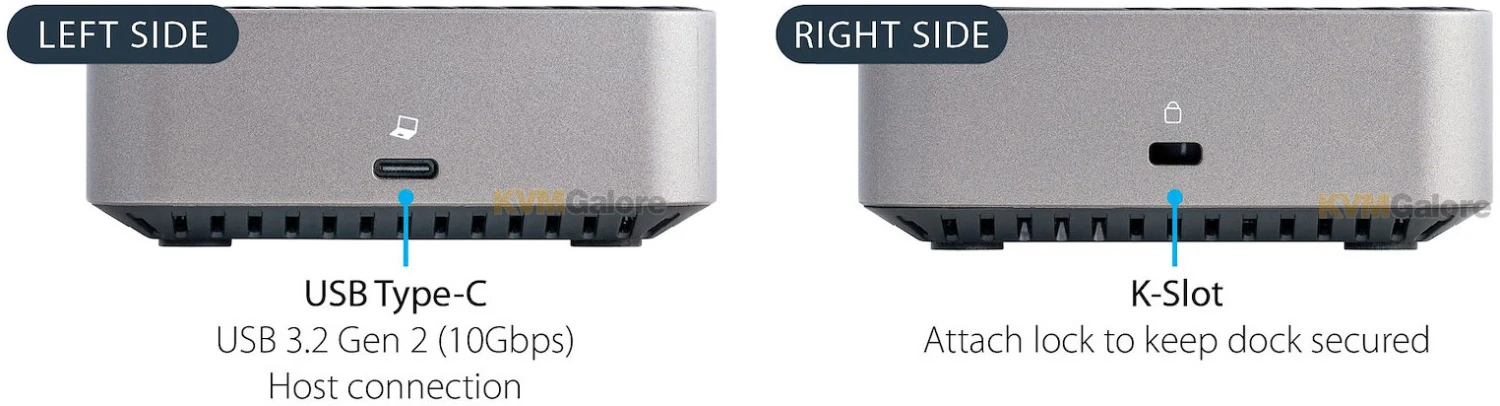

Connect the dock to your host computer using the included 3.3 foot (1m) USB Type-C cable. The docking station supports all major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This dock was designed for seamless integration with any compatible USB Type-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side-facing K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).

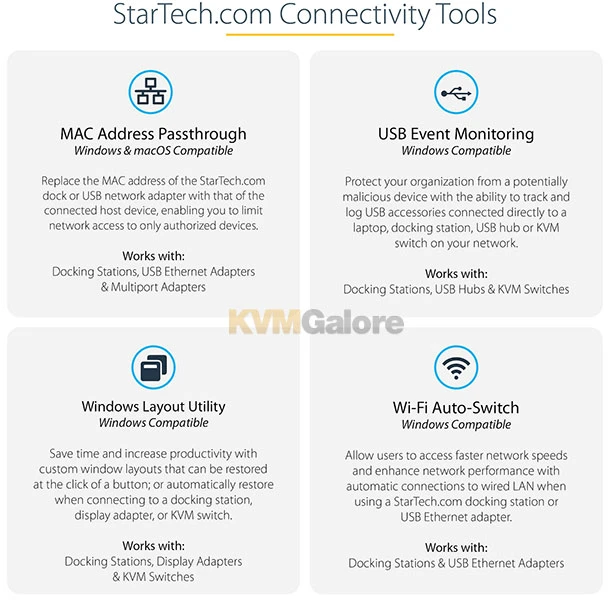

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: To setup and save custom windows layouts
• Mac Address Pass-Through Utility: To improve network security
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN

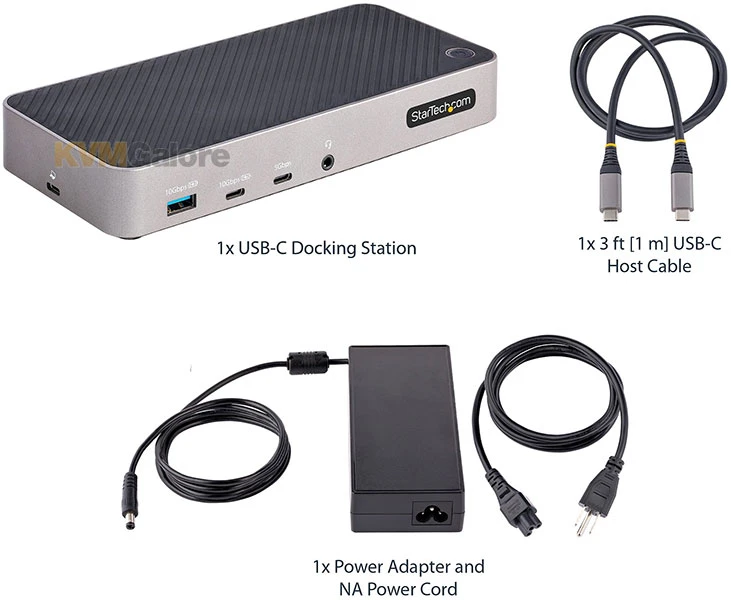

Included in Package
1x USB Type-C Docking Station
1x 3.3 foot [1 m] USB Type-C Host Cable
1x Power Adapter (North America)
1x Quick-Start Guide
