Turn Your USB-C Laptop into A 4k Dual-monitor Workstation

Turn your USB-C laptop into a 4k dual-monitor workstation

with dual video (HDMI and DisplayPort), Gigabit Ethernet, SD card reader, 4x USB 3.0 ports, headset and 60W Power Delivery to charge your laptop as you work

• USB Type-C docking port
• Turn your USB-C equipped laptop into a dual Ultra-HD 4K workstation by connecting two external 4K monitors: 1x DisplayPort (DisplayLink) 4K @ 30Hz and 1x HDMI (DP Alt Mode) 4K @ 30Hz
• Universal USB-C dock supports MacOS and Windows
• Powers and charges your laptop, with 60W USB Power Delivery 2.0
• SD and microSD (with adapter) memory card reader supports SD 4.0 and UHS-II (backward compatible with older SD card versions)
• Connect your peripheral devices, with 4x USB 3.0 ports
• Quickly charge your phone or tablet with the always-on USB 3.0 fast-charge and sync port
• Thunderbolt 3 port compatible
• Gigabit Ethernet port adds wired network connectivity to your workstation
• Convenient On/Off button on front of docking station

Expansion Ports
4x USB Type-A (USB 3.0) (1x fast-charge)
1x HDMI 4K @ 30 Hz
1x DisplayPort 4K @ 30 Hz
1x RJ45 (wired Gigabit Ethernet)
1x SD card reader
1x Headset 3.5mm

This dual-monitor USB-C dock transforms your MacBook or Windows^® laptop into a dual Ultra-HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD™ card reader slot.

The USB-C docking station features USB Power Delivery 2.0 (60W) to power and charge your laptop as you work. It’s the perfect companion for your MacBook Pro or other Thunderbolt™ 3 equipped laptop.

Create a Dual-4K Video Workstation
The USB-C dock expands the display capabilities of your laptop across two Ultra-HD 4K monitors. It enables DisplayLink^® and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:
1x 4K DisplayPort display at 3840×2160 resolution @ 30Hz
1x 4K HDMI display at 3840×2160 resolution @ 30Hz

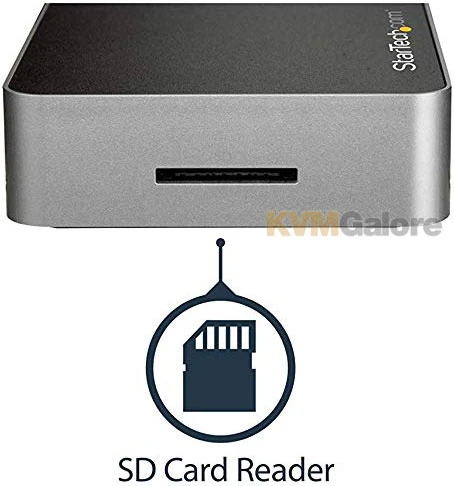

SD Card Reader
The dock provides direct access to your SD memory cards or microSD™ cards (with adapter). The SD card slot can also be used for additional storage and backup through MacOS X Time Machine or Windows 10 File History.

Ample Connections

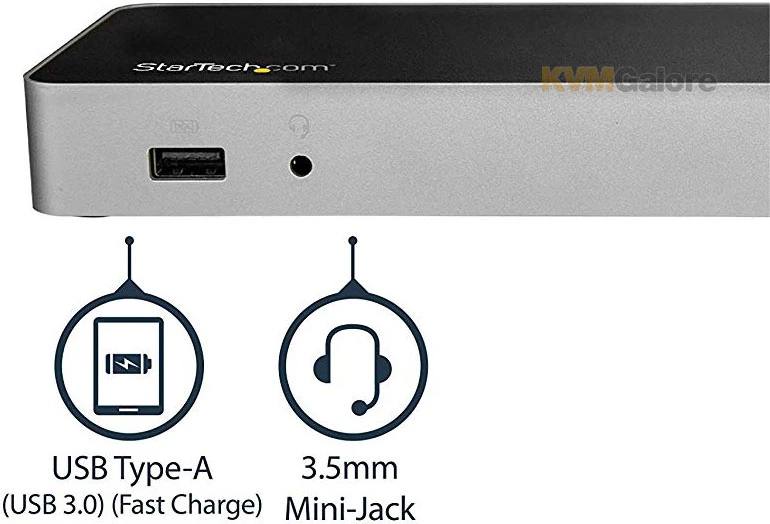

The dock provides four USB 3.0 Type-A ports to connect your peripherals including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and a combined 3.5 mm audio and microphone port.

Universal Support
Compatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.

Applications
• Ideal for professionals who work with highly detailed graphics or data-intensive applications, including graphic and web designers, videographers, animators, analysts and engineers (CAD)
• Scale your desktop across multiple displays — perfect for government, finance, marketing and sales environments
• Expand the connectivity of your laptop — compatible with MacBook Pro, Dell XPS 15 or other USB-C enabled laptops

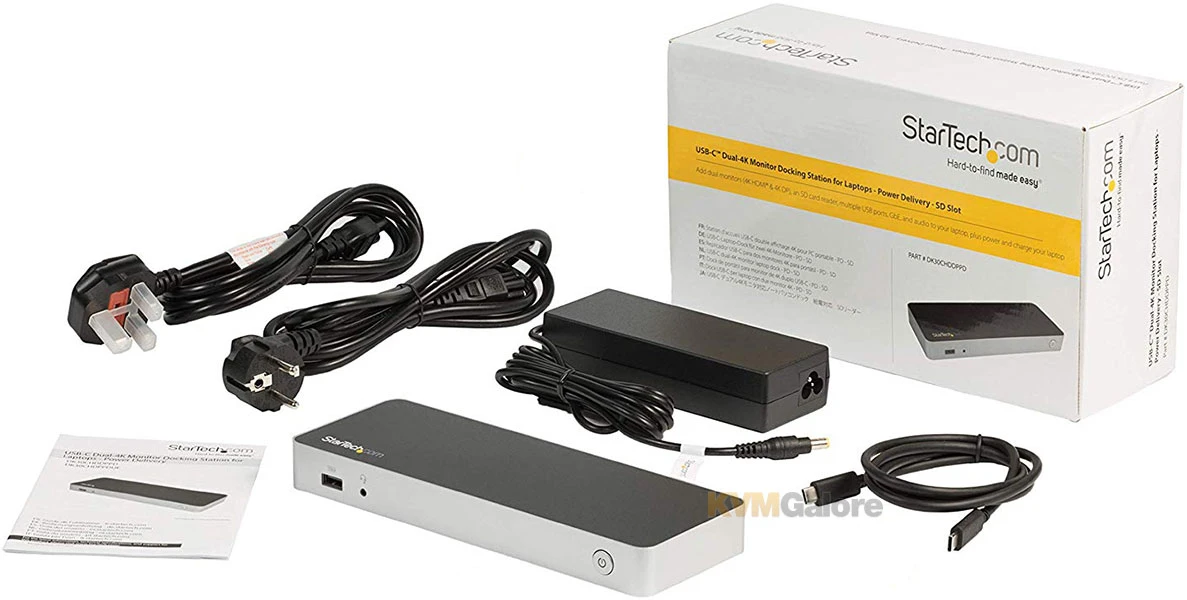

Included in Package
1x Docking station
1x USB-C cable
1x Universal power adapter (NA/JP, ANZ)
1x Instruction manual



Notes
• The dock can connect to a host laptop’s USB-C port even if it doesn’t support USB Power Delivery 2.0 and DP alt mode. However, without support for these two protocols, the dock will not pass power through to your host laptop or support video output.
• The dock’s DisplayPort port only supports active DisplayPort video adapters.
• USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
• A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
• Video output capabilities are dependent on the video card and hardware specifications of the host laptop it’s connected to. Certain video cards have limited video support, and some monitors will also limit the available resolution.
• When connected to your host laptop through WiGig the dock only supports 2-channel audio (5 and 7-channel audio is not supported).
• HDCP content is not supported when connected in WiGig mode.
• USB Power Delivery is only supported when connected through USB-C, and is not supported when connected through WiGig.
• For WiGig mode, the dock must be positioned vertically.
