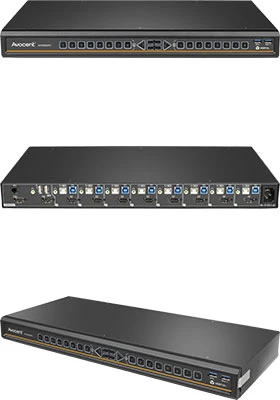

SVM180DPH: A Unique Switching Solutions To Simultaneously Display Two Active Computers

SVM180DPH: A unique switching solutions to simultaneously display two active computers

Vertiv™ Avocent^® Matrix (SVM) switch is ideal for environments where monitoring and managing of two active computers is required.

Through cursor navigation switching (CNS), users seamlessly transition between active computers when moving the cursor across screen borders.

Avocent SVM switch comes with universal video connectors that support both DisplayPort* and HDMI* video connectivity for resolutions up to Ultra-HD 4K. With this flexibility, users are not locked in to input and output display types and reduces the need for multiple types of cables.

Furthermore, the USB 3.0 accessory ports make it easy for users to connect to external USB devices for quick data transfer.

Through the elimination of multiple KVM peripherals and reduction in desk clutter, Vertiv Avocent Matrix increases productivity and reduces operating expenses for  organizations. It also enhances the ability of users to multi-task by keeping two systems in the user’s field of vision at any given time.

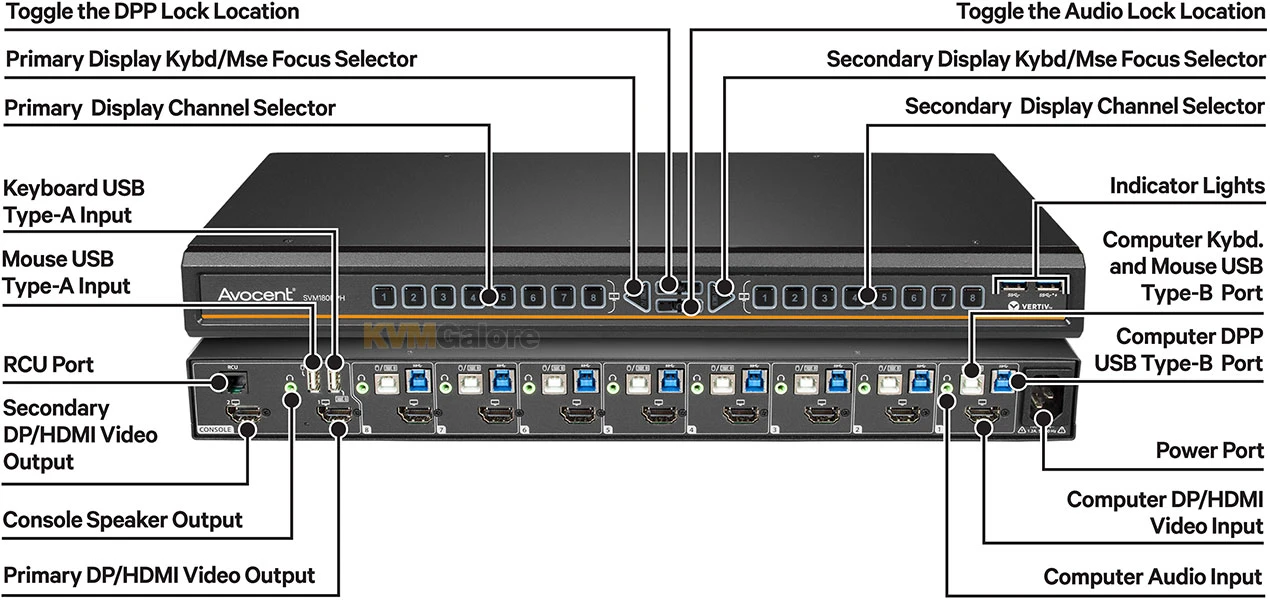

Features and Benefits
• View information on two isolated computers simultaneously – enhances ability to multitask by keeping two critical systems in the user’s field of vision
• Universal video connectors support either HDMI or DisplayPort on the same physical video input and output ports (DVI-D is supported with HDMI-to-DVI-D cable)
• Native video resolution supports up to Ultra-HD 4K at 60Hz
• Cursor navigation switching (CNS) seamlessly transitions keyboard and mouse control between computers when moving the cursor across screen borders
• Touch screen support
• Switched USB 3.0 hub for mass storage devices, cameras, printers, etc. One port is a high-power port to charge USB devices such as phones or tablets
• Managed copy and paste allows users to copy text or files between connected computers
• Independent audio and USB switching
• Freeze USB 3.0 accessory port enables user to lock USB 3.0 devices to a specific computer
• Freeze audio channel independently locks the audio channel to a specific computer
• Access up to 8 computers using a single keyboard and mouse

Package Includes
• SVM180DPH KVM switch
• External, wall-mounted power supply with user-interchangeable localized plug blades
• Cables are not included

Required Cables (per port)
1x DisplayPort KVM Cable or HDMI KVM Cable
or
1x DisplayPort, male-male or HDMI, male-male
1x USB, Type-A to Type-B (for keyboard/mouse)
1x USB, Type-A to Type-B (for USB peripherals)
2x 3.5mm audio cables, male-male

* Notes
1) Each connected computer’s video interface may be either HDMI or DisplayPort.
2) One computer may use an HDMI video connection to the switch while another computer may use a DisplayPort video connection.
3) Only one video connection per computer is supported.
4) Connected monitor may have either HDMI or DisplayPort video connection.
5) Only one video connection to one monitor is supported.
