SV231TDPU34K: Access Two Triple-monitor 4K DisplayPort Computers From A Single Console

SV231TDPU34K: Access two triple-monitor 4K DisplayPort computers from a single console

with audio support and USB 3.0/2.0 hubs for peripheral sharing

---

• Triple Monitor
• TAA Compliant
• USB 3.0 and 2.0 Hubs
• DisplayPort 1.2
• Digital and Analog Audio

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

The DisplayPort KVM switch supports video resolution up to 4K at 60Hz and drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

While supporting Windows, this DisplayPort KVM switch is also compatible with Mac and Linux operating systems.

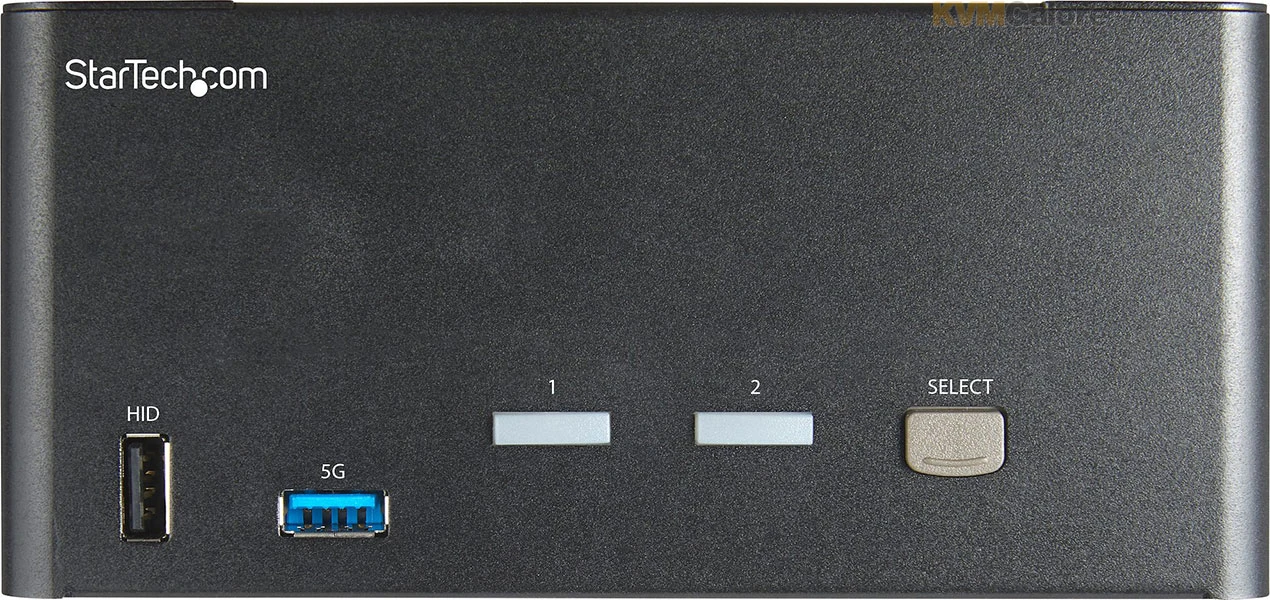

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

Features and Benefits
• Switch between two computers with three monitors using using keyboard hotkeys or push buttons to switch between active computers
• 4K Ultra-HD at 60Hz on four monitors for applications like CAD/CAM, video editing and content creation
• Triple Display
• DisplayPort 1.2
• 3840×2160 60 Hz
• HDCP 2.2
• HDR Support
• 2 port USB 3.0 hub
• 4x USB 2.0 HID ports
• Hotkey and push button
• Stereo analog + digital audio
• Compact and durable steel housing features large buttons and easily accessible front-mounted integrated USB 3.0 port 5Gbps (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
• TAA compliant
• 2-year warranty and free lifetime 24/5 multilingual technical support based in North America

Included in Package
1x KVM Switch
1x Universal Power Adapter (NA/JP, EU, UK, NZ)
4x Rubber Feet
1x Quick-Start Guide
Cables not included

Required Cables (per port)
3x DisplayPort, male-male
1x USB, Type-A to Type-B
2x Audio, 3.5mm, male-male
