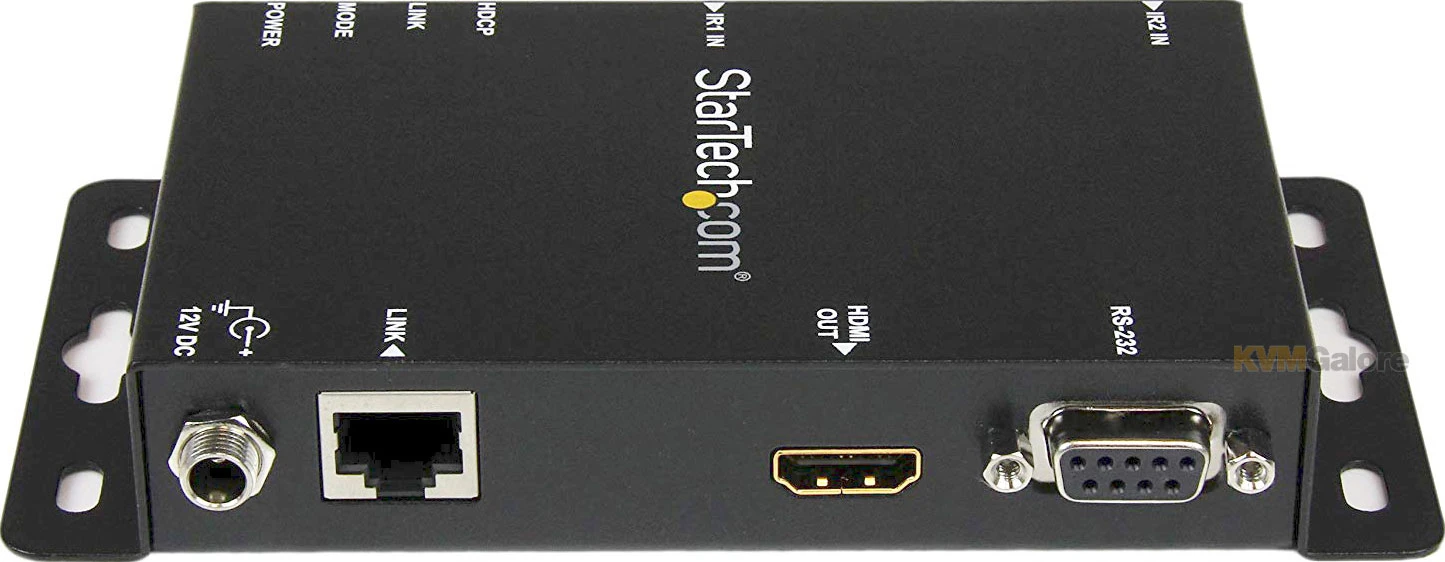

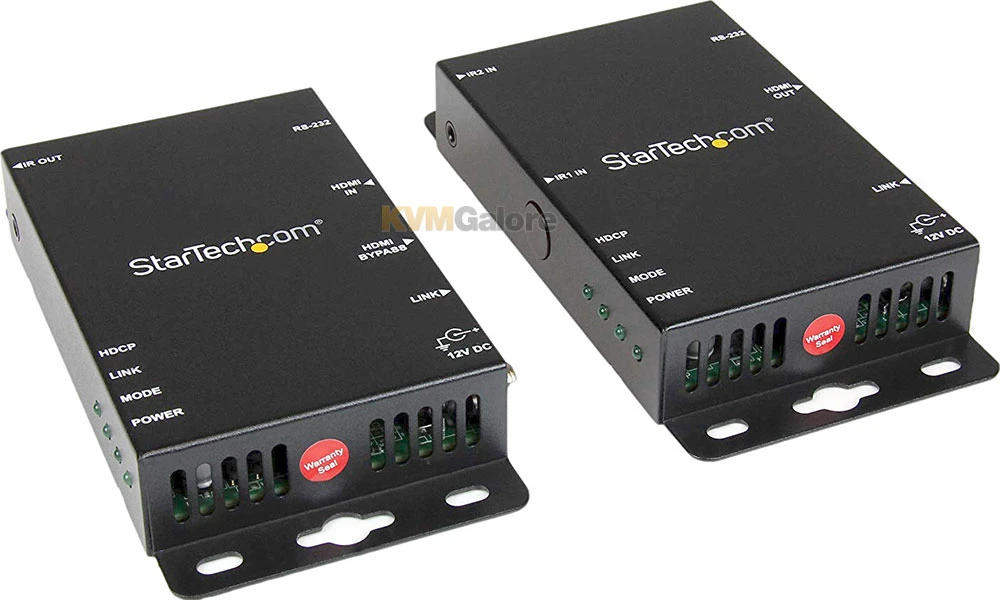

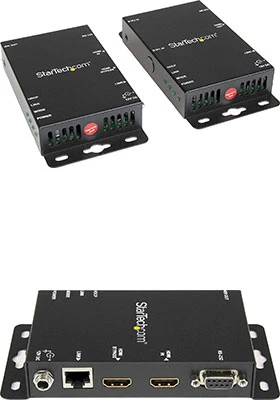

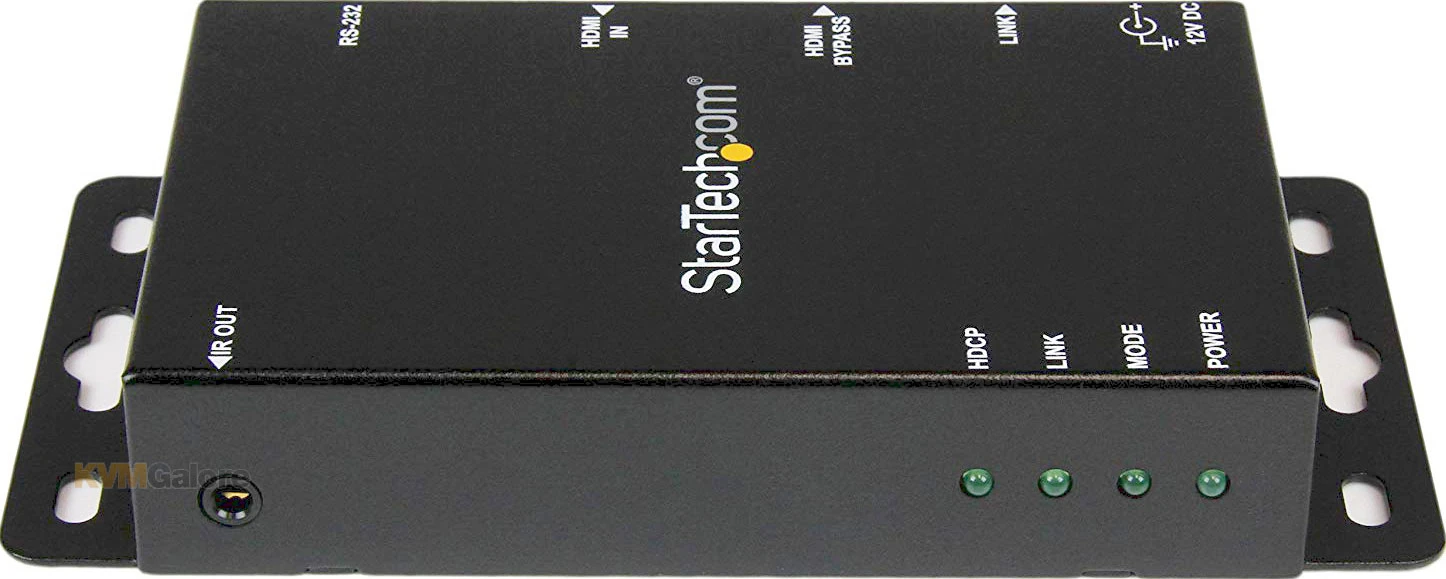

ST121UTPHD2: Extend Ultra-HD/4K HDMI

ST121UTPHD2: Extend Ultra-HD/4K HDMI^® up to 328 feet (100m) over HDBaseT CAT-5e/6 cabling

with serial RS-232 and infrared support

---

• With HDBaseT extend HDMI, IR, and RS-232 through one CAT-5e/6 cable
• Astonishing picture quality with support for resolutions up to Ultra-HD/4K
• Hassle-free installation with a single CAT-5e/6 cable and built-in mounting hardware
• Supports unidirectional RS-232 and IR extension
• Dolby^® TrueHD, DTS-HD MA audio support
• RS-232 interface supports up to 115200bps full-duplex data rate

This TAA-compliant ST121UTPHD2 HDBaseT extender kit, extends HDMI up to 328 feet (100 meters) over a single CAT-5e/6 cable. The extender supports Ultra-HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility the Transmitter and Receiver can be used to transmit IR and RS-232 serial communication over the same cable. The versatility of this video extender makes it an ideal solution for digital signage applications.

Extend More with HDBaseT
The extender offers HDBaseT technology with HDMI, IR, and RS-232 control in a single CAT-5 extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone, HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you operate your display and an IR-enabled source device, such as a Blu-ray player or TV set-top box from either end of your extension. While RS-232 control lets you connect a serial I/O device at your display – an ideal solution for adding a serial touch screen interface to your remote display.

Astonishing Picture Quality from an Impressive Distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.

With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra-HD picture quality, four times the resolution of high-definition 1080p, even at 328 feet away from your video source. Plus, because the extender is still backward compatible with High-Definition 1080p displays and video sources, you can rest assured this extender will make your video source look great in any remote digital signage application.

Simplify Your Setup
This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT-5e or CAT-6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Mounting hardware is also built-in to both the extender and receiver for discrete, professional mounting.

Applications
• Position a display/monitor in a convenient viewing area while the transmitting content over a CAT-5 cable from a cleaner, more secure environment
• Ideal for digital signage applications in financial, educational, medical and business sectors
• Perfect for video conferencing solutions in boardrooms and office settings
• Optimize placement of your demo stations at trade-shows and in auditoriums

The StarTech.com Advantage
• Integrated unidirectional RS-232 and IR interfaces enable you to communicate with, monitor and control your source audio-video device, from either end of the connection
• Support for 4K and full 1080p resolution with accompanying digital audio, which lets you display your content the way it’s meant to be seen and heard

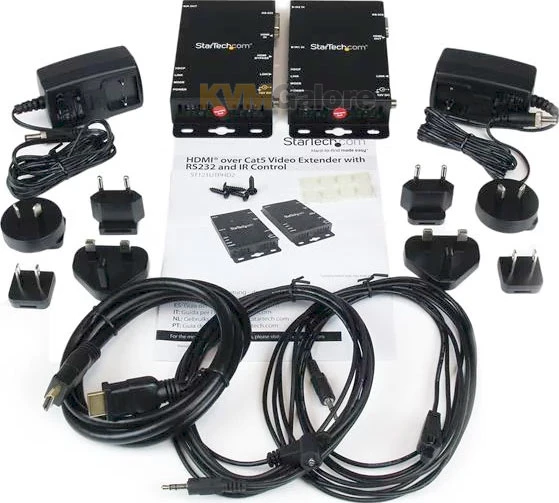

Included in Package
1x Transmitter unit
1x Receiver unit
1x IR receiver cable
1x IR transmitter cable
1x HDMI cable – 4 feet (1.2 m)
2x Universal power adapters
1x User manual
