ST-IPFOUSB4K-R-LCVW: Extend 4K Ultra-HD HDMI Monitor, Audio, USB, RS-232 And Infrared (IR) With Video-wall Support, Local Unit

ST-IPFOUSB4K-R-LCVW: Extend 4K Ultra-HD HDMI monitor, audio, USB, RS-232 and infrared (IR) with video-wall support, local unit

up to 9842 feet (3000 meters) via two LC fiber-optic cables, point-to-point or over Ethernet

---

Note: Local (Transmitter) units are purchased separately

• 4K Ultra-HD 3840×2160 (30Hz)
• 10.2Gbps bandwidth
• HDMI 1.4
• IR, RS232 control

XTENDEX^® 4K HDMI USB KVM extender via fiber provides remote KVM (USB keyboard, USB mouse and 4K Ultra-HD HDMI monitor) access to a USB computer up to 9842 feet (3000 meters) away via a duplex LC singlemode fiber optic cable and 1804 feet (550 meters) using multimode fiber optic cable.

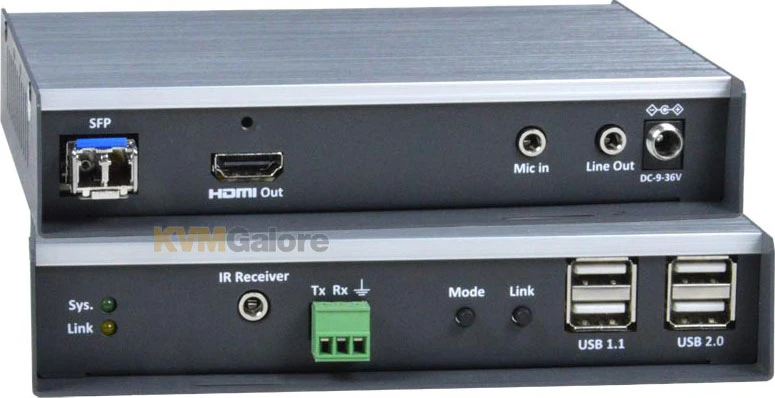

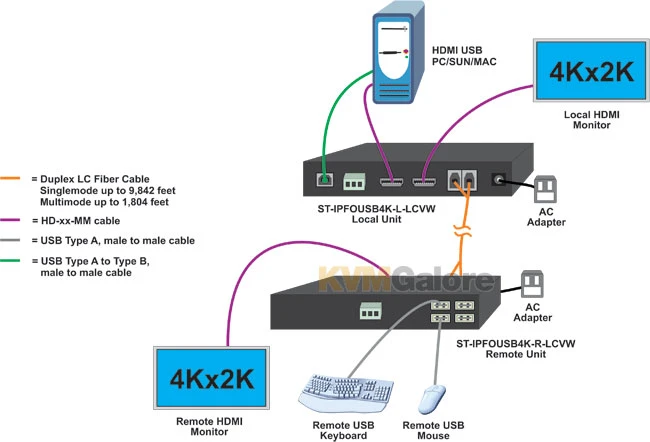

Each KVM extender consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to an HDMI monitor, 3.5mm stereo audio speakers and microphone, RS232, and up to four USB devices (keyboard, mouse, flash drive, HDD, or touchscreen display).

The local and remote units can be connected together for a point-to-point connection via fiber cable, or a point-to-many or many-to-many connection via a managed Gigabit network switch.

HDMI Features Supported
• HDMI 1.4
• x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
• Dolby TrueHD, LPCM 7.1, DTS-HD Master Audio, Dolby Digital, and DTS
• Bandwidth up to 340 MHz (10.2 Gbps)
• Lip Sync

Features and Benefits
• Signal transmission via two-strand singlemode LC fiber optic cable
• Using singlemode 9-micron cable, extend to 9,842 feet (3,000 meters)
• Using multimode 50-micron cable, extend to 1,804 feet (550 meters)
• Supports Ultra-HD 4K resolution to 3840×2160 (30Hz), 2K resolution 2048×1080, HDTV resolutions to 1080p, and up to 1920×1200 (WUXGA)
• HDCP 1.4 compliant
• USB ports for keyboard, mouse, flash drive, HDD or touchscreen display
• Keyboard and mouse are hot-pluggable

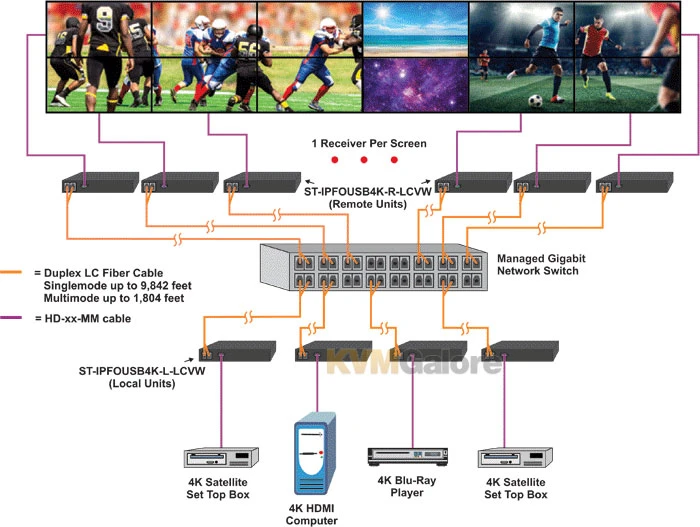

• Supports video wall installations from 1×2 to 8×16 screens
• Displays can be rotated 180 and 270°
• Plug-and-Play installation allows receivers to find the transmitter automatically on the same network (Network configuration may be required for managed network switch)
• Support for Point-to-Many or Many-to-Many connections requires a managed Gigabit network switch with IGMP support and Jumbo frame support
• Manage transmitter/receiver connections and video wall configuration with web interface or network switch that supports VLAN
• Each VLAN group acts as a separate HDMI Over IP Channel on the network
• When using multiple remote units, there are two USB control modes – Exclusive Mode and Sharing Mode
• USB Exclusive Mode: Only one remote unit can have USB control over the source computer at any time
• USB Sharing Mode: Multiple remote units share the control of the source computer
• Up to 5 USB devices will be recognized by the computer
• Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control
• Supports 2-way RS232 commands (control software on a PC, or other automated control system hardware such as Control4 or Crestron) to control devices attached to the extender using RS232
• Customizable EDID table on local unit
• Supports the DDC2B protocol
• Easily expandable – add receivers as you add control stations
• Integrated mounting brackets for easy surface/wall mounting

Package Includes
1x XTENDEX Remote unit
1x 100-240VAC 50/60Hz: 5VDC 2A AC adapter
1x URL slip with path to user manual
