ST-IPFO4K18GB-LC: 4K 18Gbps HDMI, Audio, IR, And RS232 Extender (over IP)

ST-IPFO4K18GB-LC: 4K 18Gbps HDMI, audio, IR, and RS232 extender (over IP)

via one LC Singlemode/Multimode fiber-optic cable

---

• Transmitter and receiver set
• Extend an Ultra-HD 4K 60Hz 4:4:4 HDMI display via fiber
• Broadcast real-time HDMI signals to multiple display locations with a 10G SFP network switch
• Extend up to 24.8 mi (40 km) via one LC Singlemode cable
• Extend up to 1,640 feet (500 m) via one LC Multimode cable
• Buffered HDMI input loop-through
• Use with cascaded Ethernet network switches to extend the length
• Zero latency
• Supports point-to-point, point-to-many, and many-to-many connections

XTENDEX^® 4K 18Gbps HDMI extender over IP via fiber-optic cable locates an Ultra-HD 4K 60Hz 4:4:4 HDMI display, audio, IR, and RS232 up to 24.8 miles (40 kilometers) away from an HDMI source using a single LC singlemode fiber-optic strand or 1,640 feet (500 meters) using LC multimode fiber-optic cable.

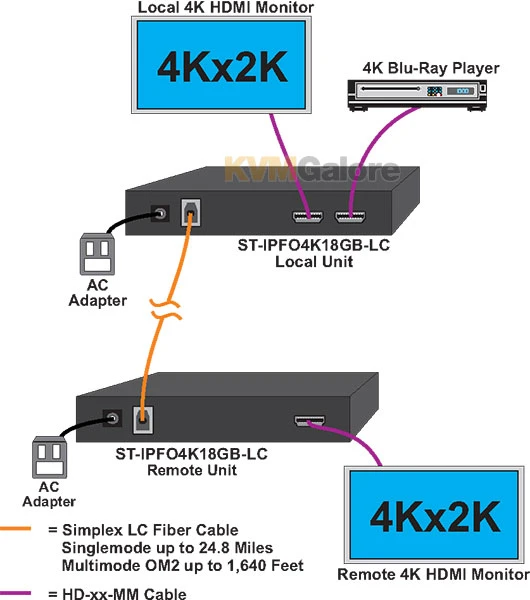

Each 4K 18Gbps HDMI extender consists of a local unit that connects to an HDMI source and a local display via the HDMI loop output, and a remote unit that connects to an HDMI display.

The local and remote units can be connected together for a point-to-point connection via fiber-optic cable.

Support for multiple transmitters (many-to-many connection) requires a managed 10G SFP network switch with IGMP support and Jumbo frame support (standard LAN switches can only support one transmitter).

For a point-to-many connection, a standalone network with an unmanaged 10G SFP Ethernet switch, hub, or router can be used (instead of a managed SFP network switch).

Support for multiple transmitters requires a managed 10G SFP network switch.

The managed 10G SFP network switch must support port-based IEEE 802.1Q VLAN. Each VLAN acts as a separate HDMI over IP channel on the network. Each VLAN channel supports one transmitter. The number of local and remote units that can be used is dependent on the backplane bandwidth of the switch.

Signal transmission via single-strand LC fiber-optic cable
• Using singlemode 9-micron cable, extend to 24.8 miles (40 km)
• Using 50-micron OM2 (or better) multimode cable, extend to 1,640 feet (500 meters)

Supported HDMI features
• HDMI 2.0
• 8-bit, 10-bit, and 12-bit Deep Color
• Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 7.1CH, DTS 5.1, and DTS:X
• RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
• Bandwidth up to 600 Mhz (18Gbps)
• 3D (1080p @ 60Hz)
• Support for CEC (consumer electronic control) compatible devices
• HDR10
• ARC

Features and Benefits
• Supports Ultra-HD 4Kx2K resolution to 3840×2160 and 4096×2160 @ 60Hz YUV 4:4:4, HDTV resolution to 1080p @ 60Hz, and up to 1920×1200 (WUXGA)
• Cascade network switches to extend the length longer distances – up to 12 switches can be cascaded
• Easily expandable – add remote units as you add monitors (up to 255 receivers supported)
• HDCP 2.2 and 1.4 compliant
• Supports local and remote HDMI displays
• Plug and play installation allows receivers to find the transmitters automatically on the same subnet
• Local and remote units must be in the same LAN (the units do not support WAN connections)
• Built-in default EDID table
• Supports full-duplex RS232 up to 115200 baud
• Bi-directional IR control from input and output locations
• Supports HDMI embedded digital audio and ARC audio extraction via Toslink connection
• Built-in surge and ESD protection
• Mounting brackets included for easy surface/wall mounting

Package Content

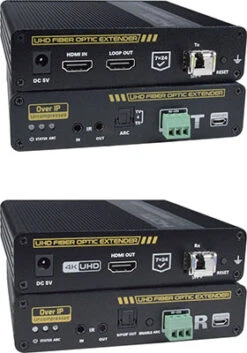

1x Local (Transmitter) unit
1x Remote (Receiver) unit
1x T1270/R1330nm 10G Base-T SFP module
1x T1330/R1270nm 10G Base-T SFP module
1x IR emitter
1x IR receiver
2x Power supplies
2x Mounting brackets
