ST-C6USBDP4K-328: 4K Ultra-HD @ 30Hz 4:4:4 DisplayPort USB KVM Extender

ST-C6USBDP4K-328: 4K Ultra-HD @ 30Hz 4:4:4 DisplayPort USB KVM extender

extends DisplayPort video, audio, USB keyboard/mouse, and RS232 up to 328 feet away, using HDBaseT technology

---

• Extend 4K Ultra-HD @ 30Hz to 328 feet and 1080p to 492 feet
• Transparent USB 2.0 extension
• RS232 extension

XTENDEX^® 4K DisplayPort USB KVM extender over HDBaseT transmits uncompressed digital Ultra-HD 4K @ 30Hz 4:4:4 DisplayPort signal, transparent USB and RS232 up to 328 feet over a single CATx cable using HDBaseT technology.

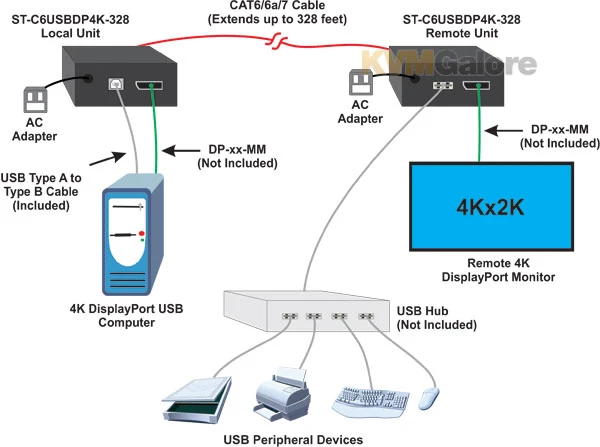

Each extender consists of a local unit that connects to a computer, and a remote unit that connects to an Ultra-HD DisplayPort display and USB 2.0 device.

Supported DisplayPort Features
• DisplayPort 1.2a
• 48-bit Color
• RGB, YCbCr 4:4:4
• LPCM, Dolby TrueHD, and DTS-HD Master Audio
• 3D

Features and Benefits
• Transmits an uncompressed high speed DisplayPort signal over one CAT-6/6a/7 cable
• Supports Ultra-HD 4K resolution to 3840×2160 and 4096×2160 @ 30Hz YUV 4:4:4, and HDTV resolution to 1080p @ 60Hz
• Extend 4K up to 328 (100 meters) feet over a CAT-6/6a/7 cable
• Extend 1080p up to 492 (150 meters) feet over CAT-6/6a/7 cable
• HDCP compliant
• USB 2.0 port supports fully transparent USB connection
• Extend a USB device such as a keyboard, mouse, game controller, USB flash drive, touch screen monitor, whiteboard, etc.
• Compliant with USB 2.0 (low/full/high speed) standards
• Use a USB hub to extend multiple USB devices
• Supports full-duplex RS232 at 115200 baud
• Integrated mounting brackets for easy surface/wall mounting

In th Box
1x Local unit
1x Remote unit
2x 100-240VAC, 50 or 60Hz-5VDC/2A AC power adapters
1x USB Type-A male to USB Type-B male cable
1x DB9 male to 3.5mm cable
1x DB9 female to 3.5mm cable
1x Mounting hardware
1x URL slip with path to user manual
Video cables are not included

Required video cables (between the source/transmitter and the display/receiver)
DisplayPort, male-male
