ST-C5KVM-600: PS/2 KVM Extender Via CAT-5

ST-C5KVM-600: PS/2 KVM extender via CAT-5

extend control up to 600 feet from PC or NTI switch with no loss of signal

---

XTENDEX^® KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or a KVM switch up to 600 feet using CAT5/5e/6 UTP cable.

XTENDEX^® KVM extender improved features and options include local access for both the local and remote user.

XTENDEX^® KVM extender is ideal for situations where a control station is located in an unsecured area or where equipment damage can occur, such as shop floors and loading docks.

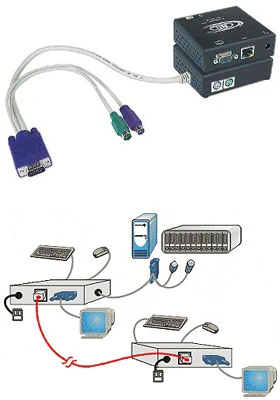

Each KVM extender consists of a local unit connected to a server or the outputs of a KVM switch (with connections for local console access), and a remote unit connected to a keyboard, monitor and mouse (or the inputs of a KVM switch). The local and remote units are connected via CAT-5/5e/6 UTP cable.

Features and Benefits
• Sharpest and clearest VGA quality over CAT-5 of any manufacturer
• Supports two users: one local and one remote
• Local unit provides local KVM access
• Supports resolutions to 1920×1440
• Allows local and remote access to network servers
• Built-in surge protection
• Optional external surge protection available
• Optional local unit supporting two remote users available – extend two remote units up to 600 feet
• Keep-alive keboard/mouse emulation for flawless operation
• Use in-house CAT-5 wiring to locate a keyboard, monitor and mouse remotely
• Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor
