ST-C5KVM-300: PS/2 KVM Extender Via CAT-5

ST-C5KVM-300: PS/2 KVM extender via CAT-5

extend control up to 300 feet from PC or NTI switch with no loss of signal

---

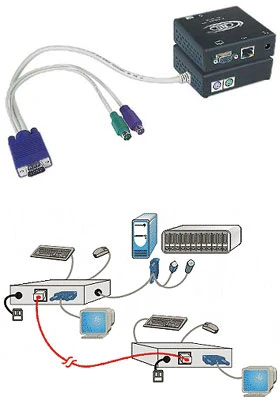

XTENDEX^® KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or a KVM switch up to 300 feet using CAT-5/5e/6 UTP cable.

XTENDEX^® KVM extender is ideal for situations where a control station is located in an unsecured area or where equipment damage can occur, such as shop floors and loading docks.

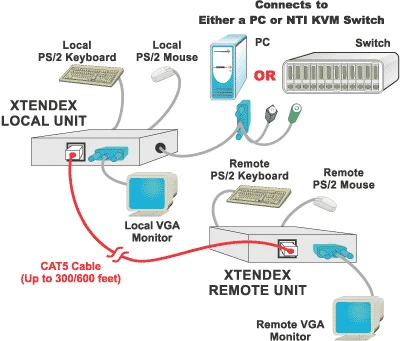

Each KVM extender consists of a local unit connected to a server or the outputs of a KVM switch (with connections for local console access), and a remote unit connected to a keyboard, monitor and mouse (or the inputs of a KVM switch). The local and remote units are connected via CAT-5/5e/6 UTP cable.

Features and Benefits
• Supports two users: one local and one remote
• Supports resolutions up to 1920×1440
• Local unit provides local KVM access
• Built-in surge protection
• Allows local and remote access to network servers
• Continuous manual adjustment of video signal quality
• Small, durable form factor increases desk and floor space
• Keep-alive keboard/mouse emulation for flawless operation
• Easy to install and use
• Computers remain protected from moisture, vibration, temperature extremes, electro-magnetic fields, and theft
