Single 8K DisplayPort or Dual 4K DisplayPort/HDMI Video, Thunderbolt 3 docking Station

Single 8K DisplayPort or dual 4K DisplayPort/HDMI video, Thunderbolt 3 docking station

5x USB ports, headset support, Gigabit LAN and 100W Power Delivery

---

• Thunderbolt 3 docking station with USB-C compatibility
• Dual monitor 4K 60Hz
• 5x USB ports (including 2x fast-charge ports) [3x USB Type-A; 2x USB Type-C]• Gigabit Ethernet
• Headset support
• 100W peak Power Delivery (96W sustained)
• Charge high performance laptops, Ultrabooks and laptop computers such as MacBook Pro 16, HP, Lenovo ThinkPad and Dell XPS
• Dual DisplayPort 1.4 with DSC (single 8K 30Hz) or dual HDMI 2.0 video outputs
• Options for dual DisplayPort, dual HDMI, or DisplayPort + HDMI displays at dual 4K 60Hz on both Thunderbolt 3 and USB-C laptops
• Works with both Thunderbolt 3 Macbooks and Windows with Thunderbolt 3 and USB-C like Dell, HP, and Lenovo
• Supports extended dual displays on MacBook Pro/Air with Intel processor and single display with Apple M1 Chip
• Automatic drivers
• Thunderbolt 3 host cable included
• Mounting holes for optional bracket
• K-slot for security lock
• Connectivity Tools application provided with this device the improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout and Wi-Fi Auto Switch utilities

Expansion Ports
1x USB Type-A (USB 3.2 Gen 2, 10Gbps)
2x USB Type-A (USB 3.2 Gen 1, 5Gbps)
2x USB Type-C (USB 3.2 Gen 2, 10 Gbps)
2x HDMI
2x DisplayPort
1x RJ-45 (wired Gigabit Ethernet)
1x 3.5mm (headphone/speakers and microphone)

A high-performance Thunderbolt™ 3 certified docking station with USB Type-C^® compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 hub with 2x BC 1.2 fast charging ports, gigabit Ethernet and headset ports.

Flexible Dual Display Outputs
This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:
• DisplayPort + DisplayPort
• HDMI + HDMI
• DisplayPort + HDMI

Resolutions and video outputs are host-dependent

More Downstream USB Ports
Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:

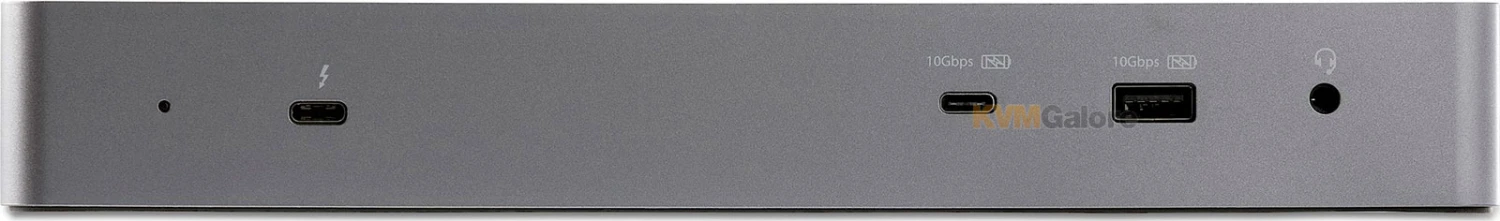

Front Facing
1x USB Type-C (USB 3.2 Gen 2, 10 Gbps) with 15W (3A, 5V) Charging
1x USB Type-A (USB 3.2 Gen 2, 10 Gbps) with B.C. 1.2 Fast-Charging
Back Facing
2x USB Type-A (USB 3.2 Gen 1, 5 Gbps)
1x USB Type-C (USB 3.2 Gen 2, 10 Gbps)

Easy to Set Up and Manage
This universal Thunderbolt 3 / USB-C dock has an automatic driver setup and includes a long 2.6 foot (0.8 m) Thunderbolt 3 host cable, front-facing Thunderbolt 3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock and MAC address changer utility.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: To setup and save custom windows layouts
• Mac Address Pass-Through Utility: To improve network security
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN

Included in Package
1x Docking Station
1x Universal Power Adapter
2x Power Cords (NA/JP, ANZ)
1x Thunderbolt 3 Host Cable (2.6 feet / 80 cm)
1x User Manual
