Secure, 4-port KM (keyboard/mouse) Switch

Secure, 4-port KM (keyboard/mouse) switch

with cursor navigation switching

---

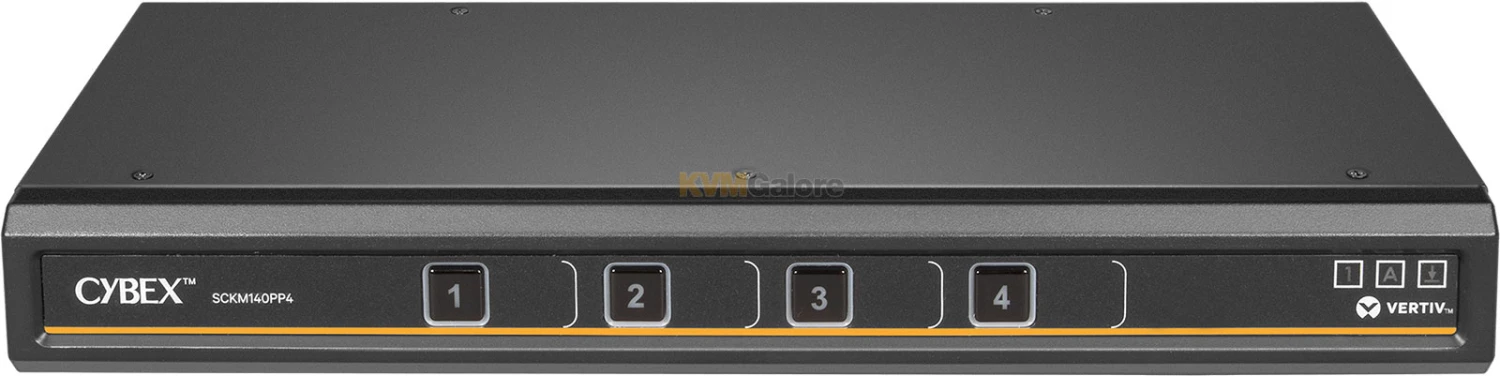

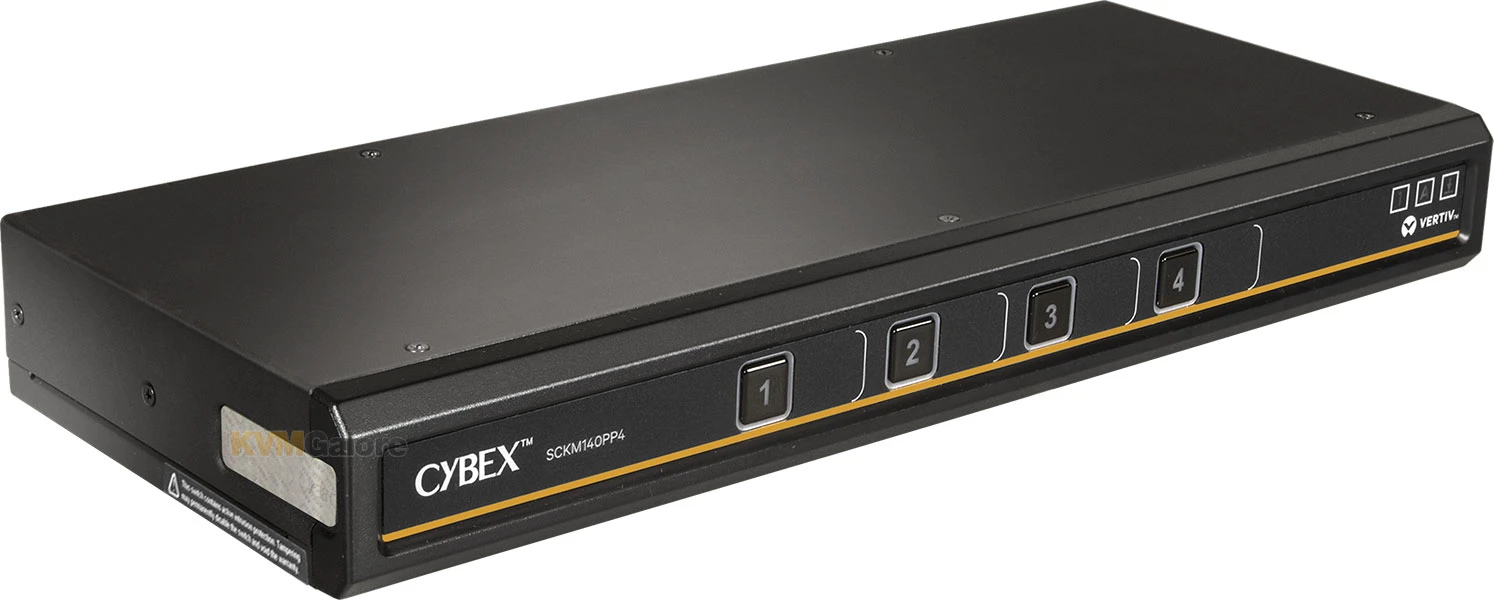

Vertiv™ Cybex™ SCKM140 is a 4-port secure USB keyboard/mouse (KM) switch that enables users to control up to 4 computers with a single keyboard and mouse.

Vertiv Cybex SCKM140 is ideal for environments where monitoring and managing of multiple computers, covering various degrees of secure data is required.

Vertiv Cybex secure KM switching solutions offer special support for government agencies and security conscientious organizations.

Through cursor navigation switching (CNS), users have the flexibility to manage and monitor their data by simply pressing the left CTRL key and moving their mouse across window borders.

Security
Designed to meet the latest Protection Profile for Peripheral Sharing Device version 4.0, users are receiving the most up to date technology in a secure KM.
SCKM140 secure KM switch meets or exceeds these requirements with the following capabilities:
• Unidirectional Optical Data Diodes – Data can only flow in one direction
• Active Intrusion Detection and Tamper-Evident Labels – Ensures hardware has not been compromised

Flexibility
Vertiv Cybex secure KM switch provides users flexibility when it comes to switch control:
• Maintain visibility to all computers with directly connected displays
• Easily switch from one connected computer to another using CNS

Features and Benefits
• Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
• Isolated switch ports provide discrete processing paths to each computer
• Secure zero-lag KM switching to computers on different security classifications
• Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
• Eliminate the need for multiple keyboards and mice
• Ease of setup and use
• Button LEDs can be customized for enhanced channel identification
• Always-on active anti-tampering system, and heavy-duty tamperresistant enclosure with holographic tamper evident seals
• Active intrusion detection and tamper-evident holographic labels prevent hardware from being compromised
• Vertiv patented keyboard lock status indication
• Eliminates the need for multiple peripheral devices
• Alleviate workspace clutter
• Prevents information leaks, transfer or crosstalk between adjacent ports and filters ultrasonic audio frequencies via unidirectional optical data diodes (UODD)

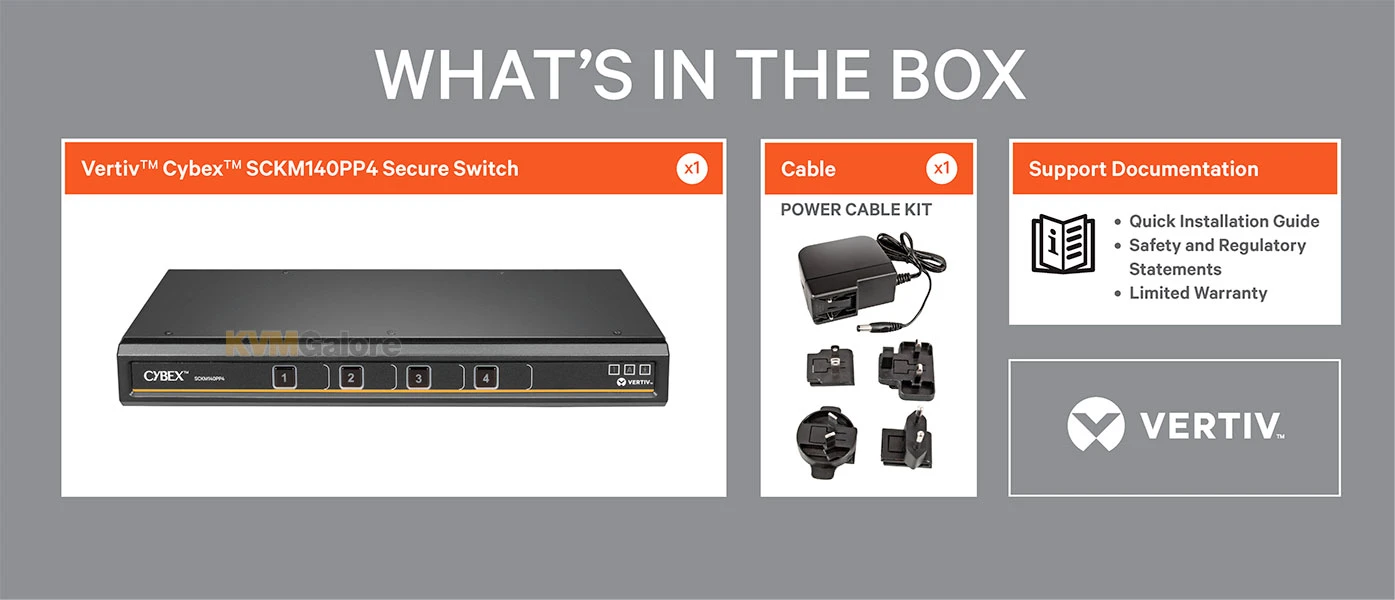

In the Box
1x SCKM140 KM (keyboard/mouse) switch
1x Power cable kit
Cables are not included

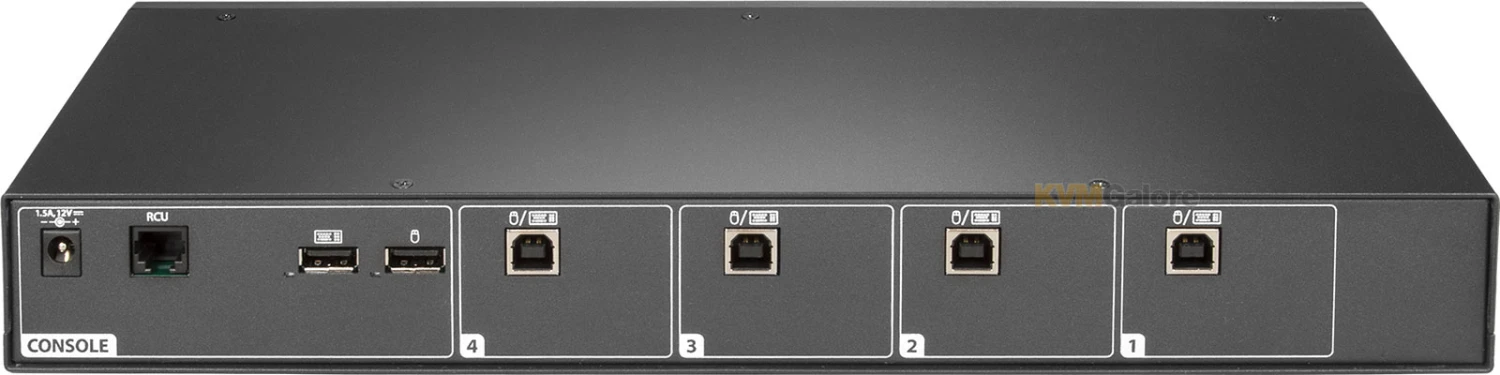

Required Cables (per port)
1x USB, Type-A to Type-B (keyboard/mouse)
