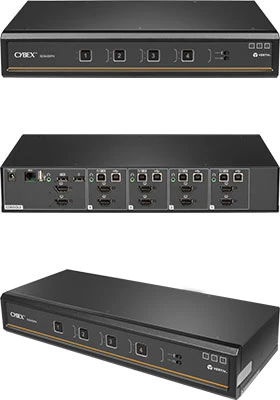

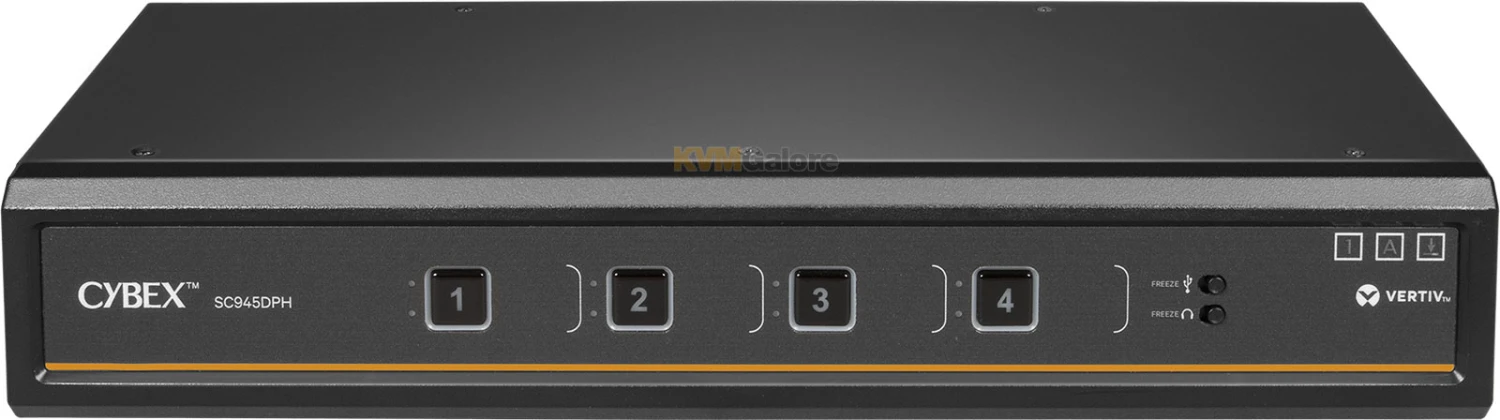

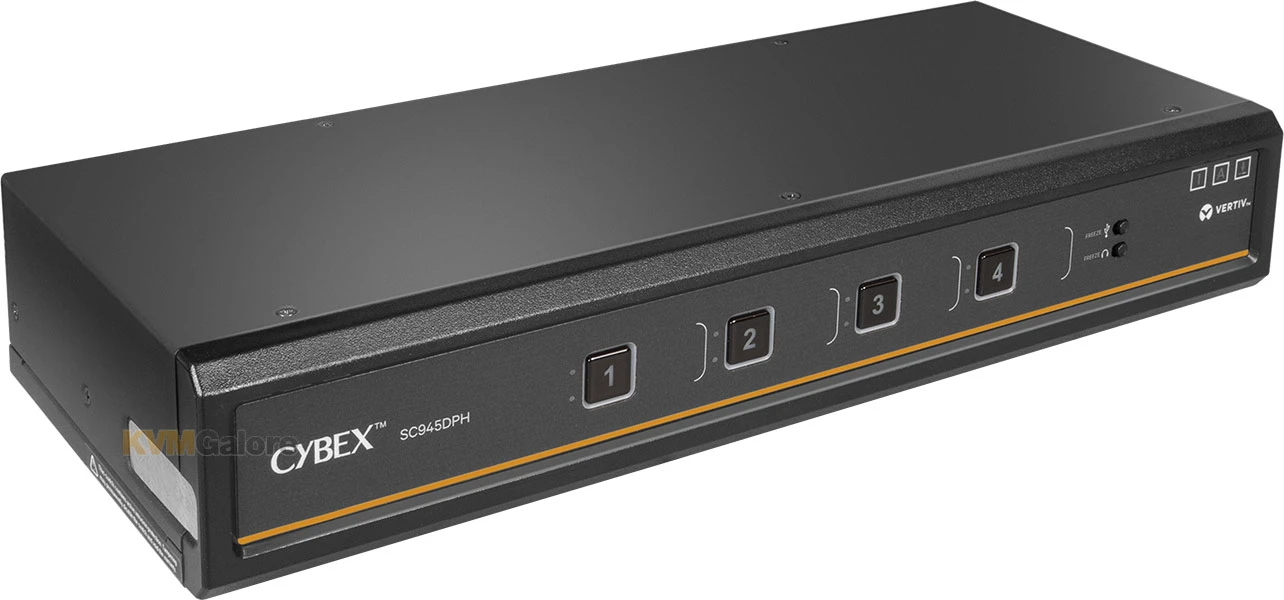

Secure, 4-port, 4K, Dual-view HDMI* And/or DisplayPort* KVM Switch

Secure, 4-port, 4K, dual-view HDMI* and/or DisplayPort* KVM switch

with a dedicated peripheral port (DPP), NIAP Common Criteria Protection Profile for Peripheral Sharing Device version 4.0 certified

---

Vertiv™ Cybex™ secure KVM switch enables a keyboard/dual-video/mouse plus audio console to be shared between up to 4 HDMI* and/or DisplayPort* computers with different classification levels.

Vertiv Cybex secure KVM switch is specifically designed to enforce stringent desktop security by keeping sensitive assets isolated while providing advanced user data protection and flexible administrative security management features. It is suitable for deployment in any industry that needs to handle sensitive, confidential, or proprietary information, or implement multi-level security on separate networks, such as government and military agencies, healthcare providers, banking and finance institutions, and more.

Vertiv Cybex secure DPH KVM switch is field-proven solutions with special support for government agencies and security conscientious organizations.

Vertiv Cybex secure KVM switch is ideal for environments where monitoring and managing of multiple computers, covering various degrees of secure data is required.

Security
Designed for the latest Protection Profile for Peripheral Sharing Devices version 4.0, users are receiving the most up to date technology in a secure KVM switch.
Vertiv Cybex secure KVM switch meets or exceeds these requirements with the following capabilities:
• Unidirectional optical data diodes – data can only flow in one direction
• Protected video display emulators – eliminates potential data leakage from display to computer
• Dedicated peripheral port (DPP) – secure connection to external USB authentication devices
• Active intrusion detection and tamper-evident label – ensures hardware has not been compromised

Flexibility
Vertiv Cybex secure KVM switch provides users flexibility when it comes to video connection and switch control.
• Universal video port – supports DisplayPort* or HDMI* video connections natively (no adapters)
• Freeze DPP channel – independently locks DPP channel to a specific computer
• Freeze audio channel – independently locks the audio channel to a computer

Features
• Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
• Universal video connectors – supports either HDMI* or DisplayPort* on the same physical video input and output ports (DVI-D supported with HDMI-to-DVI-D cable)
• Unidirectional data flow of keyboard, mouse, video, and audio
• Isolated switch ports provide discrete processing paths to each computer
• Native video supports up to Ultra-HD 4K at 60Hz
• Touch screen support (requires a Secure USB HID Filter – see listing below)
• Smart-card (CAC) or biometric readers for authentication on any attached computer
• Eliminate the need for multiple hardware resources, such as monitors, keyboards, mice, and cables
• Button LED colors can be customized for enhanced channel identification
• Always-on active anti-tampering system, and heavy-duty tamperresistant enclosure with holographic tamper evident seals

Benefits
• Universal video connectors to support DisplayPort*, HDMI*, and DVI-D
• Active intrusion detection and tamper-evident holographic label prevents hardware from being compromised
• Vertiv patented keyboard lock status indication
• Eliminates the need for multiple peripheral keyboard, mouse, and display devices
• Alleviate workspace clutter
• Prevents information leaks, transfer or crosstalk between adjacent ports and filters ultrasonic audio frequencies via unidirectional optical data diodes (UODD)

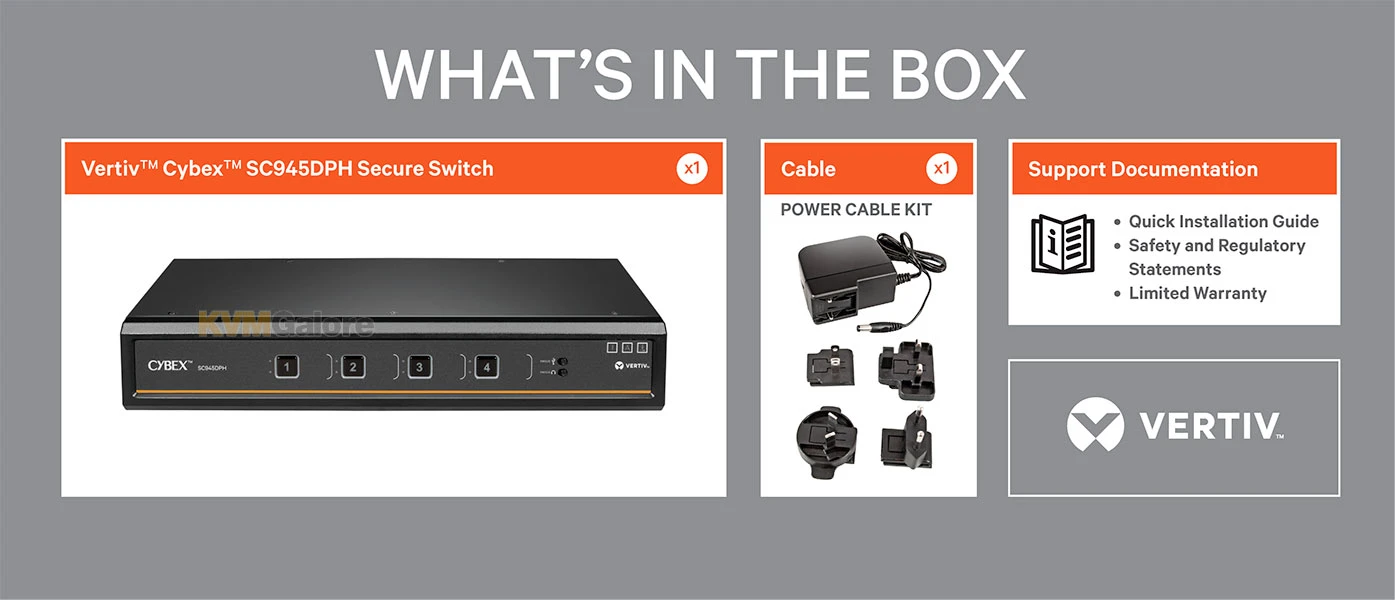

Package Includes
• SC945DPH switch
• Power cable kit
• Cables are not included

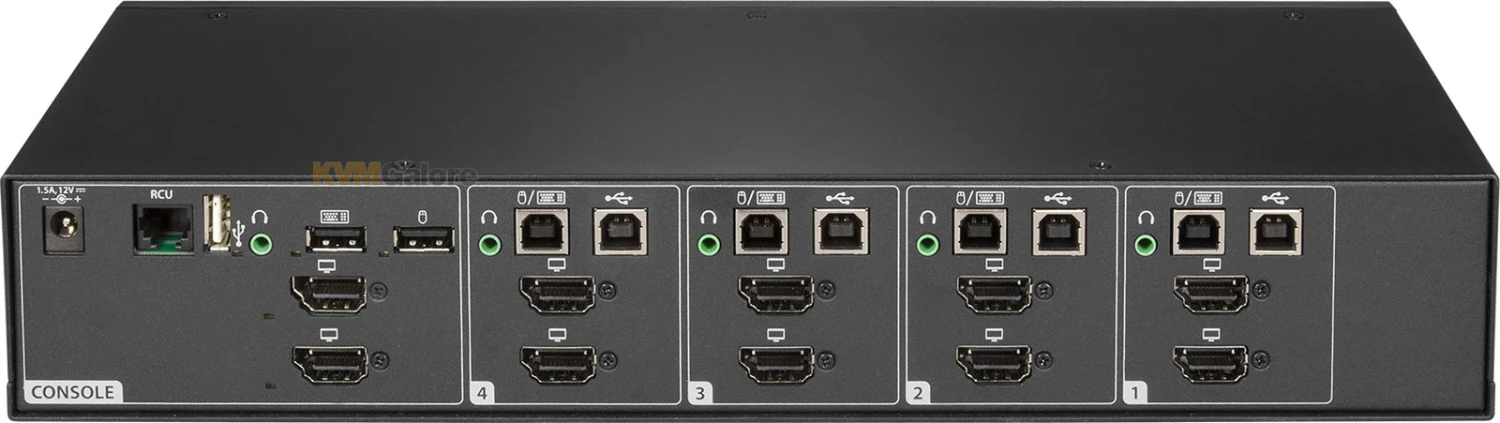

Required Cables (per port)
2x HDMI, male-male or 2x DisplayPort, male-male
2x USB, Type-A to Type-B
1x Audio, 3.5mm, male-male

* Notes
1) Each connected computer’s video interface may be either HDMI or DisplayPort*.
2) One computer may use an HDMI video connection to the switch while another computer may use a DisplayPort* video connection.
3) Only one video connection per computer is supported.
4) Connected monitor may have either HDMI or DisplayPort* video connection.
5) Only one video connection to one monitor is supported.
