GTV-HDMI1.3-441N: Switch Between Any Of Four HDMI Inputs To One HDMI Output

GTV-HDMI1.3-441N: Switch between any of four HDMI inputs to one HDMI output

with RS232 control

---

GefenTV 4×1 Switcher for HDMI with RS232 switches between any of four Hi-Def sources to one HDTV display.

Resolutions up to 1080p Full HD with multichannel digital audio are supported.

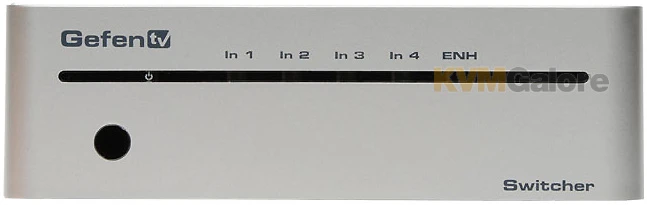

The front panel LEDs show the currently selected source. This 4×1 Switcher has an auto-switching feature: If a new source is connected or turned on, the Switcher will automatically switch to that input. The 4×1 Switcher will revert to the previous input once the current device is turned off or disconnected.

Any of the four Hi-Def sources can be selected by the push-button, IR remote control, or using the RS-232 control.

This device is fully HDCP-compliant.

Supported HDMI 1.3 Features
• 225 MHz (up to 12 bit YUV 444 @ 1080p)
• Deep Color
• Dolby TrueHD and DTS-HD Master Audio
• 3DTV Pass-Through
• Lip-Sync Pass-Through
• CEC Pass-Through

How It Works

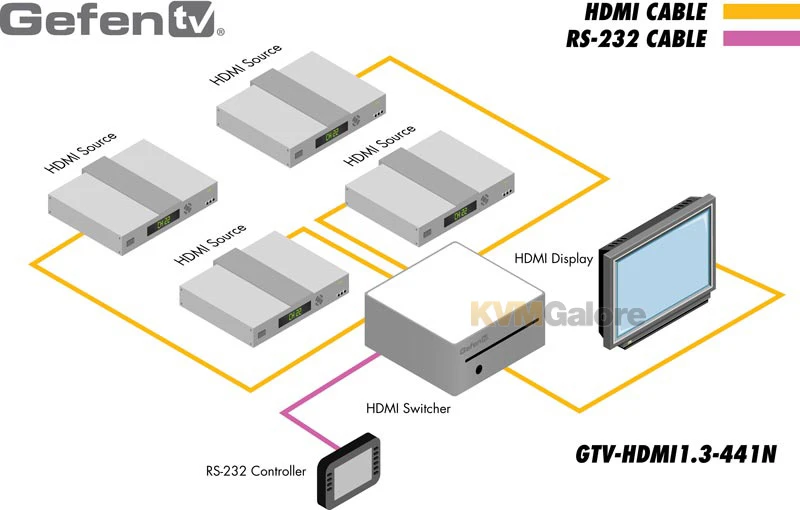

Connect up to four HDMI sources to the GefenTV 4×1 Switcher for HDMI with RS232 using the supplied cables. Connect the HDTV display to the HDMI output. Connect the 5V power supply to the 4×1 Switcher. Apply power to the source devices and the display. The Hi-Def source is displayed and will follow the current switching selection.

Features and Benefits
• Supports resolutions up to 1080p Full HD and 1920×1200
• Supports 3DTV Pass-Through
• Supports LPCM 7.1 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
• Local Switching / Auto-Switching feature
• RS-232 control
• IR remote control
• Supports DVI sources and DVI displays with an HDMI-to-DVI adapter
• Energy Star Compliant

Package Includes
(1) GefenTV 4×1 Switcher for HDMI with RS232
(4) 6 ft. HDMI cables (M-M)
(1) 6 ft. Serial DB9 cable (M-F)

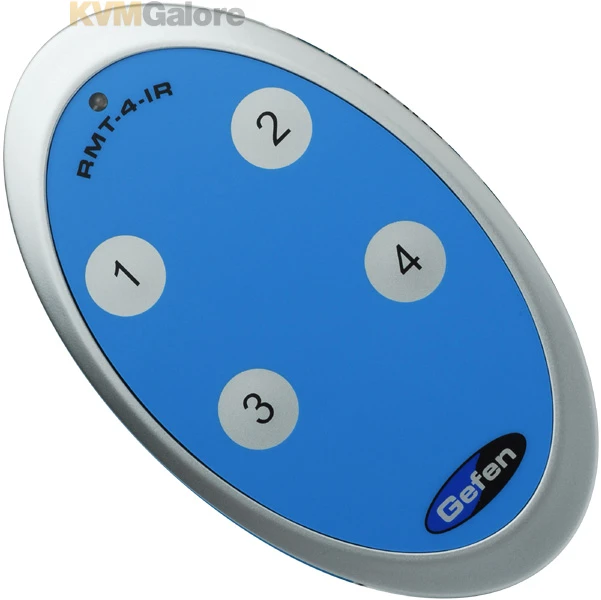

(1) IR Remote Control
(1) 5V DC Power Supply
(1) User Manual
