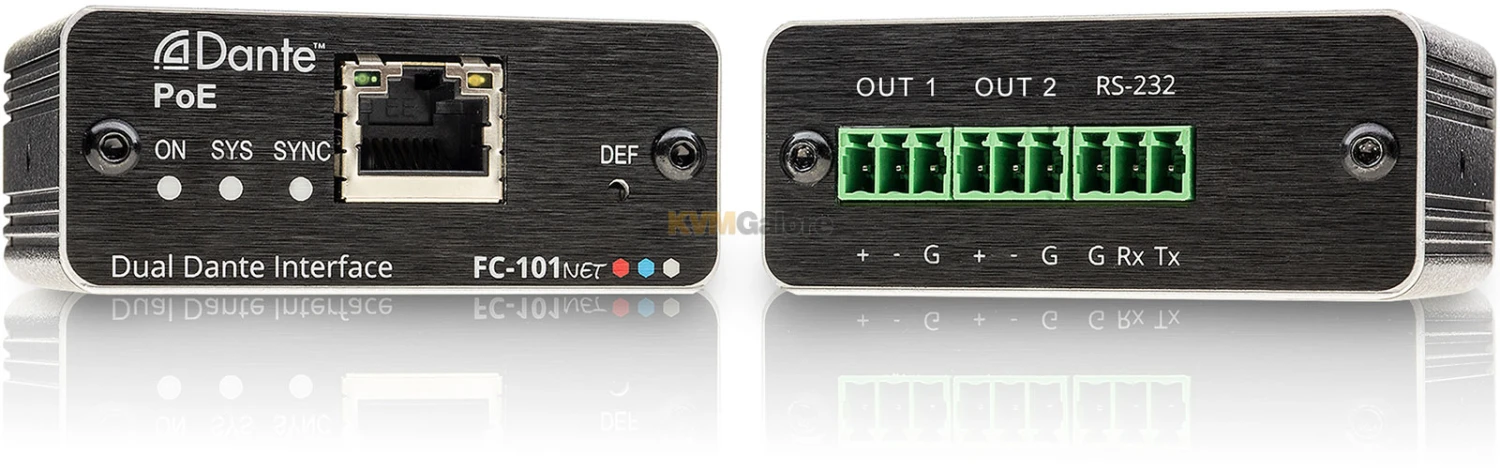

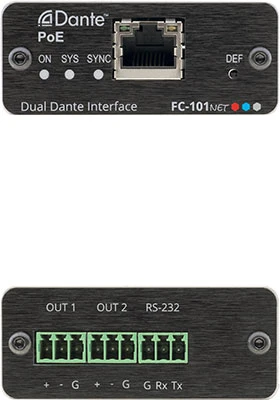

FC-101Net: 2-channel Dante Decoder

FC-101Net: 2-channel Dante decoder

Note: Encoder units are purchased separately

---

• PoE acceptor
• Output volume control
• Control – Dante IP control matrix and Kramer Protocol 3000
• AES67 support

FC-101Net is a compact 2-channel Dante™ decoder with 2 balanced mono audio outputs on 3-pin terminal blocks. It enables connecting non-Dante devices, such as amplifiers and powered speakers, to a Dante network and enables volume control.

FC-101Net is powered over Ethernet from any standard PoE providing network switch.

FC-101Net provides exceptional quality and advanced and user-friendly operation.

Exceptional Quality
• Professional, Studio Grade Signal Conversion Technology – Includes the latest generation 32-bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96kHz
• Dante Network Interface
• PoE Acceptor

Advanced and User-friendly Operation
• Output Volume Control
• Versatile Control – Via the Dante IP control matrix and Kramer Protocol 3000 via RS-232 connection

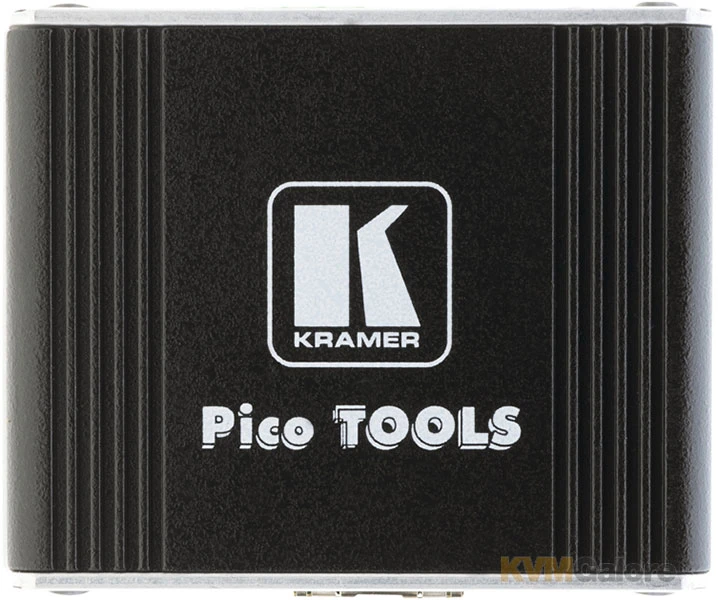

• Easy Installation – Single twisted-pair cable for signal and power wiring. Compact PicoTOOLS^® fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the recommended rack adapter

Typical Applications
• Classrooms
• Retail
• Small to mid-size meeting rooms
• Boardrooms

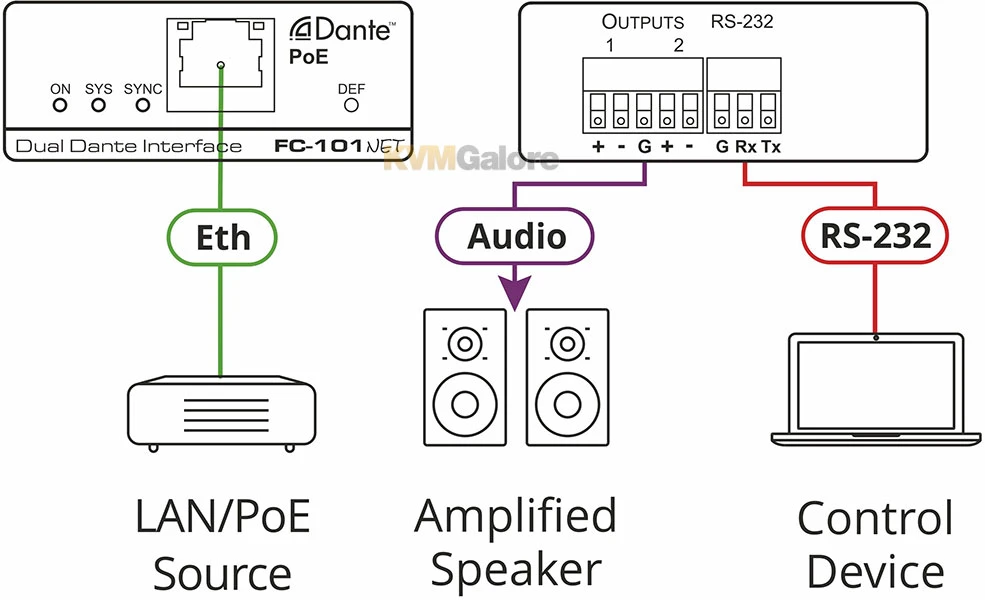

Controlling your FC-101Net
• By RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller
• Via the Dante IP control matrix

More Features and Benefits
• Interoperability – Supports AES67 and Dante allowing high-performance interoperability between IP-based audio networking systems

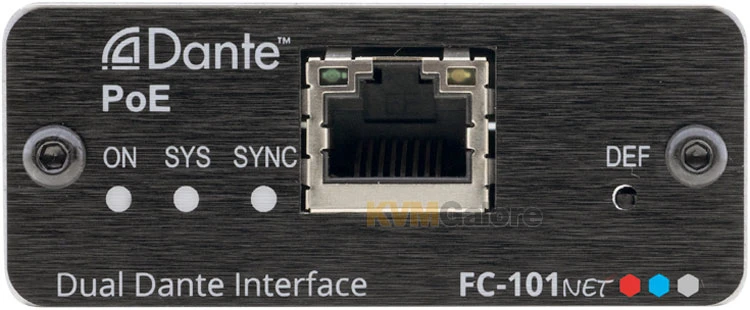

• Input – 2 Dante channels on an RJ-45 connector

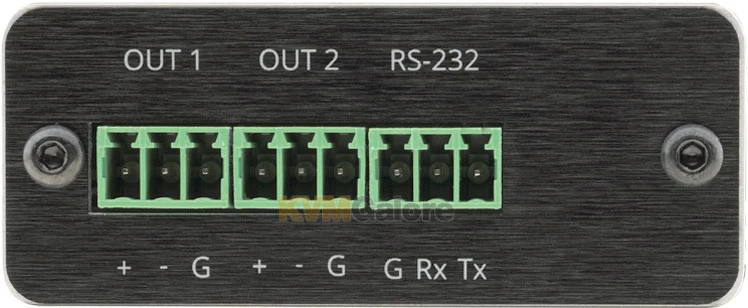

• Outputs – 2 balanced mono audio on a 3-pin terminal blocks

Included Accessories
• Bracket set
• Double-sided adhesive dual lock tape
