EXT-UHDV-HBTLS-TX: Auto-switch 4K Ultra-HD HDMI And VGA

EXT-UHDV-HBTLS-TX: Auto-switch 4K Ultra-HD HDMI and VGA

scale, and extend up to 230 feet over a single CAT-5

---

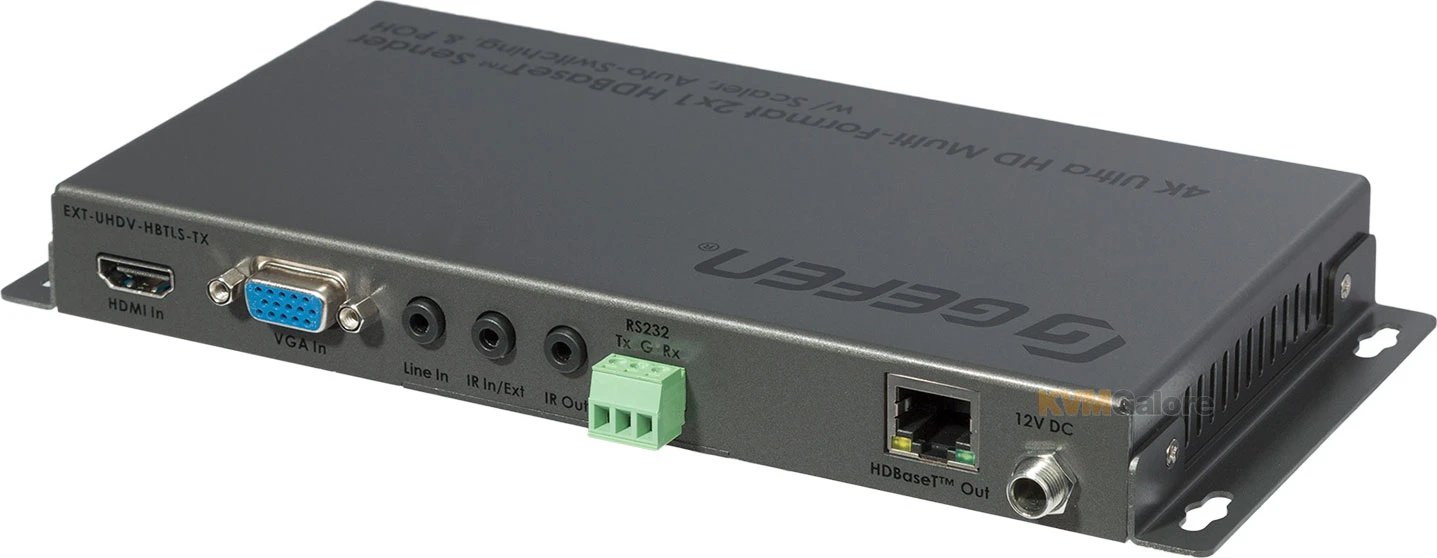

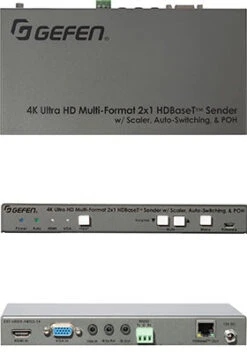

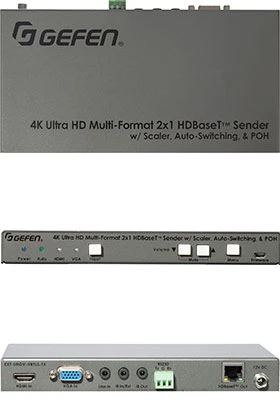

Gefen EXT-UHDV-HBTLS-TX is a high-performance solution in a compact easy-to-install enclosure for switching 4K Ultra-HD HDMI and VGA inputs, and extending them up to 230 feet at 1080p and 130 feet at 4K, over a single CAT-5e cable.

Switching between the HDMI and VGA can be set to Automatic or be done manually via the front panel button or RS-232.

Its HDMI input supports 18 Gbps of data and 600 MHz TMDS Clock frequency, accepting full spec HDMI 2.0 to 4K Ultra-HD (3860×2160) and 4K Cinema-DCI (4096×2160), at 60Hz 4:4:4 with HDCP 2.2 and 1.4.

The HDBaseT™ extension system supports 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency, and resolution/timing up to 4K 30Hz 4:4:4. It uses Gefen’s implementation of the HDBaseT™ technology with enhancements including advanced EDID management.

Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ are passed through from the HDMI input to output.

The VGA input features a companion L/R analog audio input, and accepts VESA and CEA resolutions up to WUXGA (1920×1200 to 60Hz, 4:4:4) and 1080p Full HD (1920×1080 at 60Hz, 4:4:4).

A powerful built-in scaler can upscale lower resolution VGA signals with legacy aspect ratio to widescreen WUXGA, ensuring stunning presentations and smooth switching transitions between the HDMI and the VGA sources.

EXT-UHDV-HBTLS-TX extends RS-232 and 2-way IR when used with a compatible Receiver unit such as the Gefen EXT-UHDA-HBTL-RX, facilitating the control of A/V sources placed near the Sender from the viewing location, and sending commands from the head end to control the display or another device placed near the Receiver unit. It also accepts RS-232 commands for switching, scaler controls, and EDID management from a third-party controller placed near the Sender or remotely by the Receiver.

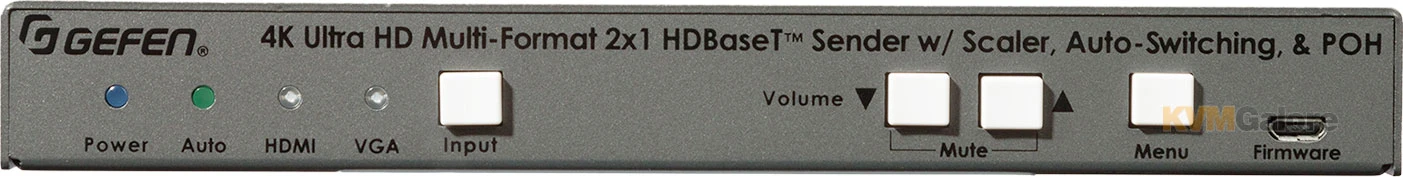

Audio volume can be adjusted or muted via the front panel buttons or RS-232 commands from a third-party controller, a very useful tool for presentations in corporate, educational, and institutional installations.

Bi-Directional HDBaseT™ standard PoH (power over HDBaseT™) technology can supply power remotely from the EXT-UHDV-HBTLS-TX to a compatible Receiver unit, or it can pass power from a compatible Receiver unit to this Sender, using the same CAT-5 cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display.

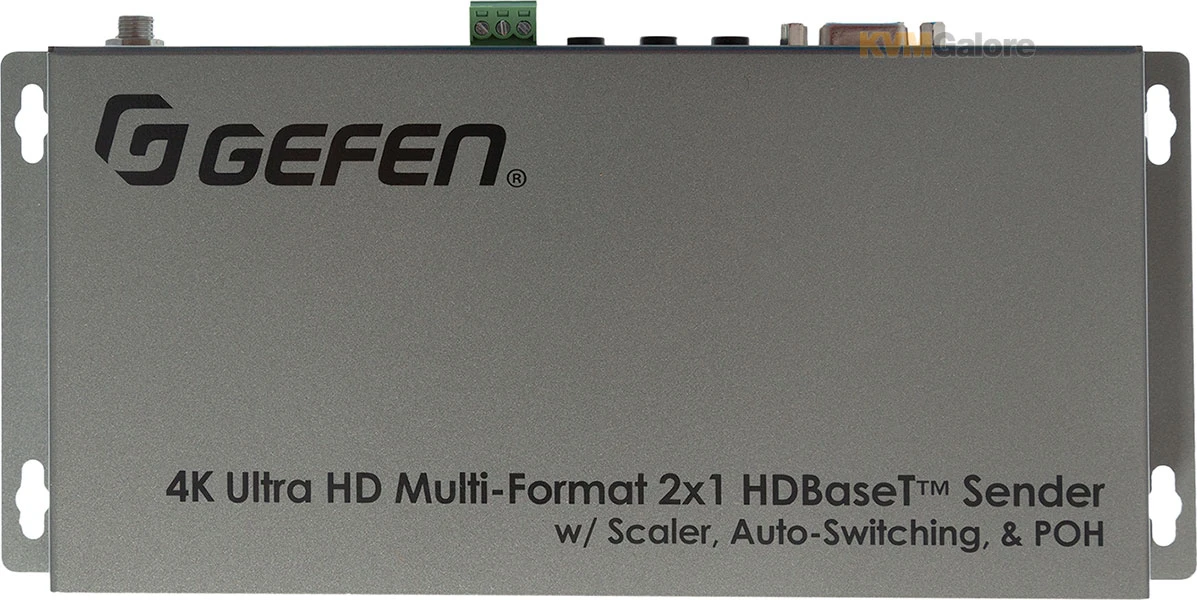

The 2×1 Sender’s small, ultra-low-profile enclosure can be securely surface-mounted, and thanks to its IR extender input, it can be conveniently hidden away from sight. It also accommodates a Gefen locking power supply plug for secure and reliable connection.

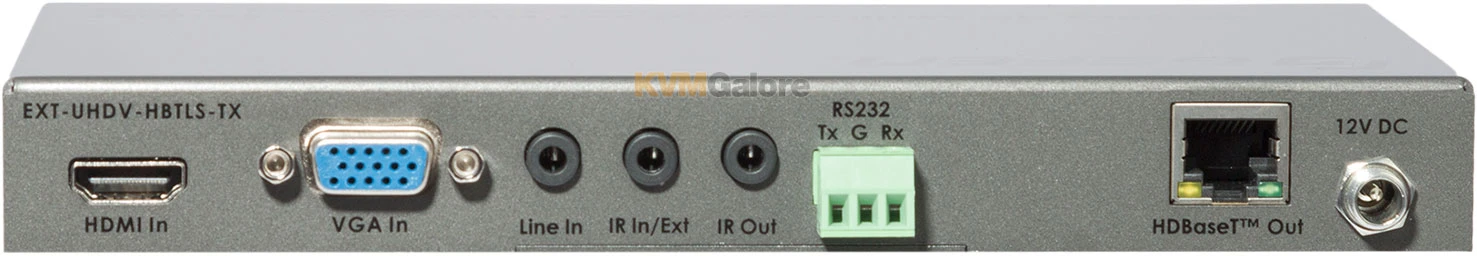

EXT-UHDV-HBTLS-TX supports the following inputs:
• HDMI
• VGA
• L/R analog audio

HDMI features supported
• HDMI 2.0
• HDCP 2.2 and 1.4
• 12-bit Deep Color (at 1080p)
• LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
• 3DTV pass-through
• CEC pass-through
• Lip Sync pass-through

VGA input supported formats
• VGA, YPbPr (Component Video), and Composite Video

Features and Benefits
• HDMI Input supports 600 MHz TMDS Clock and data throughput of up to 18 Gbps: 4K Ultra-HD (3840×2160) or 4K Cinema-DCI (4096×2160) up to 60Hz, 4:4:4
• HDBaseT™ extension supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
• Automatic switching of 4K HDMI and VGA
• Manual switching of 4K HDMI and VGA via front panel button or RS-232
• VGA scaling up to 1920×1200 with picture adjustments
• Analog L/R audio input for VGA
• RS-232 control of switching, scaler, and EDID management functions
• Bi-Directional RS-232 extension when used with a compatible Receiver
• 2-way IR extension when used with a compatible Receiver
• Bi-Directional power over HDBaseT™ (PoH) provides power to this Sender or a compatible Sender unit over the link cable – only one side will need external power
• Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
• Advanced EDID management for rapid integration of source and display
• Field-updateable firmware via mini-USB port, using the Gefen Syner-G™ software
• Locking power connector
• Compact, ultra-low-profile enclosure is surface-mountable and can be hidden away

Extend HDMI, VGA with analog audio, and RS-232 over a single CAT-5e:
• 4K Ultra-HD (3840×2160 @ 30Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
• 4K Cinema-DCI (4096×2160 @ 24 or 30Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
• 1080p Full HD (60Hz) or WUXGA (1920×1200 @ 60Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)

Package Includes
1x 4K Ultra-HD Multi-Format 2×1 HDBaseT™ Sender unit
1x 12V DC power supply with US/EU/UK/AU plugs
1x 3-pin Phoenix plug (attached to unit)
2x Mounting brackets
4x Self-adhesive rubber feet
1x Quick start guide

Note: Shielded (STP) CAT-5e or better cable is recommended. Unshielded (UTP) CAT-5e or better cable may be acceptable depending on cable quality but is not the preferred choice. Care should always be given to keep these cables away from power lines and other sources of electromagnetic interference.
