EXT-DP-CP-FM10: Pigtail-modules For Extending A DisplayPort Up To 1000 Feet

EXT-DP-CP-FM10: Pigtail-modules for extending a DisplayPort up to 1000 feet

using a single-strand multimode fiber optic cable with resolutions up to 2560×1600 and DPCP support

---

DisplayPort fiber optic pigtail module extender with DPCP support extends a DisplayPort up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable with resolutions up to 2560 x 1600 (WQXGA).

Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.

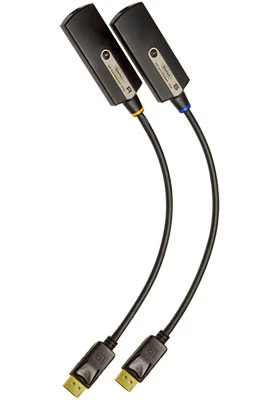

The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DisplayPort.

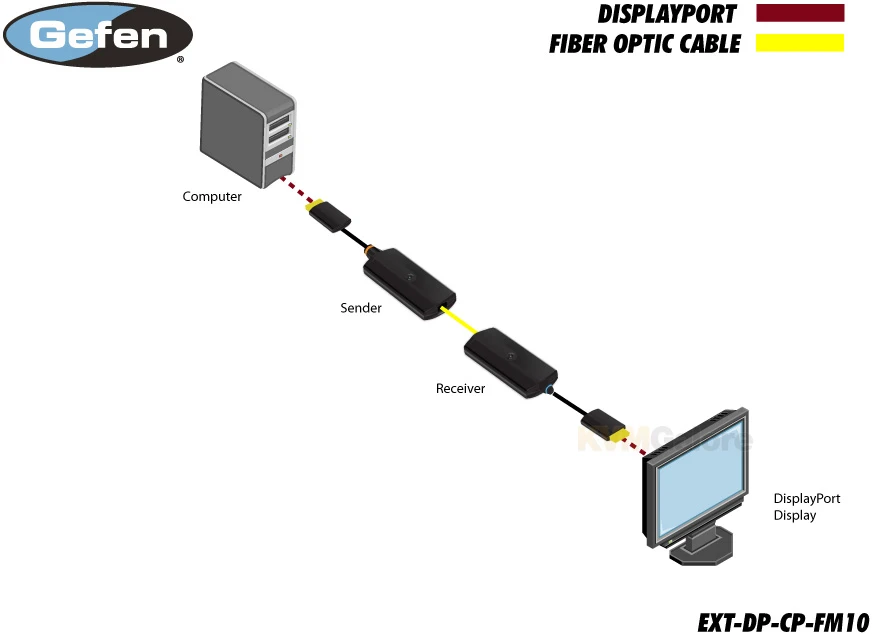

How It Works
The Sender pigtail end plugs into the DisplayPort source. The Receiver pigtailend plugs into the display. Connect a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable from the Sender to the Receiver module. Plug the included power supplies into the Sender and Receiver modules and a vibrant Hi-Def picture will appear on your display.

Note: Both the Sender and Receiver pigtail modules have power receptacles and must be connected to the included power supplies for proper operation. 65/125um (OM1) fiber may also be used at reduced maximum range of up to 1000 feet (300 meters).

Features and Benefits
• Extends DisplayPort up to 3300 feet (1000 meters) over a single-strand of 50/125µm multimode (OM2 / OM3) SC-terminated fiber optic cable
• Supports resolutions up to 2560 x 1600 (WQXGA)
• Compliant with DisplayPort 1.1 standard
• Fiber optic transmission eliminates electromagnetic interference (EMI)
• Pigtail design relieves stress and clutter on the source and display connector panels
• DPCP-compliant
• DDC bi-directional support
• Compact Sender and Receiver modules provide a clean, easy installation
• FCC and CE compliant for EMI/RFI emission

Package Includes
(1) DP Extender 1FO (Sender Pigtail) (EXT-DP-CP-FM10S)
(1) DP Extender 1FO (Receiver Pigtail) (EXT-DP-CP-FM10R)
(2) 5V DC Power Supplies (EXT-PS52AIP-1.3)
(1) Quick-Start Guide (QSG-DP-CP-FM10)
