EXT-DP-2CAT7: Extends DisplayPort Over 100 Feet Using CAT-7 Cables

EXT-DP-2CAT7: Extends DisplayPort over 100 feet using CAT-7 cables

DisplayPort Extender over CAT-7 allows any DisplayPort device to be extended up to 100 feet (30 meters) away, using two CAT-7 cables.

Resolutions up to 2560 x 1600 (WQXGA) are supported.

The Receiver unit is powered by the CAT-7 cable, eliminating the need for a power supply by the display side.

A 16 position rotating pot offers EQ adjustment to compensate for cable skew.

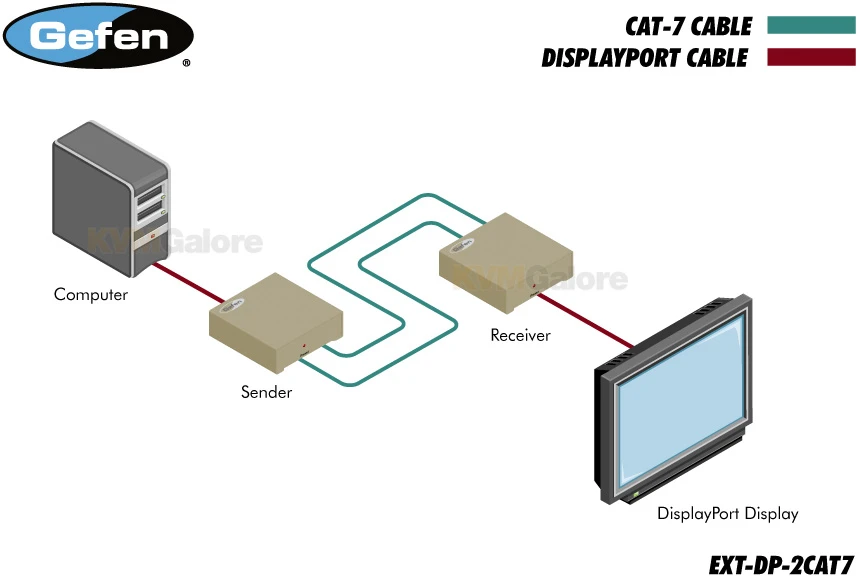

How It Works
Connect the Sender unit to the DisplayPort source using the included DisplayPort cable. Connect the Receiver unit to the DisplayPort display using another DisplayPort cable. Connect the CAT-7 cable between the Sender unit and the Receiver unit. Connect the included locking power supply to the Sender unit and an available electric outlet. The Receiver unit is powered by the first CAT-7 cable and does not require an external power supply. Turn on the power to the source and the display.

Features and Benefits
• Extends DisplayPort up to 100 feet (30 meters)
• Supports resolutions up to 2560 x 1600 over two CAT-7 cables, and up to 1920 x 1200 over one CAT-7 cable
• Supports DisplayPort 1.1a
• 16-position EQ rotary switch to compensate for cable skew
• HPD Auto-Calibration button
• Pre-emphasis switch
• Drive level switch
• Boost level switches
• Power On and Link indicators
• Locking power supply
• Surface-mountable

Package Includes

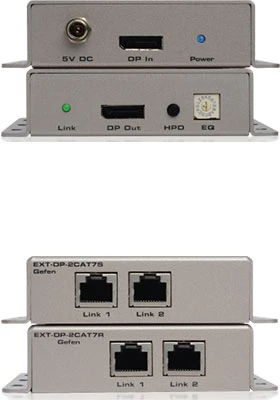

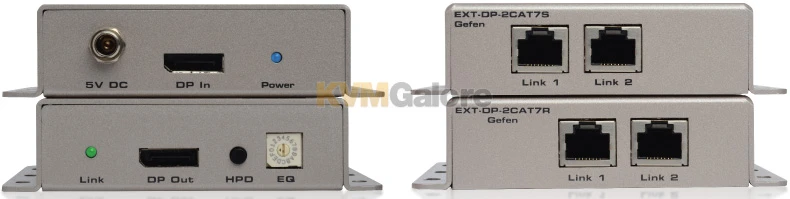

(1) DisplayPort Extender over CAT-7 – Sender Unit (EXT-DP-2CAT7S)
(1) DisplayPort Extender over CAT-7 – Receiver Unit (EXT-DP-2CAT7R)
(1) 6 ft. DisplayPort Cable (CAB-DP-06MM)
(1) 5V DC Locking Power Supply (EXT-PS526AIP-LP)
(1) Quick-Start Guide (QSG-DP-2CAT7)
