EXT-4K600A-MF-51-HBTLS: Auto-switch 4K Ultra-HD 600 MHz HDMI, DisplayPort™ 1.2 and VGA
scale and extended screen (up to 230 feet over a single CAT-5)

---

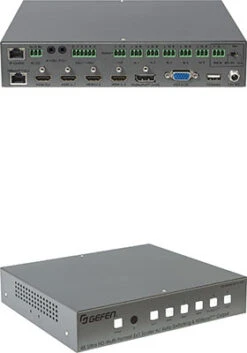

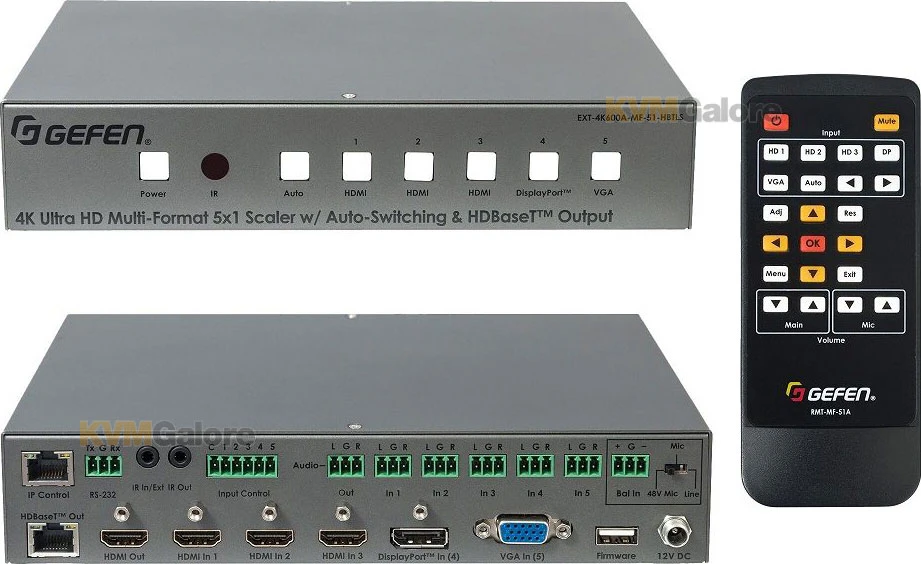

Gefen EXT-4K600A-MF-51-HBTLS is a 5×1 presentation switcher with three 4K 600 MHz HDMI, one DisplayPort™ 1.2, one VGA, five independently assignable stereo analog audio, and one balanced/unbalanced microphone/line input. The latter features switchable 48V Phantom Power and Ducking.

The five video inputs, along with their embedded or assigned audio, can be switched automatically or manually. Control options include the front panel, hand-held IR remote with on-screen display, electrical IR, RS-232, Telnet/UDP, web server interface, and contact closure.

The split HDMI and HDBaseT™ outputs feature a scaler, configurable to 3840×2160, 30Hz, 4:4:4. They feed a local and a remote display simultaneously, adding flexibility in larger presentation environments.

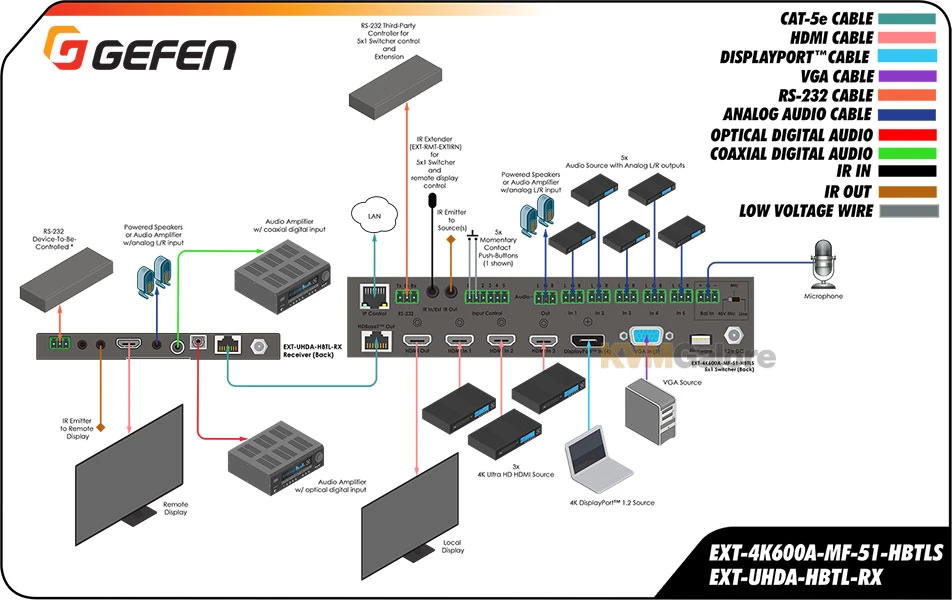

The switcher and its recommended Receiver (the EXTUHDA-HBTL-RX, sold separately) use Gefen’s implementation of the HDBaseT™ technology to extend the HDMI output of the switcher up to 230 feet/70 meters at 1080p Full HD and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable.

The HDMI and DisplayPort™ inputs support resolutions up to 4K DCI (4096×2160) 60Hz 4:4:4, with HDCP 2.2 and 1.4.

The HDMI input and output, and the HDBaseT™ output support 2 channels of LPCM digital audio.

The VGA input supports resolutions up to WUXGA (1920×1200) and 1080p Full HD. When used with third-party adapters, the VGA input also supports Component (YPbPr) and Composite video.

The switcher features an analog L/R audio de-embedder. The optional Receiver also features analog and digital audio (optical and coaxial) outputs. Any or all audio outputs can be connected to sound reinforcement systems at the source side or the remote end, adding impact and presence to AV presentations.

The 5×1 switcher features Advanced EDID Management to ensure that sources are optimized for the displays in use.

The switcher, when used with the optional HDBaseT™ Receiver, provides 2-way RS-232 and IR extension, facilitating control of the switcher, AV sources placed near the switcher, and the remote display or another device placed near the Receiver unit. Industry-standard power over-HDBaseT™ (PoH) technology provides power from the switcher to the Receiver over
the same cable that extends the AV signal. The switcher features an integrated IR sensor on its front panel as well as an electrical IR input. If the switcher is mounted in a location where its IR sensor is not within line of sight, a Gefen EXT-RMT-EXTIRN IR Extender Module or a third-party controller with electrical IR output can be connected to the IR input on its back panel.

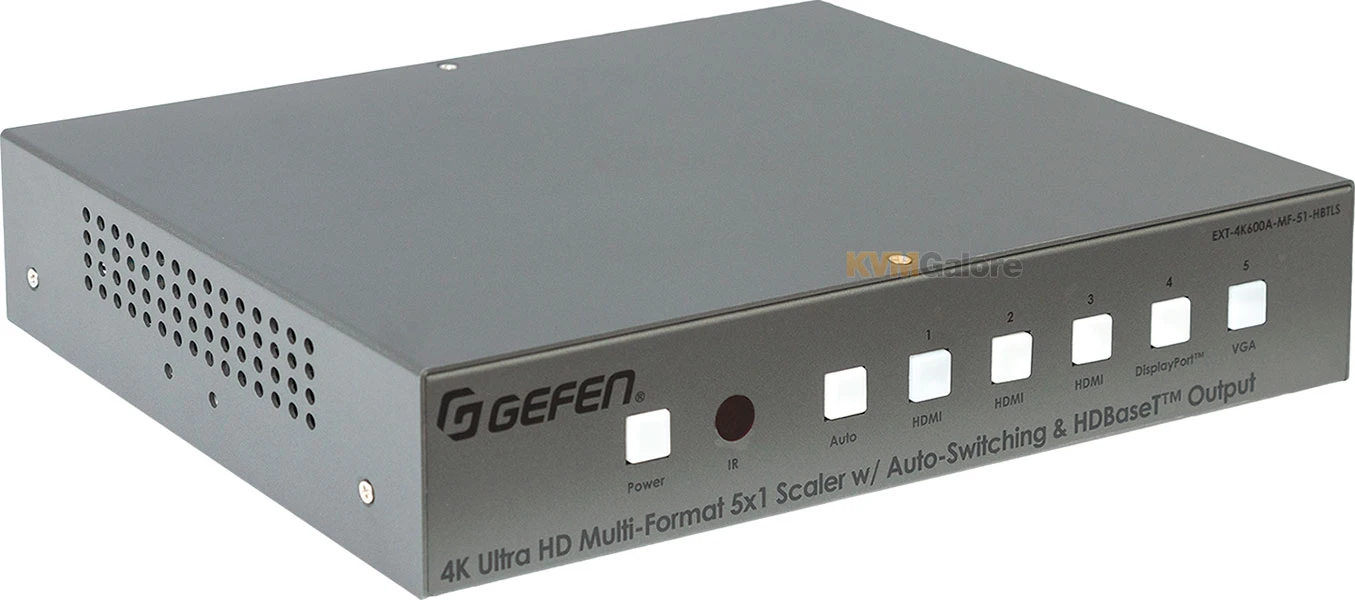

The 5×1 switcher features a compact form-factor that can be placed on a shelf or securely mounted on or under a surface.

The optional Receiver’s small, ultra-low-profile enclosure can be securely surface-mounted, and conveniently hidden away from sight in the equipment closet or behind the display.

Locking HDMI ports on the switcher and locking power jacks on both units ensure long-lasting and reliable connections.

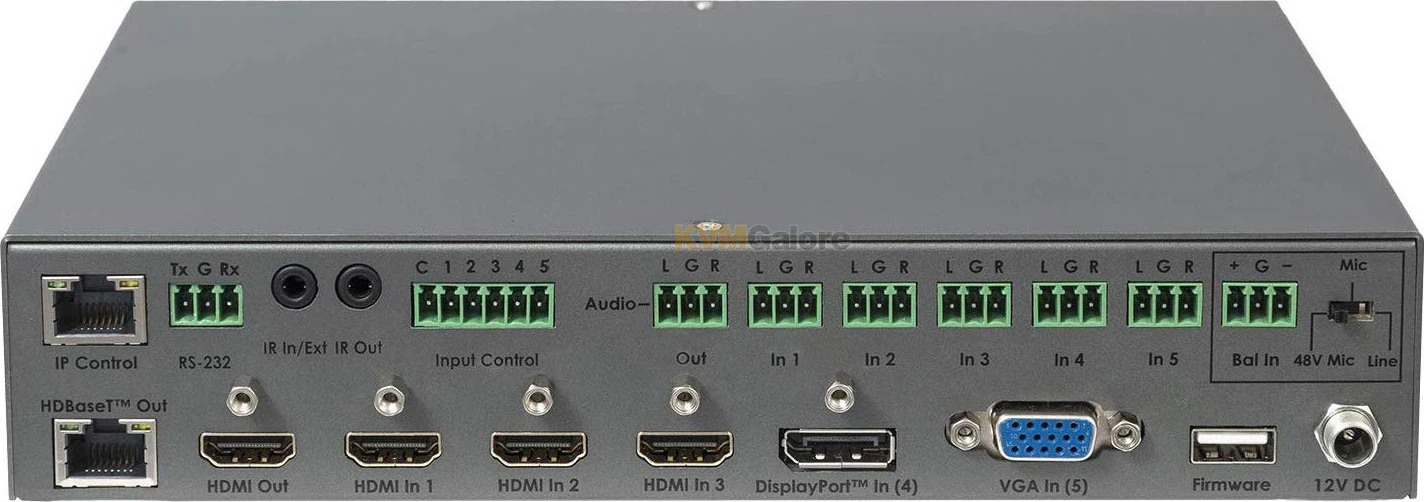

Inputs
3x HDMI
1x DisplayPort
1x VGA
5x L/R Unbalanced Analog Audio
1x L/R Balanced and Unbalanced Mic/Line

Outputs
1x HDMI
1x HDBaseT™
1x L/R Unbalanced Analog Audio

HDMI features supported
• HDMI 2.0
• HDCP 2.2 and 1.4
• 12-bit Deep Color (at 1080p)
• LPCM 2.0 pass-through
• CEC pass-through (Local HDMI output only)
• Lip Sync pass-through

DisplayPort™ features supported
• DisplayPort 1.2
• HDCP 2.2 and 1.4
• LPCM 2.0 pass-through

VGA input supported formats
• VGA, YPbPr (Component Video), and Composite Video

Features and Benefits
• Automatic switching of all video inputs
• Manual switching of video inputs via front panel buttons, handheld IR remote, electrical IR, RS-232, Telnet/UDP, and web server interface
• Split HDMI and HDBaseT™ outputs feed local and remote displays simultaneously
• Selectable 48V Phantom Power for Mic input
• Microphone Ducking feature
• HDMI and DisplayPort inputs support up to 600 MHz TMDS clock and 18 Gbps data throughput
• HDMI and DisplayPort inputs support up to 4K DCI 4096×2160, 60 Hz, 4:4:4 and 4K Ultra-HD 3840×2160, 60 Hz, 4:4:4
• VGA input supports up to WUXGA (1920×1200, 60 Hz, 4:4:4) and 1080p Full HD (60Hz, 4:4:4)
• HDMI and HDBaseT™ outputs support up to 300 MHz TMDS clock and 10.2 Gbps data throughput
• HDMI and HDBaseT™ outputs support up to 4K Ultra-HD 3840×2160, 30 Hz, 4:4:4
• Configurable built-in scaler up to 3840×2160, 30 Hz, 4:4:4
• Each of the 5 unbalanced audio inputs can be associated with any of the video inputs and be embedded into then HDMI and HDBaseT™ outputs
• When used with optional EXT-UHDA-HBTLRX HDBaseT™ Receiver, extends the HDMI output, 2-way IR, and RS-232 over a single CAT-5e:
– 4K Ultra-HD (3840×2160 @ 30 Hz, 4:4:4) up to 130 feet/40 meters (8-bit color)
– 1080p Full HD (60Hz) or WUXGA (1920×1200 @ 60Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
• VGA input supported formats: VGA, YPbPr (Component Video), and Composite Video
• RS-232 extension and unit control
• 2-way IR extension and unit control
• Analog L/R unbalanced audio breakout
• 5 independent dry contacts for input switching
• Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
• Advanced EDID Management for rapid integration of source and display
• Field-updateable firmware
• Locking HDMI connectors
• Locking power connector
• Power over HDBaseT™ (PoH) provides power to a compatible Receiver unit (such as EXT-UHDA-HBTL-RX) over the link cable
• IR In/Ext port works with Gefen EXT-RMTEXTIRN IR Extender Module or electrical IR from a third-party controller
• Handheld IR remote works with intuitive on-screen display (OSD)
• IP control via Telnet/UDP and web server interface
• Compact enclosure is top-or-bottom surfacemountable, or can be placed in a shelf
• Field-updateable firmware via micro-USB port, using the Gefen Syner-G™ software

When used with optional EXT-UHDA-HBTL-RX HDBaseT™ Receiver, extends the HDMI output, 2-way IR, and RS-232 over a single CAT-5e:
• 4K Ultra-HD (3840×2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
• 1080p Full HD (60 Hz) or WUXGA (1920×1200 @ 60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)

Package Includes
1x 4K Ultra HD Multi-Format 5×1 Scaler w/ Auto-Switching and HDBaseT Output
1x 12V DC power supply with locking connector and US/EU/UK/AU Regional Plugs (EXT-PS12U3IP-LP21-6)

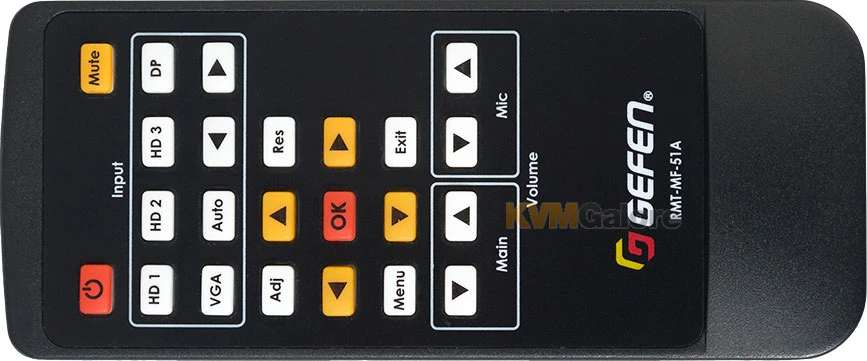

1x RMT-MF-51A handheld IR remote with (1) CR2025 battery
8x 3-pin Phoenix plugs
1x 6-pin Phoenix plugs
2x Mounting Brackets
4x Unit-to-Mounting Bracket Screws (M3x4)
4x Self-adhesive rubber feet
1x Quick Start Guide

Note: Shielded (STP) CAT-5e or better cable is recommended. Unshielded (UTP) CAT-5e or better cable may be acceptable depending on cable quality but is not the preferred choice. Care should always be given to keep these cables away from power lines and other sources of electromagnetic interference.
