EXT-4K300A-MF-41-HBTLS:Â Auto-switch 4K Ultra-HD HDMI and 4K DisplayPort, DVI and VGAÂ
scale, and output to a local HDMI or extended screen (up to 230 feet over a single CAT-5)Â

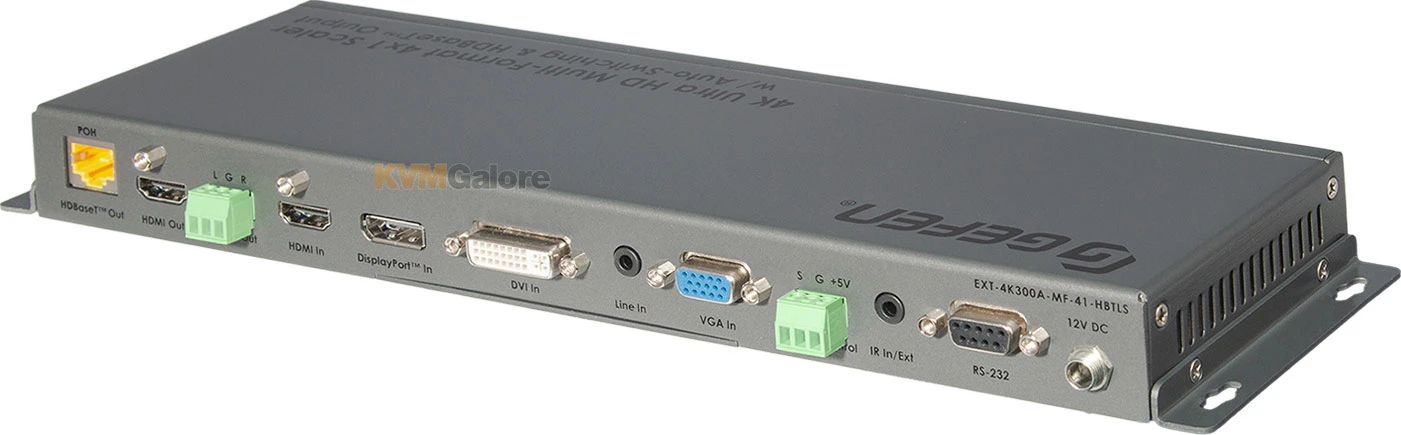

Gefen EXT-4K300A-MF-41-HBTLS is a 4×1 presentation switcher with HDMI, DisplayPort™, DVI, and VGA inputs, along with an L/R analog audio input that accompanies both the DVI and VGA inputs. It features split HDMI/HDBaseT™ outputs, and a de-embedded analog L/R audio output. The 4 inputs can be switched automatically or manually. Control options include the front panel, a hand-held IR remote, electrical IR, RS-232, and contact closure. The split HDMI and HDBaseT™ outputs can simultaneously feed a local and a remotely-installed display, adding flexibility in larger presentation environments.
This 4×1 switcher and its recommended Receiver (EXT-UHDA-HBTL-RX, sold separately) use the Gefen implementation of the HDBaseT™ technology to extend the HDMI output of the switcher up to 230 feet at 1080p Full HD and up to 130 feet at 4K, using one CAT-5e or better cable.
The HDMI and DisplayPort™ inputs support resolutions up to 4K 60Hz 4:2:0, with HDCP 2.2 and 1.4. The HDMI input and output, and the HDBaseT™ output support up to 7.1 channels of highest performance LPCM and HBR (High Bit Rate) lossless digital audio, such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™.
The DVI and VGA inputs support resolutions up to WUXGA (1920×1200) and 1080p Full HD. The DVI input also supports HDCP 1.4.
A powerful built-in scaler can upscale lower resolution DVI and VGA signals with legacy aspect ratio to widescreen WUXGA or 1080p Full HD, ensuring stunning presentations and smooth switching transitions between the connected AV sources.
The 4×1 switcher features an analog L/R audio de-embedder. The optional Receiver features analog and digital audio (optical and coaxial) outputs. Any or all audio outputs can be connected to sound-reinforcement systems, adding impact and presence to AV presentations.
The switcher features advanced EDID management to ensure that sources are best-optimized for the displays in use.

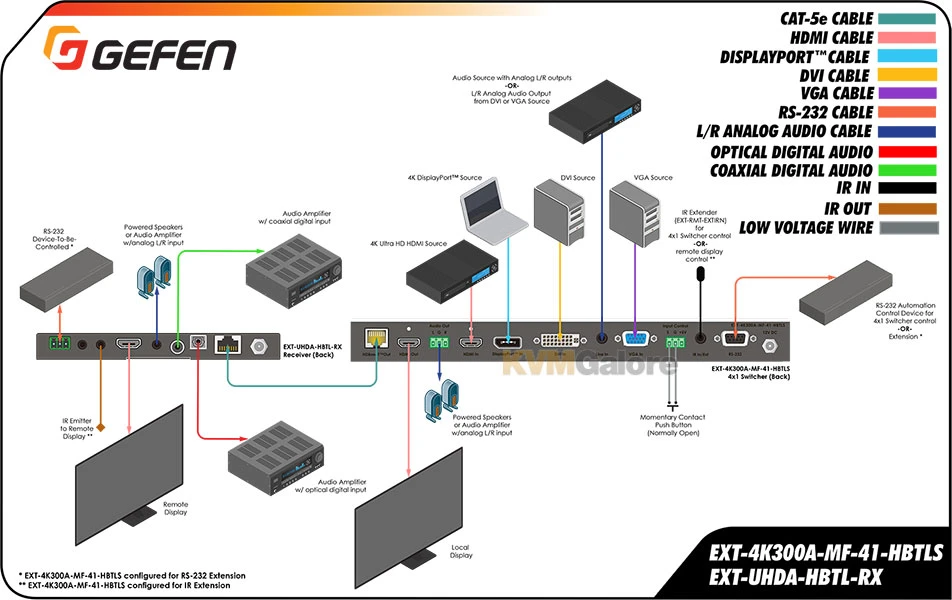

When used with the optional EXT-UHDA-HBTL-RX HDBaseT™ Receiver, the 4×1 switcher, provides 2-way RS-232 and source-to-display IR extension, facilitating RS-232 control of A/V sources placed near the Sender unit, and sending IR or RS-232 automation commands to the remote display or another device placed near the Receiver unit. Industry-standard Power-over-HDBaseT™ technology provides power from the switcher to the Receiver, over the same cable that extends the video signal.
The switcher and Receiver’s small, ultra-low-profile enclosures can be securely surface-mounted, and conveniently hidden away from sight in the equipment closet or behind the display. Locking HDMI ports on the switcher and locking power jacks on both units ensure long-lasting and reliable connections.

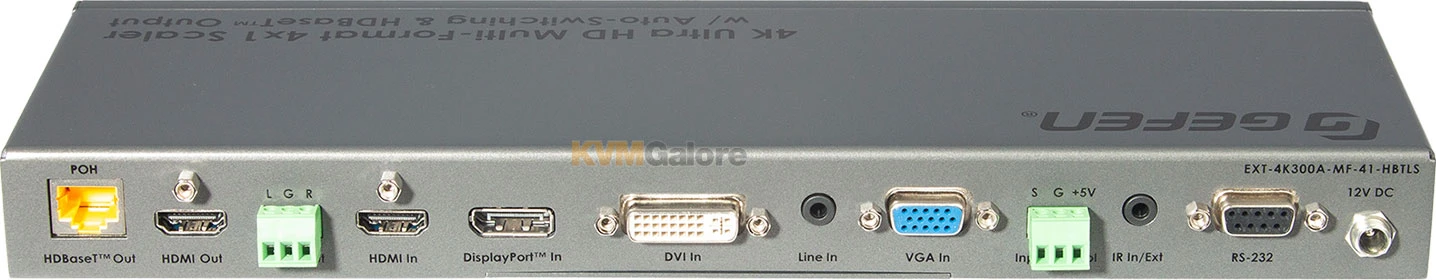

EXT-4K300A-MF-41-HBTLS supports the following inputs:
• HDMI
• DisplayPort
• DVI
• VGA
• L/R analog audio
EXT-4K300A-MF-41-HBTLS supports the following outputs:
• HDMI
• HDBaseT™
• L/R analog audio
HDMI features supported
• HDMI 2.0
• HDCP 2.2 and 1.4
• 12-bit Deep Color (at 1080p)
• LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
• 3DTV pass-through
• CEC pass-through
• Lip Sync pass-through
DisplayPort™ features supported
• DP 1.1
• HDCP 2.2 and 1.4
DVI input supported formats
• DVI-D, HDMI 1.4, VGA, YPbPr (Component Video), and Composite Video
• HDCP 1.4 (for DVI-D and HDMI signals)
VGA input supported formats
• VGA, YPbPr (Component Video), and Composite Video
Features and Benefits
• Automatic switching of the 4 video inputs
• Manual switching of video inputs via front panel button, handheld IR remote, electrical IR, or RS-232
• Split HDMI and HDBaseT™ outputs feed local and remote displays simultaneously
• Supports up to 340 MHz TMDS clock and 10.2 Gbps data throughput
• VGA and DVI feature scaling up to WUXGA (1920×1200 at 60Hz) and 1080p Full HD (60Hz) with picture adjustment capabilities
• DVI input can be associated with the L/R analog audio input or with audio embedded in the video
• RS-232 extension or unit control
• IR extension (outbound only) or unit control
• Analog L/R audio breakout
• Dry contact for input switching with indicator LED +5V power source
• Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
• Advanced EDID management for rapid integration of source and display
• Field-updateable firmware via micro-USB port, using the Gefen Syner-G™ software
• Locking HDMI connectors
• Locking power connector
• Power over HDBaseT™ (PoH) provides power to a compatible Receiver unit (EXT-UHDA-HBTL-RX) over the link cable
• IR In/Ext port works with Gefen EXT-RMT-EXTIRN IR Extender Module or electrical IR from a third-party controller
• Compact, ultra-low-profile enclosure is surface-mountable and can be hidden away
When used with optional EXT-UHDA-HBTL-RX HDBaseT™ Receiver to extend the HDMI output, outbound IR, and RS-232 over a single CAT-5e:
• 4K Ultra-HD (3840×2160 @ 60Hz, 4:2:0), up to 130 feet/40 meters (8-bit color)
• 4K Cinema-DCI (4096×2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
• 1080p Full HD (60Hz) or WUXGA (1920×1200 @ 60Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
Package Includes
1x 4K Ultra-HD Multi-Format 4×1 Scaler w/ Auto-Switching and HDBaseT™ Output
1x 12V DC power supply with locking connector and US/EU/UK/AU regional plugs
1x EXT-RMT-EXTIRN IR extender
1x RMT-MF-41A handheld IR remote with 2 AAA batteries
2x 3-pin Phoenix plugs (attached to unit)
2x Mounting brackets
4x Self-adhesive rubber feet
1x Quick start guide
Note:Â Shielded (STP) CAT-5e or better cable is recommended. Unshielded (UTP) CAT-5e or better cable may be acceptable depending on cable quality but is not the preferred choice. Care should always be given to keep these cables away from power lines and other sources of electromagnetic interference.
