DVI (HDCP) Over Twisted Pair Transmitter

DVI (HDCP) over twisted pair transmitter

Note: Receiver unit is purchased separately

• Requires Shielded Twisted Pair Cable
• Max. Data Rate – 4.95Gbps (1.65Gbps per graphic channel)
• HDCP Compliant
• Passes EDID
• Rack Kit – RK-4PT
• Size – Ultra-Compact Pico TOOLS™ – 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

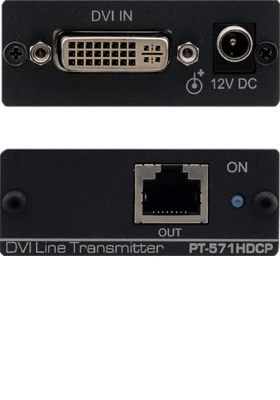

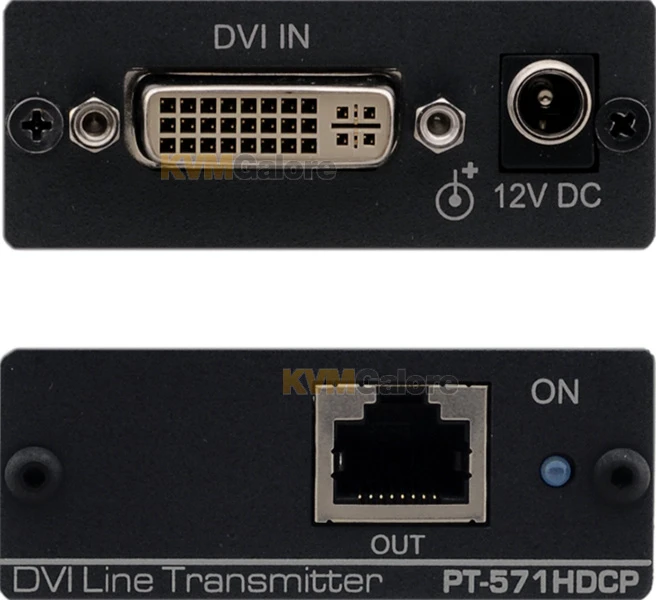

PT-571HDCP is a DGKat™ twisted-pair transmitter for DVI signals. PT-571HDCP converts the DVI to twisted pair signal and sends it to PT-572HDCP+ receiver (purchased separately) which converts the twisted pair signal back to a DVI signal.

Features and Benefits
• Max. Data Rate – 4.95Gbps (1.65Gbps per graphic channel); WUXGA, 1920x1080p.
• HDTV Compatible.
• HDCP Compliant.
• DGKat™ Signal Integration – Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
• System Range – Up to 90m (295ft) at SXGA, or up to 30m (98ft) at UXGA on shielded BC-DGKat524 cable. Up to 90m (295ft) at SXGA, or up to 70m (230ft) at UXGA on shielded BC-DGKat623 cable. Up to 100m (330ft) at SXGA, or up to 80m (265ft) at UXGA on shielded BC-DGKat7a23 cable.
• Cable – Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer’s BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
• EDID PassThru – Passes EDID signals between the source and display.
• Power Connect™ System – A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other.
• Ultra-Compact PicoTOOLS™ – 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.
