Dual-monitor (HDMI Or DVI) Docking Station

Dual-monitor (HDMI or DVI) docking station

with Gigabit Ethernet, 5x USB 3.0 ports (1x fast-charge), headset and 60W Power Delivery

• USB Type-C docking port
• Easily connect dual monitors (HDMI or DVI) right out of the box, with no display drivers to set up
• Connect your USB devices with 5x USB 3.0 ports – 1x USB Type-C and 4x USB Type-A (including 1x Fast-Charge)
• Power and charge your laptop with Power Delivery 2.0 (up to 60W)
• Add wired network connectivity with the Gigabit Ethernet RJ45 port
• Includes two HDMI to DVI adapters for versatile external monitor options

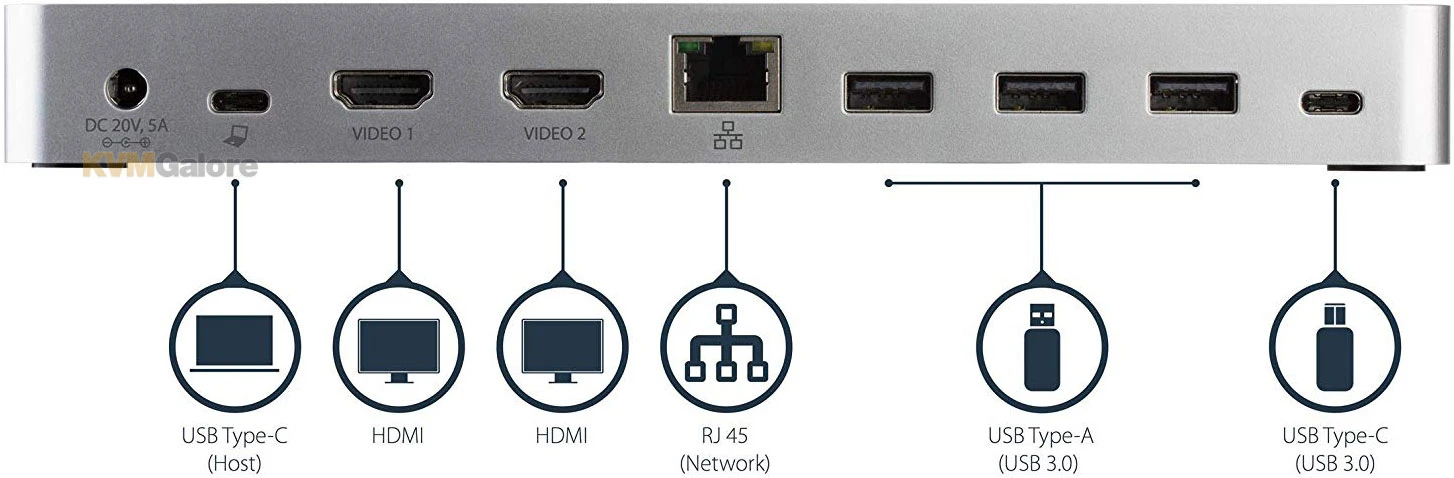

Expansion Ports
1x USB Type-C (USB 3.0)
4x USB Type-A (USB 3.0)
2x HDMI
1x RJ45 (wired Gigabit Ethernet)

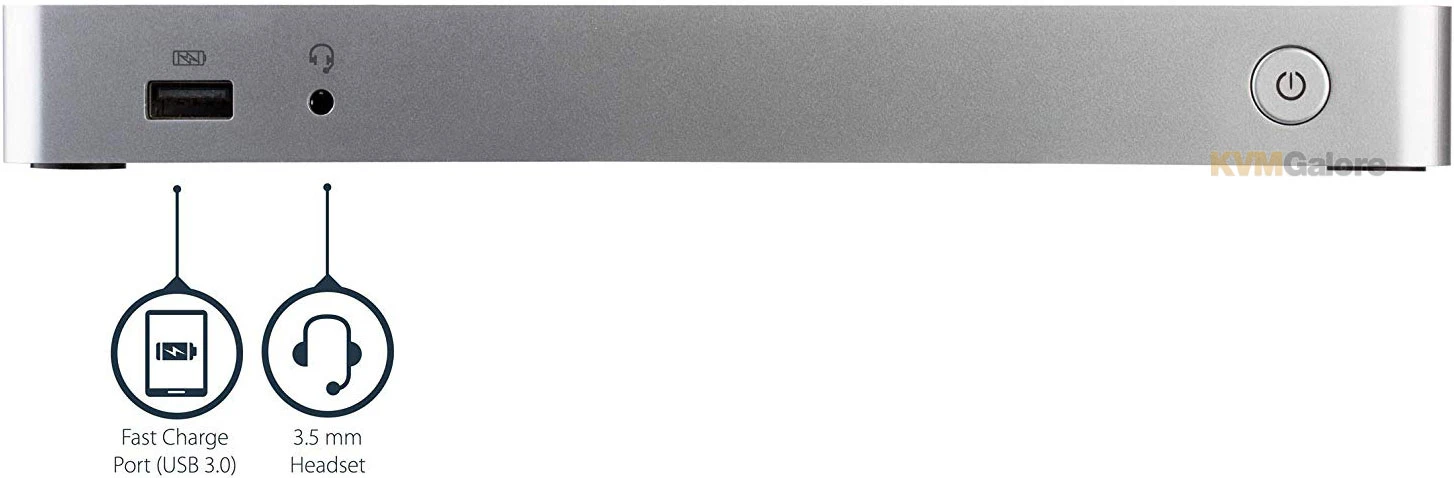

1x 3.5 mm audio (headset)

Enhance your productivity by turning your Windows^® USB-C™ laptop into a full-scale workstation. This dual-monitor USB-C dock lets you easily connect two HDMI or DVI monitors (with included adapters) using one USB-C cable, with no setup of display drivers required right out of the box.

The USB-C dock provides 60W charging power, and five USB 3.0 ports to connect devices. With easy dual-monitor setup, the dock is ideal for wide-scale use in office workstations.

Create a Dual-Monitor Workstation
The USB-C dock lets you connect dual monitors with flexible options. Connect to:
2x HDMI  displays at 1920x1200p @ 60Hz
2x DVI displays at 1920x1200p @ 60Hz
1x HDMI display + 1x DVI display at 1920x1200p @ 60Hz
1x HDMI display at 4K @ 30Hz

Connect More Devices
Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C™ dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.

This USB Type-C docking station gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus an audio headset connections.

60W Charging Power
The USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.

Fast, Easy Setup
The dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB Type-C port that supports DP Alt Mode and USB Power Delivery.

Applications
• Add essential ports required for mass deployment in an office environment
• Ideal for USB-C equipped Windows laptops such as Dell XPS™, Lenovo^® ThinkPad™, HP^® Spectre, HP EliteBook and HP ProBook

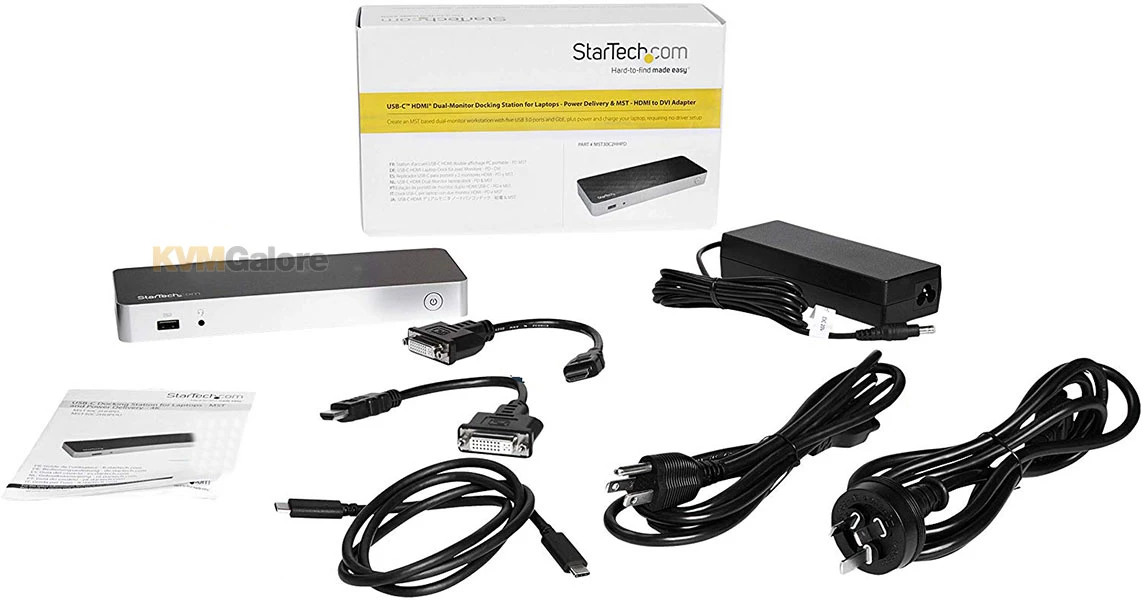

Included in Package
1x Docking station
1x 1m USB-C to USB-C cable
2x HDMI to DVI adapters
1x Universal power adapter (NA/JP, ANZ)
1x Quick-start guide
