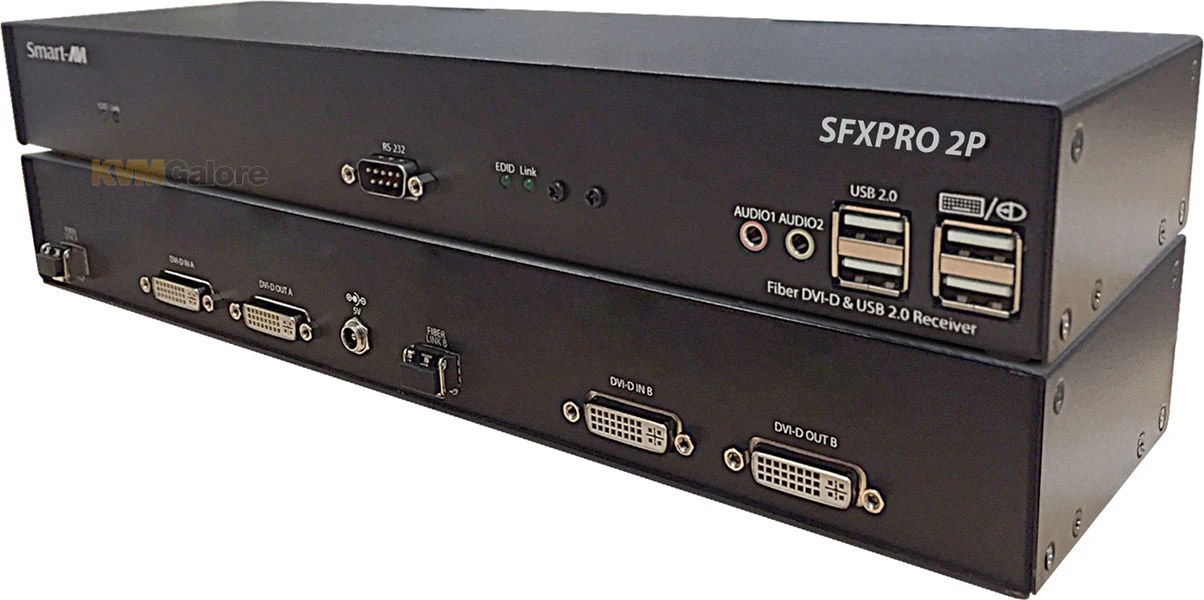

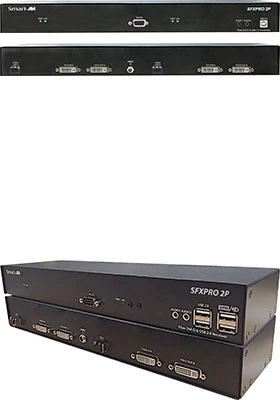

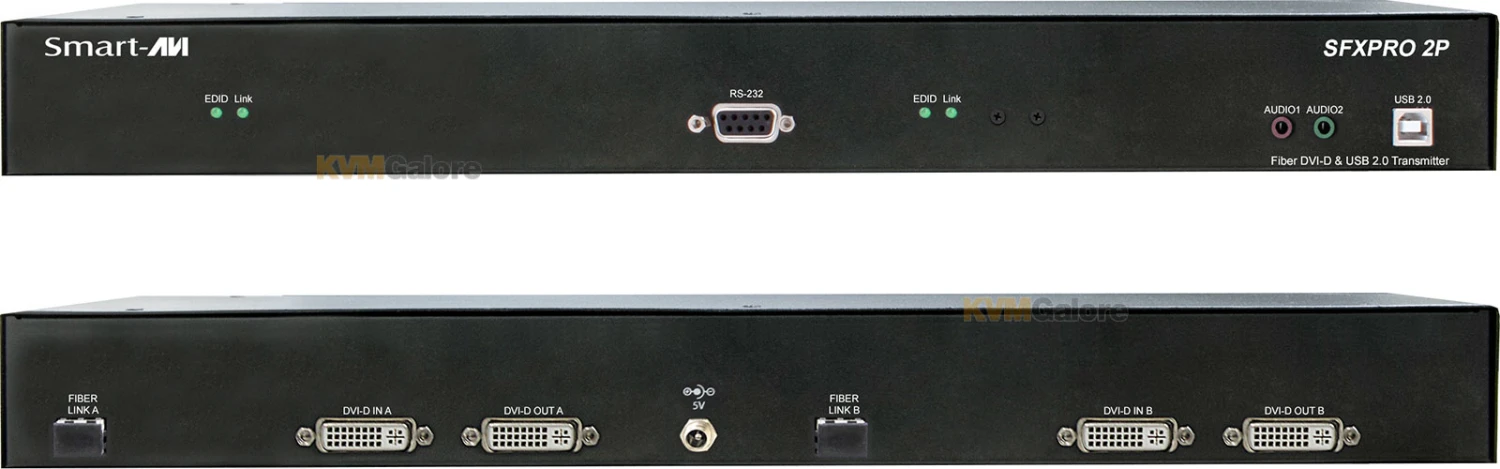

Dual DVI-D Video And USB 2.0 KVM Extender Over multimode Fiber

Dual DVI-D video and USB 2.0 KVM extender over multimode fiber

up to 1500 feet, also extending stereo audio and RS-232

---

SFXPRO-2P-M is a perfect solution for extending two DVI-D and USB 2.0 signals from a computer in a remote location up to 1500 feet away over 2x LC multimode fiber cables. It supports 1920×1200 @ 60Hz DVI-D video and all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.

SFXPRO-2P-M is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference.

SFXPRO-2P-M is also very secure because it’s fiber optic signals cannot be easily tapped.

Security
When managing content in high-security environments, creating a safe and secure control room is critical. In the vast majority of such applications, that requires routing signals from a server room, where the computers are safely stored, to a control room, where approved personnel access the data and video feeds. Whether that’s in a security surveillance center, an operations control room or some other security-related environment, being able to extend video, audio and USB is a must.

SFXPRO-2P-M provides system architects with the flexibility they need to create secure environments for servers as well as the end users accessing those computers. And with dual DVI-D signal extension, users can manage their connected computers with expanded display options, enabling them to stay in control of their content at all times.

Digital Signage
Managing a multi-screen digital signage solution requires some important foresight regarding the signal path to those informative and attractive displays. Particularly when it comes to properly scheduled, updated and managed content being displayed, it’s much more efficient to keep all of the digital signage hardware in one central location and to extend the video signals out from there.

That means signal extension is an important part of a smart digital signage solution, and SFXPRO-2P-M gives users the flexibility they want and need to place their digital signage screens in the right locations to maximize their effectiveness.

Audio and Visual Recording
For users in the recording arts, maintaining the utmost in signal and recording fidelity is an absolute necessity. For video recording, it is often important that no unsightly computers are visible. Similarly, audio engineers must keep noisy computers away from the rooms where recording happens to ensure the final product sounds professional. In both such instances, SFXPRO-2P-M gives users the ideal way to keep their servers or computers away from areas that audio or video recording is being done, ensuring a better final product.

Features and Benefits
• Top signal quality at maximum extension over multimode fiber (1500 feet) plug type LC
• DVI-D video resolution up to 1920×1200 WUXGA at 60Hz
• DDC Learning
• Supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) data rates
• Supports all USB device types transparently (no emulation from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, game controllers and more • Integrated 4-port USB hub at the Receiver unit
• Compatible with all operating systems
• Extends stereo audio
• Extends RS-232
• Plug and play

Package Includes
1x Transmitter unit (SFXPRO-2P-M-TX)
1x Receiver unit (SFXPRO-2P-M-RX)
2x Power supplies
