Dual* 4K DisplayPort/Thunderbolt 3 Video, Thunderbolt 3 docking Station

Dual* 4K DisplayPort/Thunderbolt 3 video, Thunderbolt 3 docking station

3x USB ports, audio support, Gigabit LAN and 85W Power Delivery

---

• Thunderbolt 3 (40Gbps) docking station
• Dual* monitor 4K 60Hz via 1x DisplayPort and 1x Thunderbolt 3 video ports
• 3x USB ports (including 1x fast-charge port) [2x USB Type-A; 1x USB Type-C] (USB 3.1 Gen 2, 5 Gbps)
• Gigabit Ethernet
• Audio support (speakers and microphone)
• 85W Power Delivery
• Charge high performance laptops, Ultrabooks and laptop computers such as MacBook Pro 13 and 16, MacBook Air, HP, Lenovo ThinkPad, and Dell XPS using macOS and Windows
• Auto drivers
• Thunderbolt 3 host cable and USB-C to DisplayPort cable (for 2nd DisplayPort monitor) included
• Dual display support on MacBook Pro/Air with Intel processor and single display with Apple M1 Chip
• Downstream Thunderbolt 3 port that supports 3 modes of operation: a second monitor, daisychain Thunderbolt 3 peripherals, or connect USB Type-C accessories
• Connect additional Thunderbolt 3 devices to this Thunderbolt 3 dock including monitors, external hard drive bays, card readers, or an external GPU using the downstream Thunderbolt 3 port
• Connectivity Tools application provided with this device the improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout and Wi-Fi Auto Switch utilities

Expansion Ports
1x Thunderbolt 3 downstream (40Gbps)
1x DisplayPort
1x USB Type-A (USB 3.2 Gen 1, 5Gbps, BC 1.2 Fast-Charge)
1x USB Type-A (USB 3.2 Gen 1, 5Gbps)
1x USB Type-C (USB 3.2 Gen 1, 5Gbps)
1x RJ-45 (wired Gigabit Ethernet)
2x 3.5mm (speakers and microphone)

Easily transform your Thunderbolt 3™ equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality Thunderbolt 3 dock features three USB 3.0 ports and 85W Power Delivery to charge your laptop.

Create a Dual-4K Workstation
Great for video editing and other Ultra-HD tasks, this dual-4K monitor docking station supports 40Gbps speeds and 4K resolution on two monitors. Run resource-demanding applications on two independent displays, without draining system resources.
Connect your laptop to:
1 x 4K monitor via the DisplayPort port  
1 x 4K monitor via the Thunderbolt 3 (USB-C) port (with 1.8 m cable included) 
or
1 x 5K monitor via both DisplayPort and Thunderbolt 3 (USB-C) ports

Easy Installation and Deployment 
Simply connect the Thunderbolt 3 dock to your laptop with included Thunderbolt 3 cable and start working immediately. No time-consuming driver installations are required. 

Connect Your Devices
With three USB 3.0 ports, the Thunderbolt 3 docking station gives you plenty of ports for the latest and legacy devices. Connect USB devices like flash drives using the two Type-A ports. Keep your mobile device charged with the dock’s Fast-Charge and sync port. Connect a USB-C device with the USB-C port (5Gbps – data only).

Plenty of Charging Power
The Thunderbolt 3 docking station features a 170W power adapter supporting Power Delivery to power and charge (up to 85W) your laptop, while powering all your devices connected to the dock. This eliminates the need to use two separate power adapters for your laptop and dock.

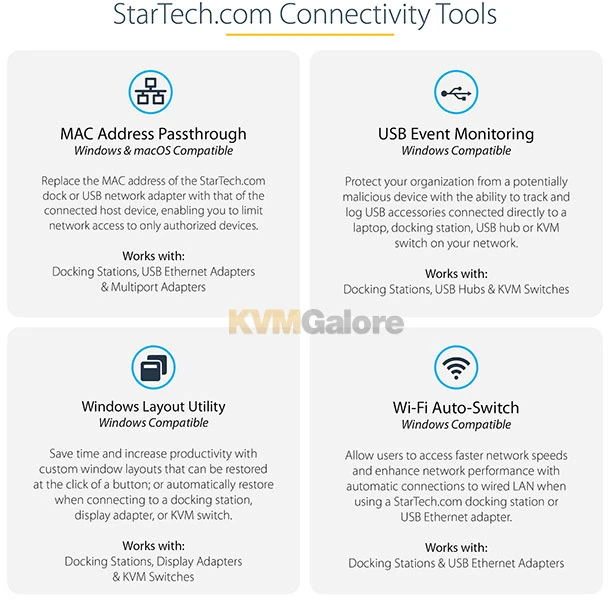

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: To setup and save custom windows layouts
• Mac Address Pass-Through Utility: To improve network security
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN

Included in Package
1x Docking station
1x 1.7 foot [52 cm] Thunderbolt 3 cable
1x 6 foot [1.8 m] USB-C to DisplayPort cable
1x Universal power adapter
2x Power cords (NA/JP, ANZ)
1x Instruction manual

* Display support for Mac computers:
Dual (extended) display with Intel, Apple M1 Max and M1 Pro chips
Single display with Apple M1 and M2 chips
