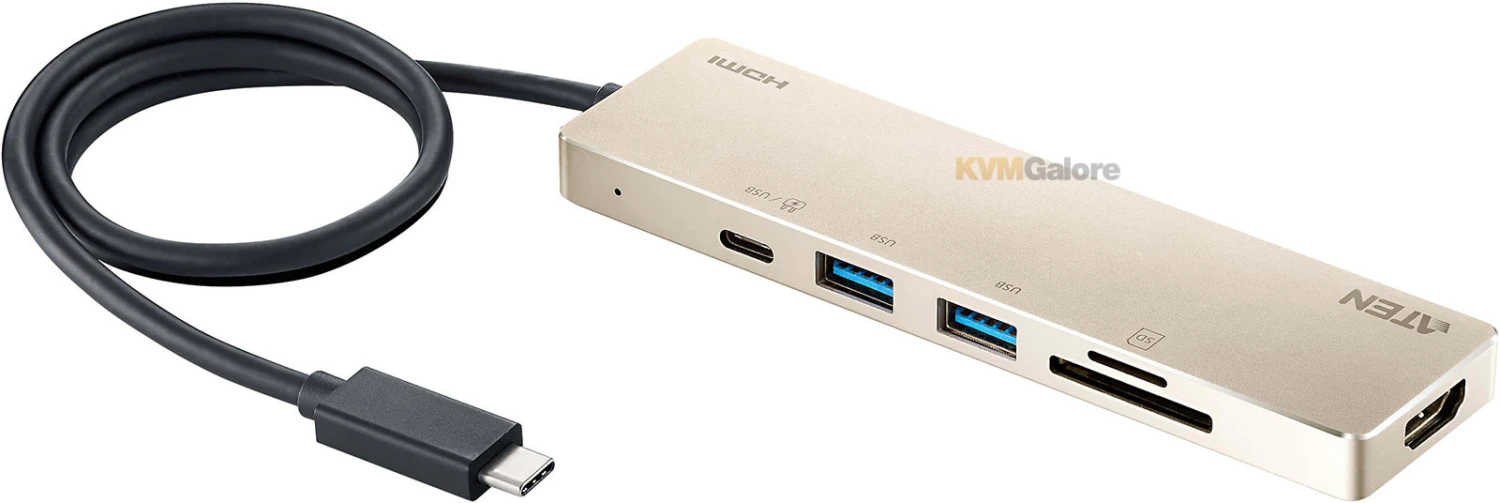

ATEN USB-C Multiport Mini-dock

USB-C multiport mini-dock

with power pass-through

• USB Type-C docking port
• 6-in-1 multi-function dock that includes 1x HDMI, 1x SD/Micro SD card reader, 1x USB-C PD port and 2x USB 3.2 Gen 1 Type-A ports

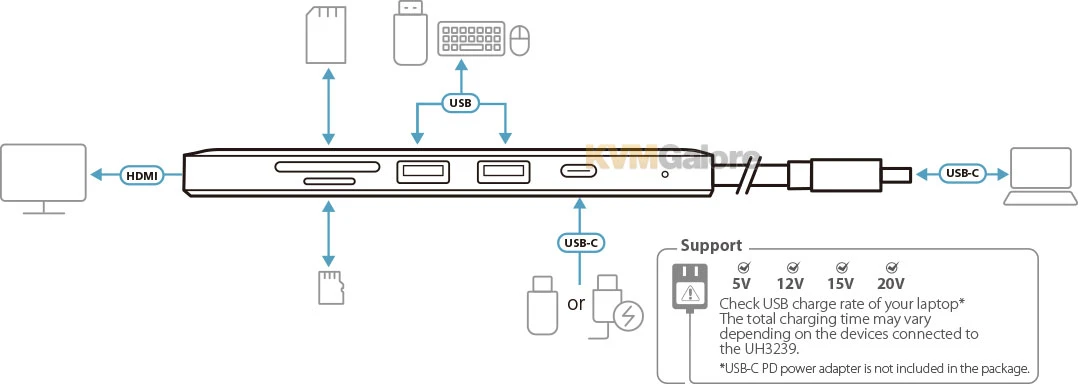

• Supports USB PD 2.0 for laptop charging up to 60W via USB-C PD power adapter – power profiles include 5V, 12V, 15V, 20V
• Supports resolutions up to 4K (3840×2160 @ 30Hz) for superior video distribution
• Works with all major operating systems: Windows, macOS X and iPadOS

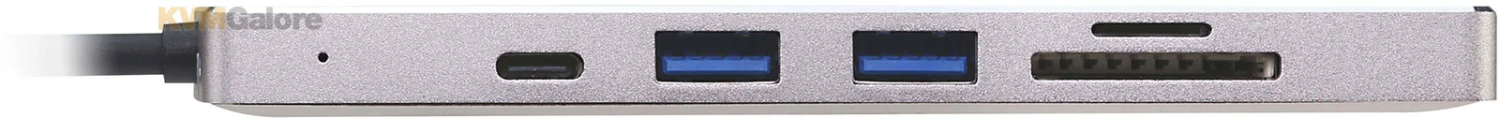

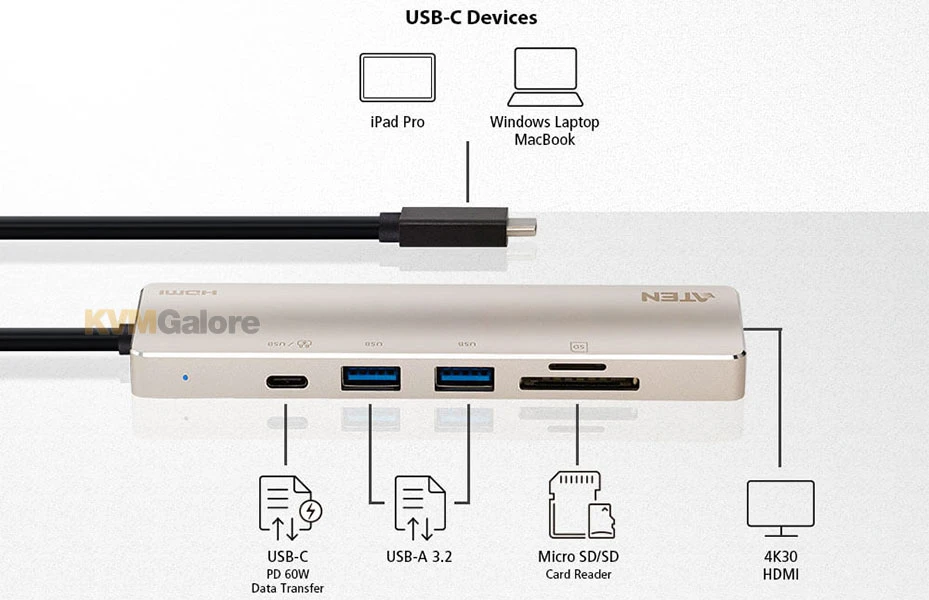

Expansion Ports
2x USB 3.2 Gen 1 Type-A (Blue)
1x USB Type-C Power Delivery
1x HDMI 4K @ 30Hz
1x SD card reader
1x Micro-SD card reader

All in a Sleek, Compact 6-Port Dock
UH3239 USB-C multiport mini dock with power pass-through is a portable, versatile and flexible 6-in-1 adapter for USB-C PCs or laptops. It provides all your essential ports in a sleek and compact device for on-the-go expansion. It’s small yet packed with powerful connectivity, all from a single USB-C port.

The durable aluminum enclosure ships with dual USB 3.2 Type-A ports, a USB-C PD port, an HDMI port along with an SD card and a MicroSD card slots. It covers users’ peripheral connectivity demands while allowing power delivery to the connected USB-C device.

It supports resolutions up to 4K HDMI (3840×2160 @ 30Hz) to ensure that every detail of the video is displayed in the crisp and sharp Ultra-HD resolution on the 4K graphics-supported laptop.

Besides, its 2 USB 3.2 Gen 1 Type-A ports guarantee effective communication with peripherals at a decent 5 Gbps transmission speed.

Thanks to the USB-C PD port, UH3239 can provide power or charge the external devices, and hence, there will be no more tangled data cables on the desk.

UH3239 is a plug-and-play device compatible with all major operating systems (Windows^®, macOS X and iPadOS). It is a compact, yet competent, data and power transmission solution for on-the-go professionals when it comes to building a mobile workstation ecosystem.

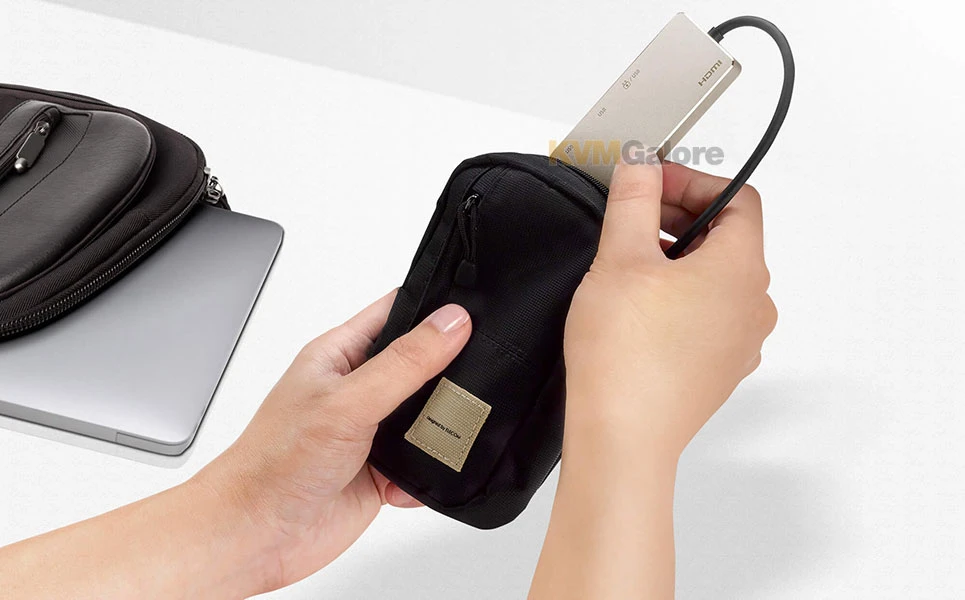

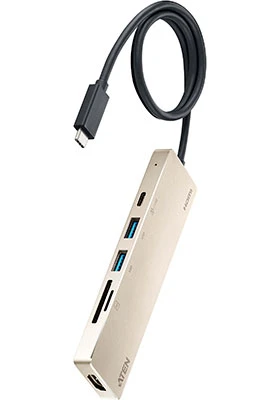

Lightweight, Compact Design with Ultra-Long USB-C Cable
Designed for maximum portability, the mini dock can easily fit into your bag or pocket, making it ideal to take with you on-the-go anywhere. The extended, built-in USB-C cable is 21 inch (55 cm) long, suitable for any setup and situation with maximum convenience.

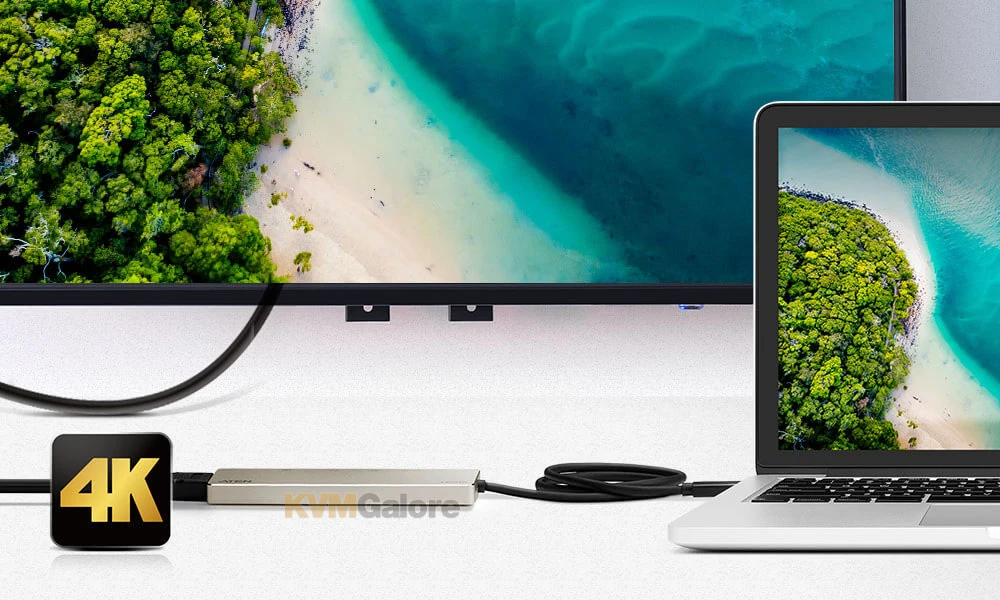

Hi-Res 4K @ 30Hz HDMI Display
Extend your viewing workspace with a single monitor for crystal-clear resolution, up to 4K @ 30Hz, for on-the-go presentations, conference calls, and video streaming.

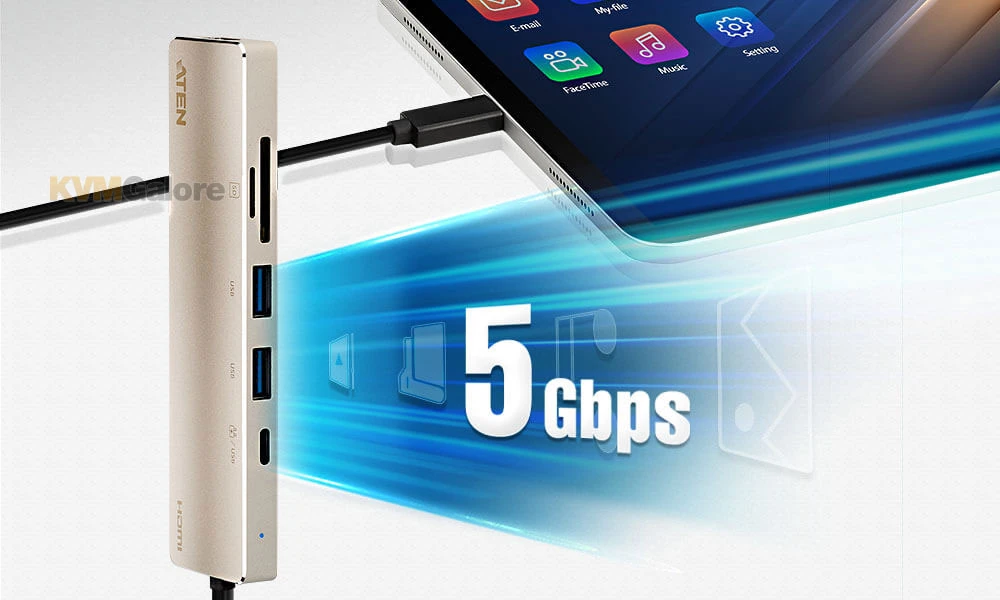

High-Speed 5Gbps Data Transfer
High-speed 2 USB Type-A ports and USB-C 3.2 port are capable of 5Gbps transfer speeds for quickly synchronizing a complete music library or a photo album.

Type-C 60W Power Delivery and Data Transfer
The USB-C port supports up to 60W power delivery providing pass-through charging for your Windows laptop, MacBook, or iPad Pro, while also supporting standard 5Gbps data transfer (power adapter not included).

Features and Benefits
• Plug and Play – no drivers needed
• Compatible with Thunderbolt™ 3 (USB-C)
• Apple M1 chip compatible

Package Includes
1 x UH3239 USB-C Multiport Mini Dock with Power Pass-Through
1 x User instructions
