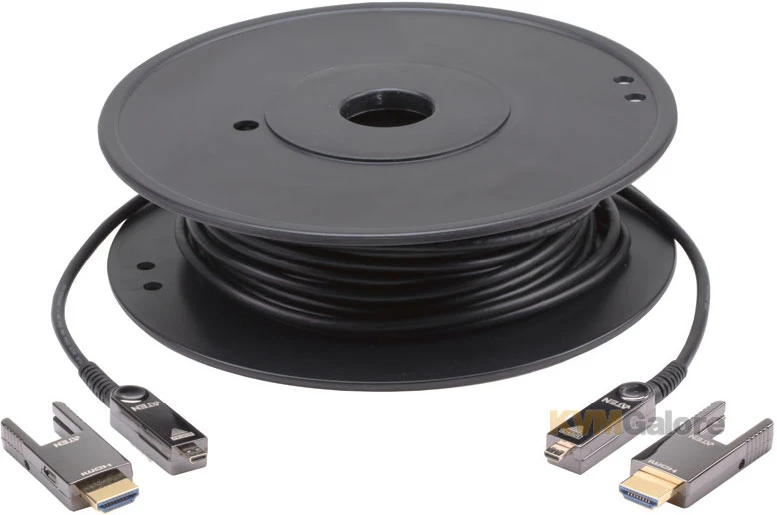

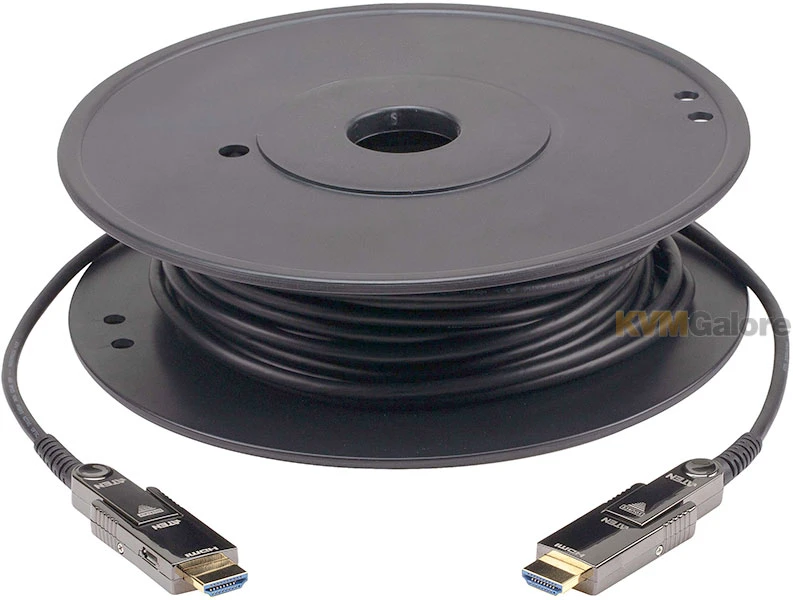

ATEN True 4K HDMI Active Optical Cable, 20 Meters

True 4K HDMI active optical cable, 20 meters

65 feet

---

• HDMI (3D, Deep Color, 4K, HDR, HEC, ARC)
• HDCP 2.2 compliant
• Extends True 4K signals 4096×2160 @ 60Hz (4:4:4)
• Reduced EMI and RFI for lower noise interference
• Pluggable gender for easy installation

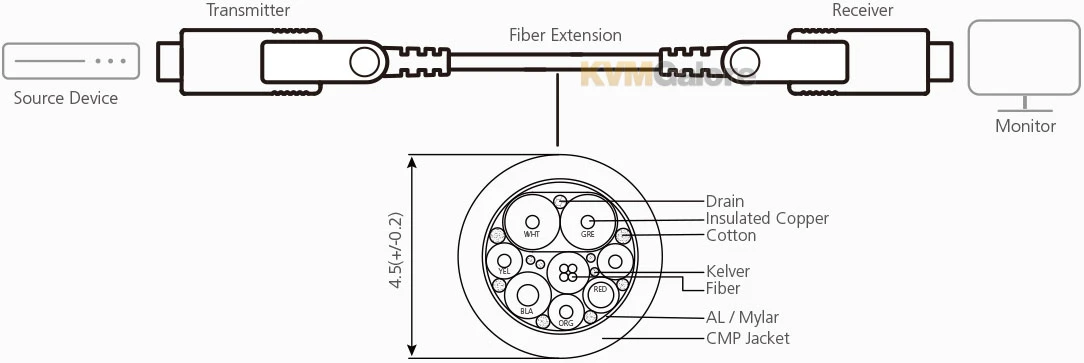

ATEN VE7832A optical cables utilize AOC technology that enables conversion between input signals and output signals for optimum high bandwidth data transmissions.

The EMI-resistant optical cables support True 4K resolution. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps.

Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions.

This cable comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports audio return channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external home theatre system or soundbar.

Engineered to meet the latest trend of integrator-friendly design, VE7832A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

True 4K / 4K HDR
VE7832A is ATEN’s premiere True 4K HDMI active optical cable. Without any compression, these cables can extend lossless True 4K signal. Whether designing Pro AV installations for the aviation industry, military, medical, or other applications, ATEN True 4K HDMI active optical cables deliver the ideal solution to make projects successful.

Supports HEC and ARC
Thanks to the support for HEC and ARC, these cables enable the transfer of Internet signal between connected devices while allowing audio signal transmission between the TV and external audio system.

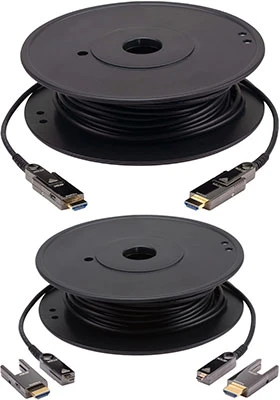

Pluggable Design
With detachable HDMI connectors, the cable can effortlessly run through a conduit and any other tight spaces, making installation much easier.

Gold-plated Connector
To prevent corrosion on the connectors, ATEN VE7832A cables are equipped with gold-plated connectors.

Reduced EMI and RFI
ATEN VE7832A cables reduce the risk of EMI (electromagnetic interference) and RFI (radio-frequency interference), guaranteeing reliable signal transmission.

Better Compatibility
To increase compatibility, an additional power source is available via Micro USB cables from both sources and displays.

Features and Benefits
• Supports HDR
• Supports HDMI Ethernet channel (HEC) – combines audio, video, and data streams into a cable to simplify the set-up
• Supports audio return channel (ARC) – connects TV and audio system, eliminating the need for an additional cable
• Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
• Robust cable pulling strength (Max. 20 kg) and compression load resistance (Max. 50 kg)
• Additional power source is available via Micro USB cable for better compatibility
• Gold-plated connectors for reliable transmissions
• Compliant with International Flame Retardant Standards: UL CMP-OF (Plenum)
• Plug-and-play

Package Contents
1x VE7832A True 4K HDMI Active Optical Cable
1x Wiring Tool
1x Screwdriver
2x Screws
1x Micro USB to USB Cable
1x Installation Notice
1x User Instructions
