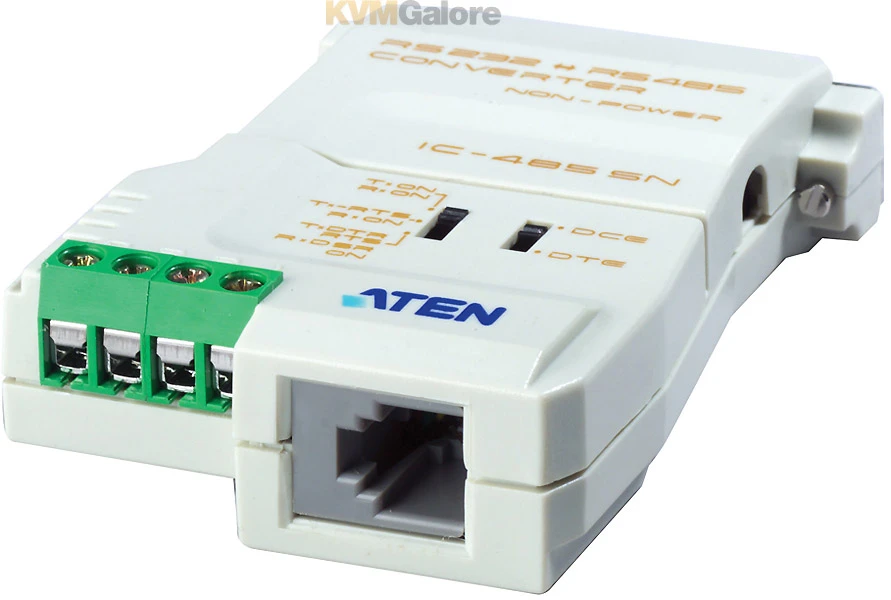

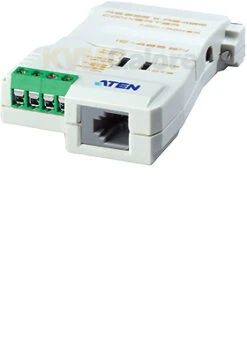

ATEN Non-powered RS-232 To RS-485/RS-422 Bidirectional Converter

Non-powered RS-232 to RS-485/RS-422 bidirectional converter

with point-to-point, multidrop and simplex/duplex Link selectability

---

IC485SN is a hardware solution to the problem of converting signals between two standards. Data transfer can take place at up to 1200 meters (4000 feet), over four or two wire cables for full or half duplex, respectively.

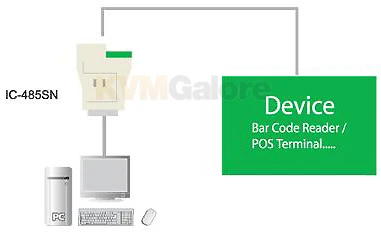

The converters can handle any RS-485/RS-422 device allowing it to function as a short haul modem or interface converter. Request to send (RTS) selection allows up to 32 receivers to be set up in a multidrop installation, making for a cost effective network configuration.

The IC485SN is a bi-directional interface converter for RS-232 and RS-485. With the IC485 series, it provides point-to-point, multidrop and simplex operations.

Features and Benefits
• Data transmission controlled by the RTS signal
• DCE/DTE selectable
• Point to point, multidrop and simplex/duplex link selectable
• Four wire (full duplex)/two wire (half duplex)
• Non-powered operation
• Compact size

Package Content
1x IC485SN bi-directional isolated converter
1x User manual
1x Warranty registration card
