ATEN 4K HDMI, USB, IR, RS-232 And Ethernet Optical Extender

4K HDMI, USB, IR, RS-232 and Ethernet optical extender

6.2 miles over singlemode duplex fiber optic cable

---

• Extends HDMI video, audio, IR, RS-232 control, and Ethernet signals over a duplex fiber optic cable
• True 4K @ 6.2 miles* (10 km) via included Duplex Single-Mode SFP+
• Lossless transmission of up to 4096×2160 / 3840×2160 @ 60Hz (4:4:4) signals
• ATEN’s exclusive FarSmooth technology – prevents lagging and freezing by matching the output rates to the input rates and ensures the 4K @ 60Hz video display to be stable, smooth and identical to the source through 10 Gbps bandwidth
• Supports transparent USB 2.0 signals for expanded connectivity with USB peripherals at a maximum transfer rate of 25MB/s

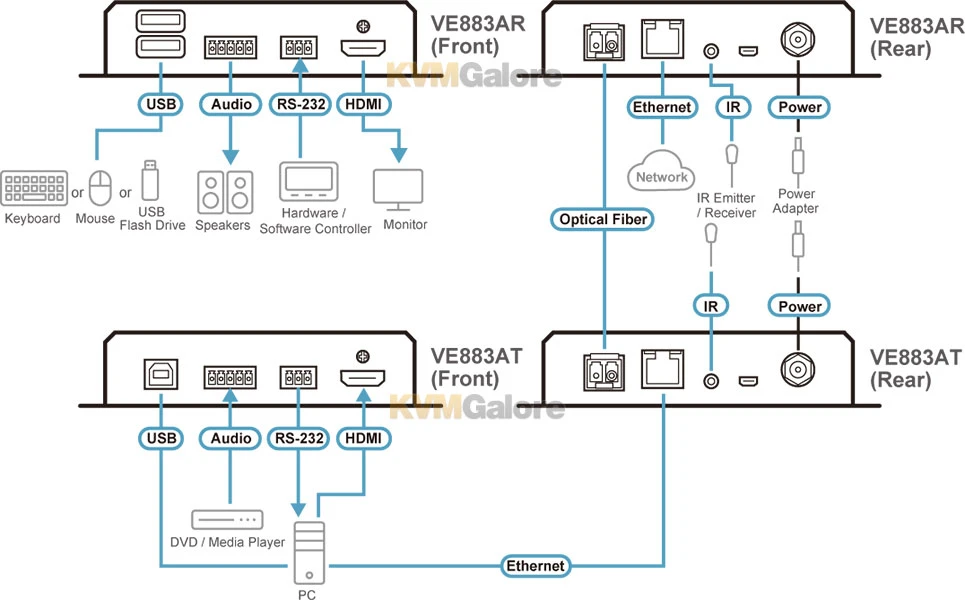

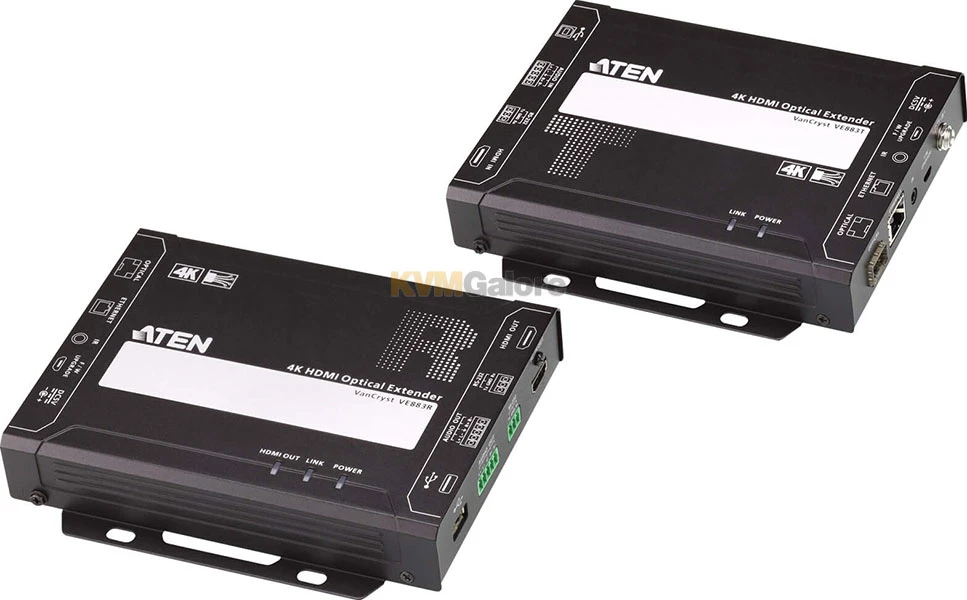

VE883AK2 is a True 4K HDMI optical extender that consists of a transmitter VE883AT and a receiver VE883AR to transmit up to 4096×2160 / 3840×2160 @ 60Hz (4:4:4) HDMI, audio, USB 2.0, IR, RS-232, and Gigabit Ethernet signals across 6.2 miles* (10 km) over a single duplex fiber optic cable losslessly.

While helping avoid bulky cable setup, fiber optic cables are electrically isolated, thus they are immune to RFI and EMI.

With ATEN’s exclusive FarSmooth technology, VE883AK2 prevents lagging and freezing by matching the output rates to the input rates and ensures that the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.

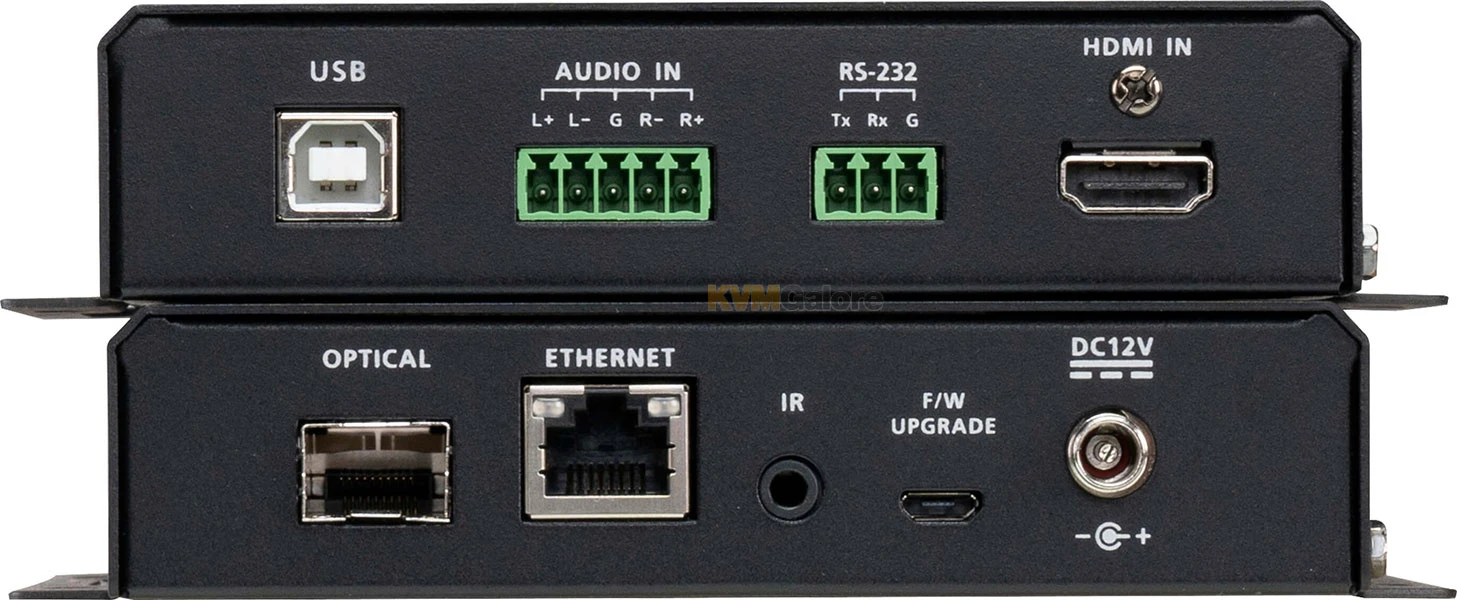

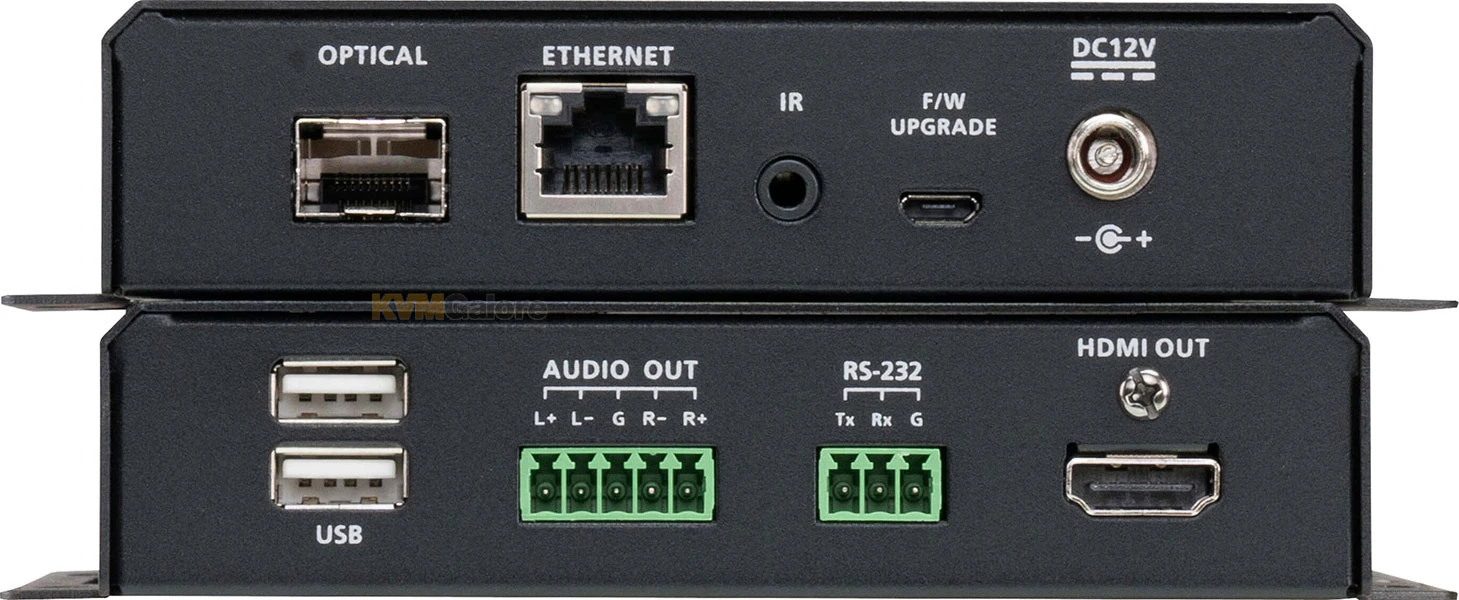

VE883AK2 comes with interfaces of HDMI input / output, analog audio input / output, USB 2.0, IR, RS-232, and Gigabit Ethernet.

Connectivity with USB peripherals is expanded thanks to VE883AK2’s dual USB Type-A ports.

For point-to-point extension, pluggable SFP+ modules are included to serve the purpose of optical connection.

Plus, VE883AK2 is compatible with ATEN’s VM7584 / VM8584 optical Input / Output board installed in ATEN’s modular matrix switches to broaden applications. It is suitable for installations where True 4K video transmission across a long distance and electrical isolation are essential, such as control rooms, factories, and hospitals.

More Features and Benefits
• HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
• Bi-directional IR signal transmission – IR transmission is processed one direction at a time, ranged from 30 kHz to 56 kHz
• Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
• Supports batch upgrades using Firmware Upgrade Utility
• Built-in 8 kV / 15 kV ESD protection
• Plug-and-play
• Hot-pluggable
• Rack-mountable

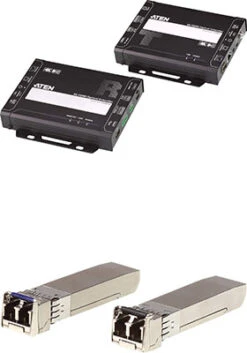

Package Contents

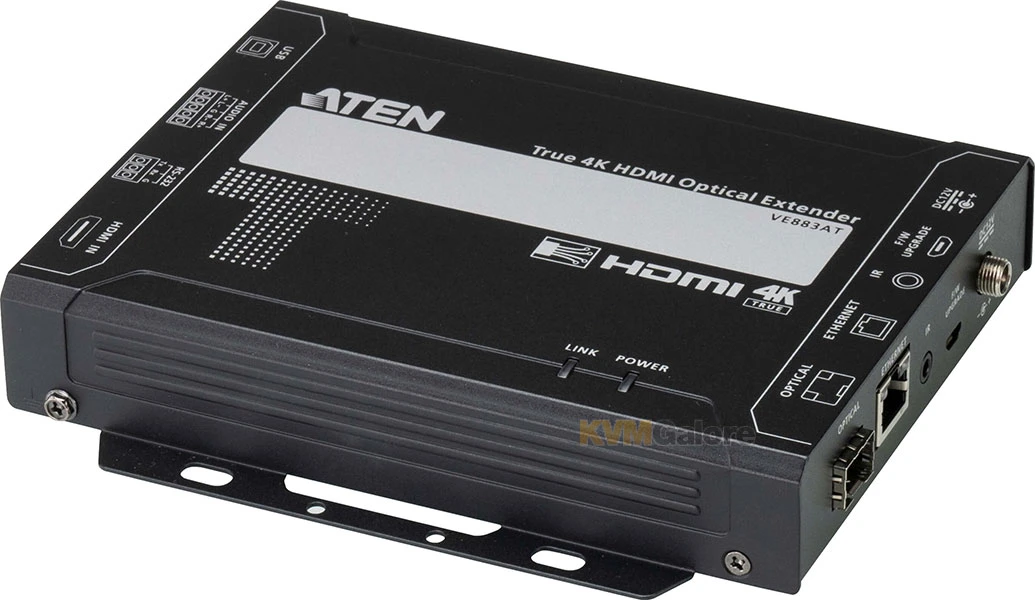

1x VE883AT True 4K HDMI optical Transmitter

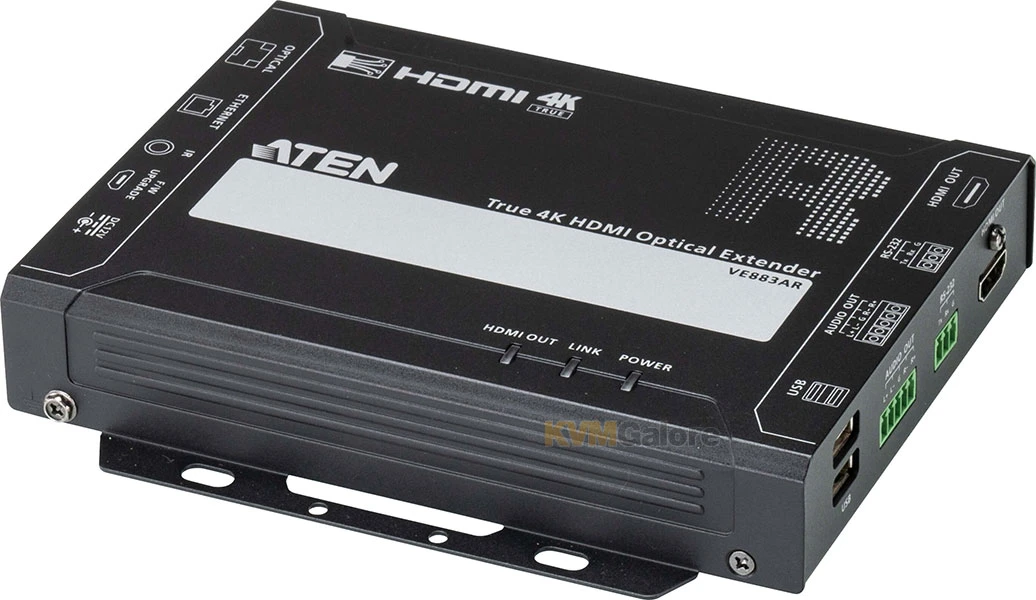

1x VE883AR True 4K HDMI optical Receiver
2x Power adapters and power cords
2x 3-pole terminal blocks
2x 5-pole terminal blocks
1x IR receiver
1x IR emitter
1x USB Type-B to USB Type-A cable
2x HDMI LockPros

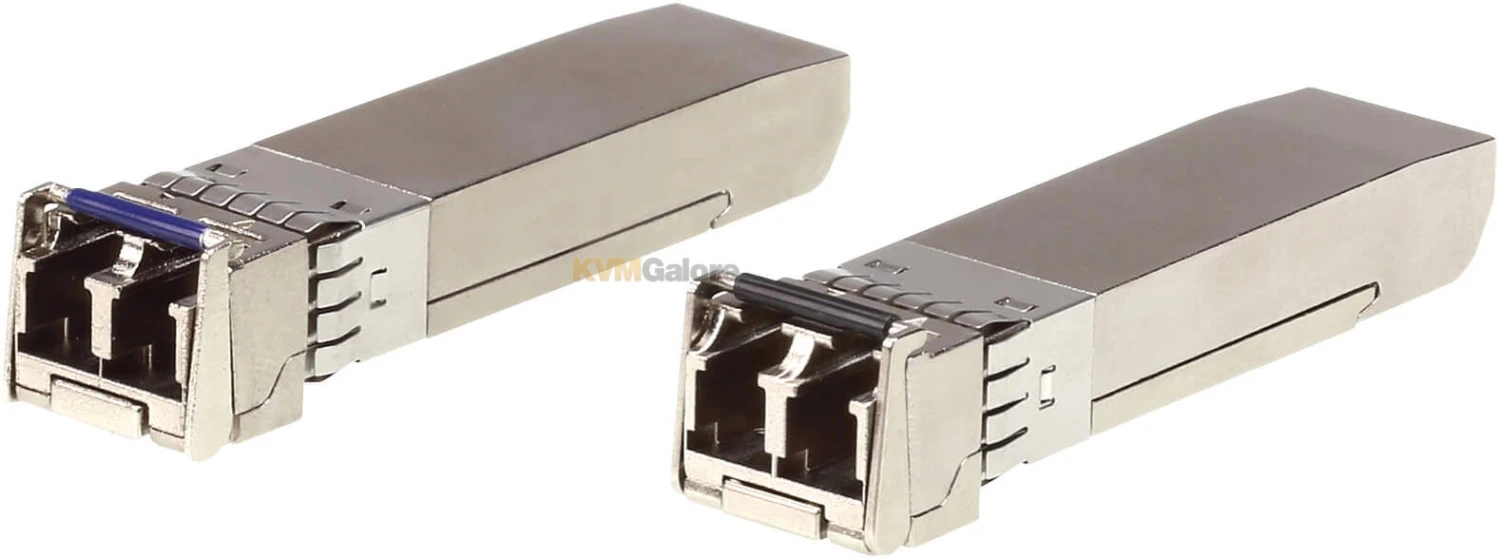

2x SFP modules: 10 Gbps/10 km SFP+ Duplex Single Mode Transceivers
1x User instructions

Notes
* The maximum transmission distance may vary depending on the fiber type, bandwidth, connector splicing, losses, model, chromatic dispersion, environmental factor, and kinks.
• ATEN recommends using Single-Mode fibers that conform to IEC 11801 (OS1, OS1a, OS2) specifications.
• The Device is class 1 laser product. It meets the safety regulations of IEC/EN 60825-1, 21 CFR 1040.10, and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
