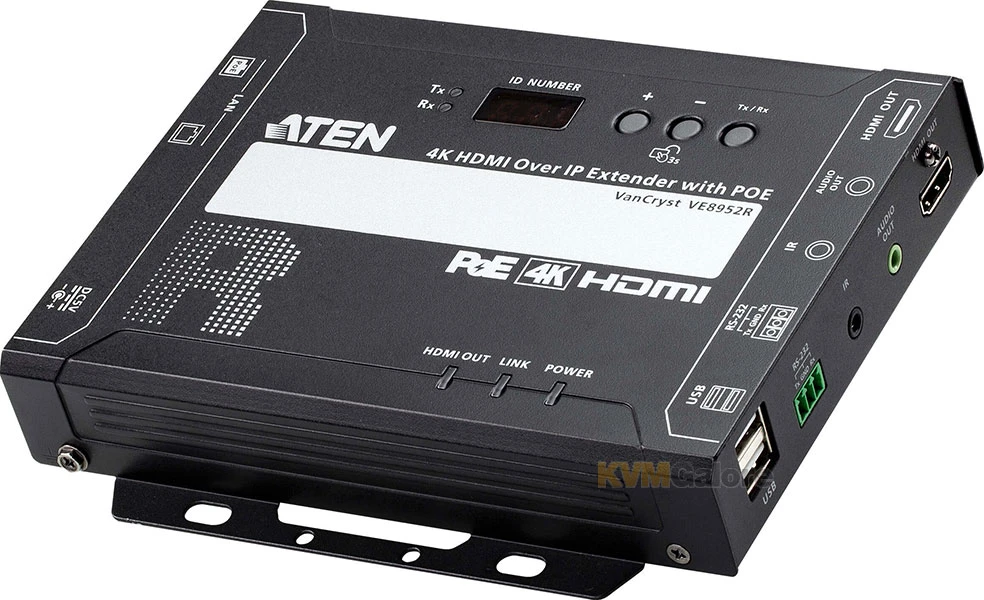

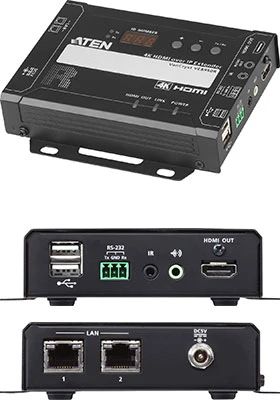

ATEN 4K HDMI Over IP Receiver with PoE

4K HDMI over IP receiver with PoE

Note: Transmitter units are purchased separately

• Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
• Delivers visually lossless high-quality video up to 4K @ 60 Hz 4:2:0 and 4K @ 30 Hz 4:4:4
• Daisy chaining – Connects multiple displays through a single port
• Video wall support

ATEN VE8952R video over IP receiver with PoE delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch.

VE8952R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:
• Limitless scalability and flexibility – From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications
• No complicated IP setup – Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience
• No additional server PCs or software required – Effortlessly manage your AV over IP system by logging in to any receiver from the intuitive web GUI with drag and drop operation
• Go further for less with daisy chaining – Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs
• Locate anywhere without the need for power cabling – With PoE support, you can easily place VE8952R units where they are needed the most without having to install additional power cabling and outlets
• Flexible control with mobile app – Manage and control any VE8952R with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.

Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, VE8952R video over IP receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

Lightweight Compression with Ultra-low Latency
• Delivers visually lossless high-quality video up to 4K @ 60 Hz 4:2:0 and 4K @ 30 Hz 4:4:4
• Ensures stunning quality video using ATEN advanced video lossless compression technology
• EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens

Power over Ethernet Support
Locate VE8952 anywhere without having to install additional power cabling and outlets

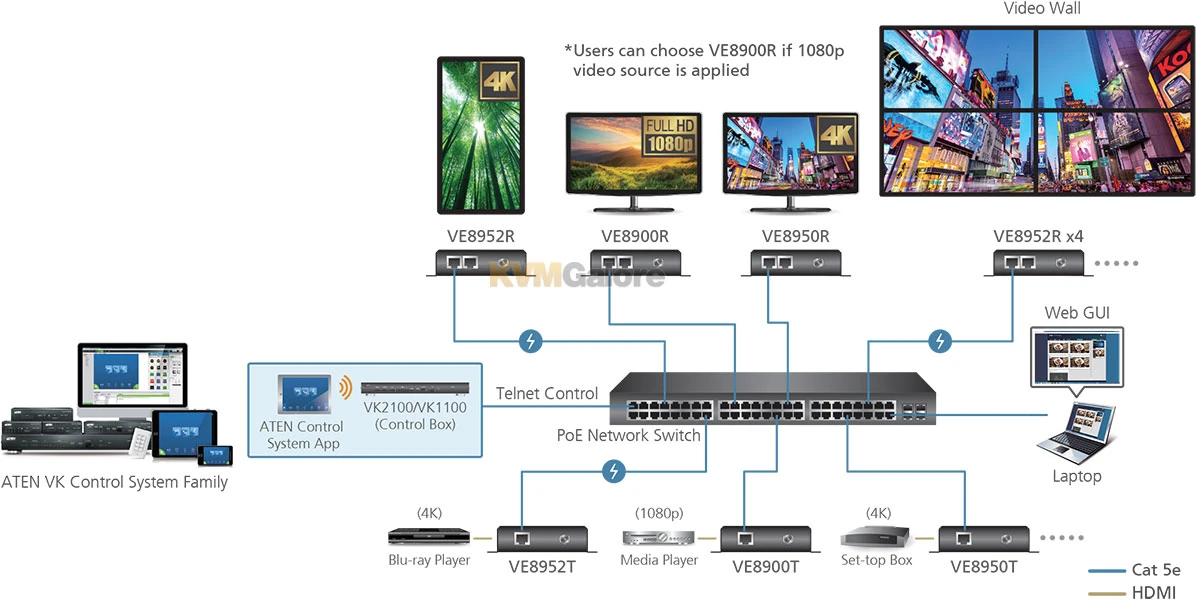

Limitless Scalability and Flexibility
From a simple point-to-point setup, to hundreds of endpoints, VE8950 offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.
• Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
• Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
• Mix and match 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signals to match the maximum resolution of the connected display devices

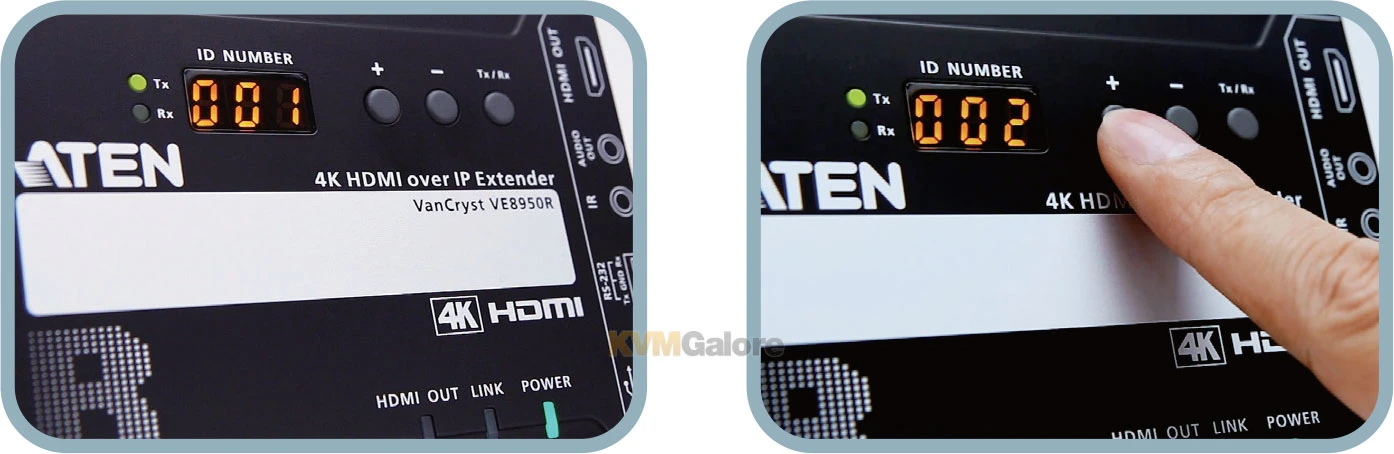

No Complicated IP Setup
VE8950 allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.
• Simple configuration that requires no extensive IT experience or extra learning
• Effortlessly switches among input sources via top panel pushbuttons

No Additional Server PCs or Software Required
Effortlessly manage your AV over IP system by logging in to any receiver or transmitter from the web GUI.
• Supports web GUI for device management
• No additional server PCs, control boxes, or software/drivers are needed

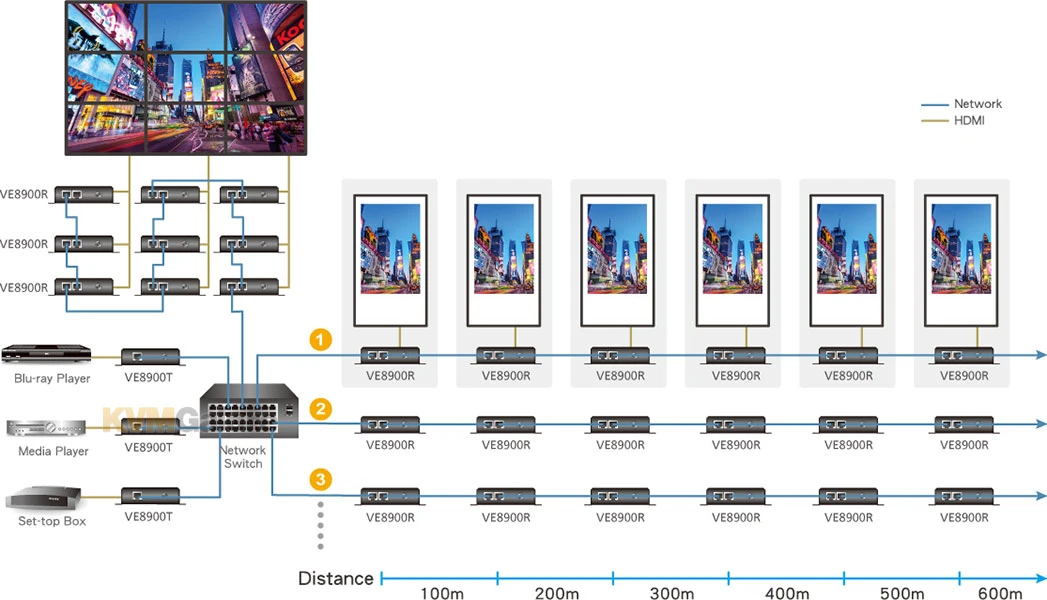

Go Further for Less with Daisy Chaining*
Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.
• Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
• Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
• Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers

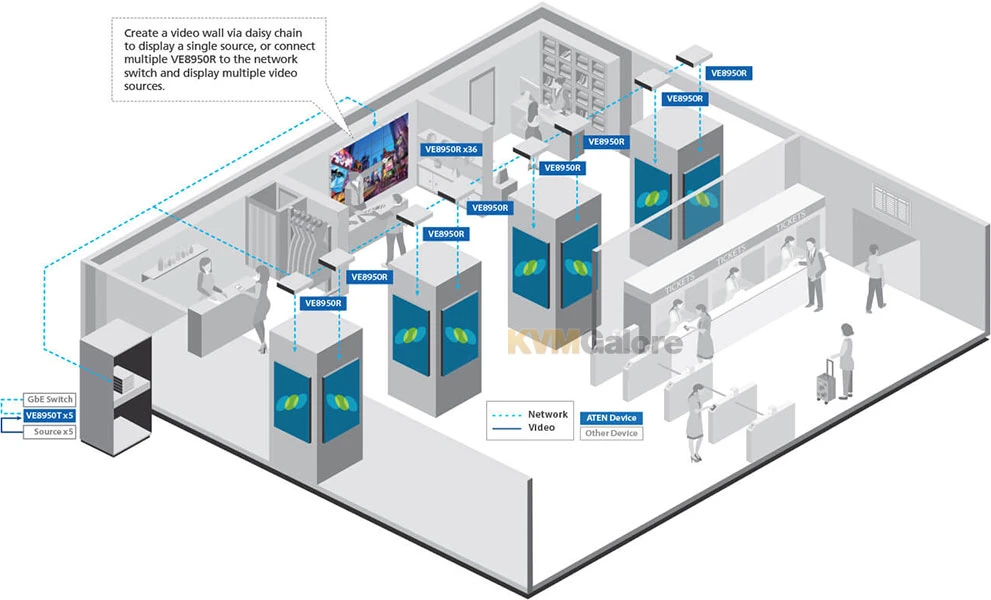

Video Wall Support
• Supports up to 8×8 video wall (64 displays)
• Supports horizontal or vertical (90° rotation) display orientation
• Easily switches layout profi les, preview and drag-and-drop video sources via the intuitive web GUI

Embedded / De-embedded Audio Support
• Audio stream can be extracted from the HDMI stream and delivered as a separate audio signal

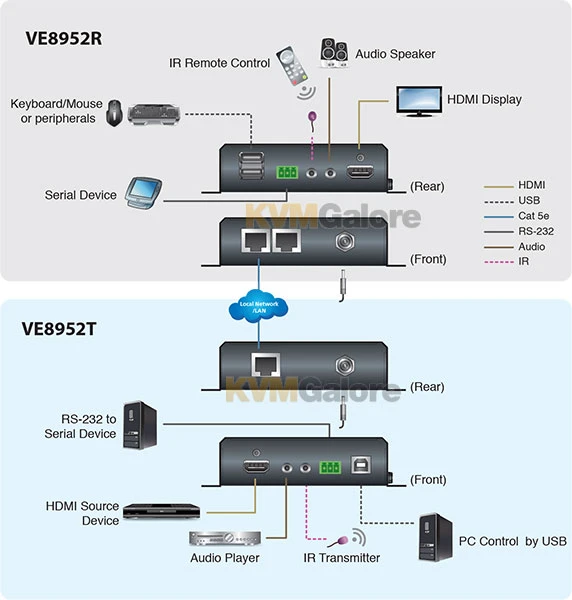

Multiple Control Channels
• Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
• USB connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals**
• Bi-directional IR channel – IR transmission is processed one way at a time
• RS-232 channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners

Collaboration with ATEN Control System
• Compatible with ATEN Control System, allowing users to directly operate VE8900/VE8950/VE8952 via CLI Telnet, RS-232 protocol, or Mobile Control App
• Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad

Spontaneous Scheduling Management
• Offers an user-friendly scheduling management function for users to pre-plan the display schedule
• Provides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervals
• Integrates all VE89 units to arrange the profile by grouping individual receiver or video wall
• Multiple profi les can be arranged to play in any order over a selected period of time

Web GUI-Based Management, No Additional Server PCs or Software Required

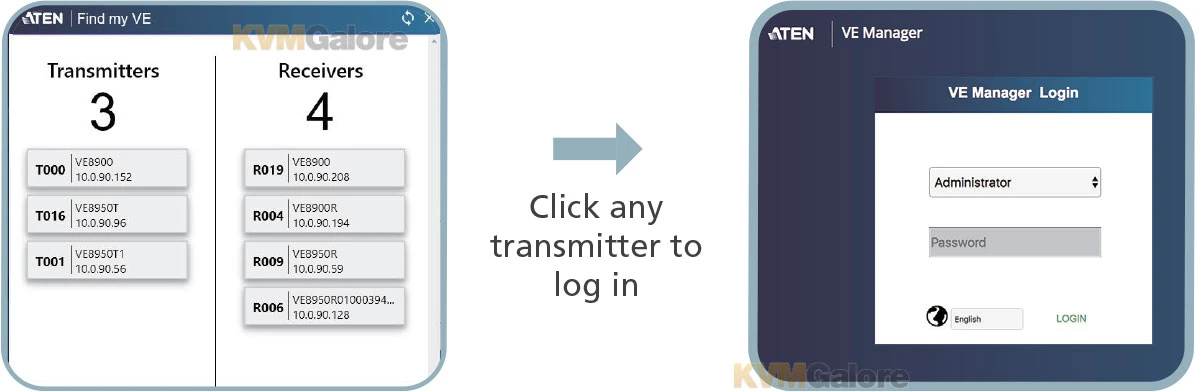

• Simple Access – Without typing IP address on Chrome browser, users are allowed to directly link to VE Manager via one click on “Find My VE” Chrome based free tool

Package Contents
1x VE8952R 4K HDMI over IP Receiver with PoE
1x RS-232 Terminal Block
1x Power Adapter
4x Foot Pads
1x User Instructions

* Depending on your network architecture, ATEN recommends daisy chaining up to 30 units. VE8952 does not support PoE in daisy chain architecture.
** Each transmitter can be controlled by a total of 4 USB touch screens installed to receivers.
