ATEN 4-port USB To Serial RS-232 Hub

4-port USB to serial RS-232 hub

compliant with USB 1.1 and USB 2.0

---

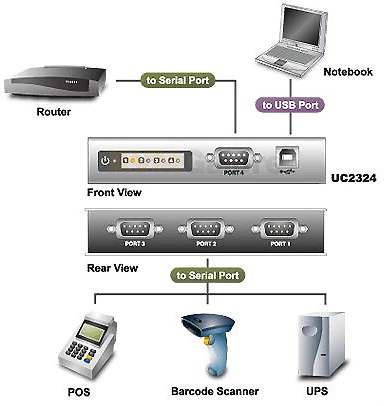

ATEN’s UC2324 is a USB to RS-232 converter which offers the user 4 serial port connections through USB interface. People can connect multiple serial devices through one USB port on their system.

Each serial port offers a data transfer rate up to 115.2 Kbps for high performance.

UC2324 provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.

Features and Benefits
• Easy way to add 4 RS-232 serial ports
• Fully compliant with USB 1.1 and USB 2.0
• Support RS-232 interface
• Support automatic handshake mode
• Up to 115.2Kbps data transfer rate for each serial port
• Support remote wake up and power management
• Dual data buffers for each upstream and downstream data transfer
• No IRQ, DMA, I/O address resources required
• Supports hot-swapping and plug-and-play
• Built-in 16KV ESD protection
• Supports both bus power and external power

Package Content
1x UC2324
1x USB Cable
1x Installation Disk
1x User Manual
1x Quick Start Guide
