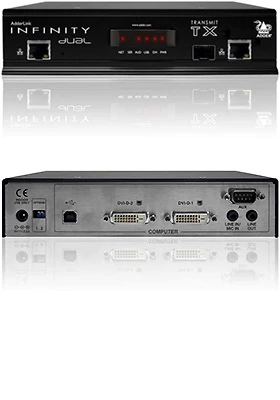

ALIF2002T: Dual Link DVI, Dual Head DVI, Dual IP Carrier Type (copper & Fiber) Network DVI/USB Extender

ALIF2002T: Dual link DVI, dual head DVI, dual IP carrier type (copper & fiber) network DVI/USB extender

pure digital media extension over IP featuring dual head & dual link video, digital audio, USB true emulation, network multicast, device switching and EPG style user interface, with Magic Eye functionality

---

Note: Receiver units are purchased separately

AdderLink INFINITY Dual allows you to build a flexible infrastructure, the likes of which have not been possible before. Locate computers anywhere you like, share connections to computers, watch the interactions others have with computers, share control, collaborate, switch computers, and so on.

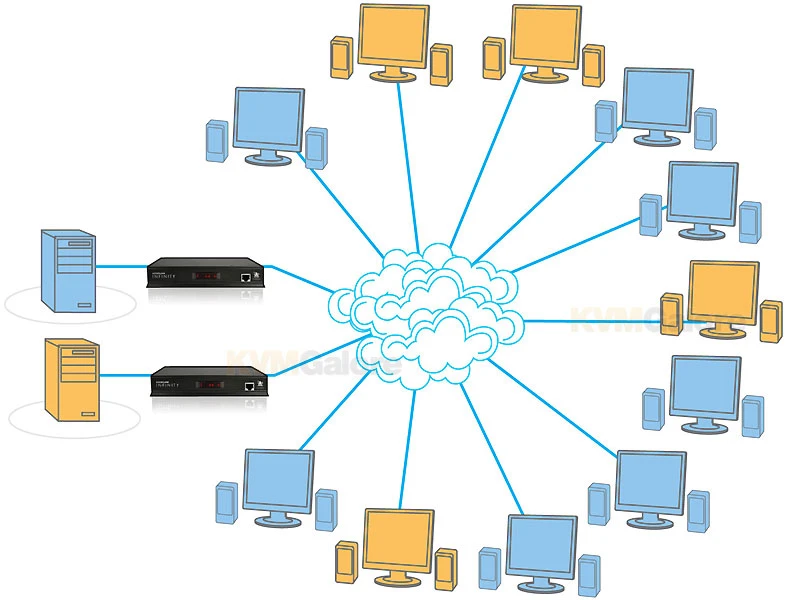

AdderLink INFINITY range is also the first of its kind to allow multicasting across your network. AdderLink INFINITY Dual interfaces USB peripherals such as the keyboard, mouse or graphics tablet, together with DVI for the video display, over a layer 3, standard gigabit ethernet network, on copper or fiber.

AdderLink INFINITY Dual is fully compatible with AdderLink INFINITY and AIM Management Interface.

Learn more…

The Magic Eye feature reduces network traffic by ignoring small variations in the video from frame to frame. When it is used with Apple Macs and other host computers that have dithered video output, Magic Eye allows AdderLink INFINITY to transmit high frames rates, providing instant mouse response and smooth video playback. It can also be used to improve performance if the video source is noisy (e.g. from a VGA-to-DVI converter).

Dual Link or Dual Head DVI
AdderLink INFINITY Dual features full DVI connectivity for either dual link or dual head applications. DVI delivers native digital video signals from your computer to your digital panel (LCD for example) without the need to convert signal types from the digital domain. By delivering native digital video throughout the AdderLink INFINITY network, you can be assured of accuracy on each and every pixel.

Network Topology – CATx or Fiber

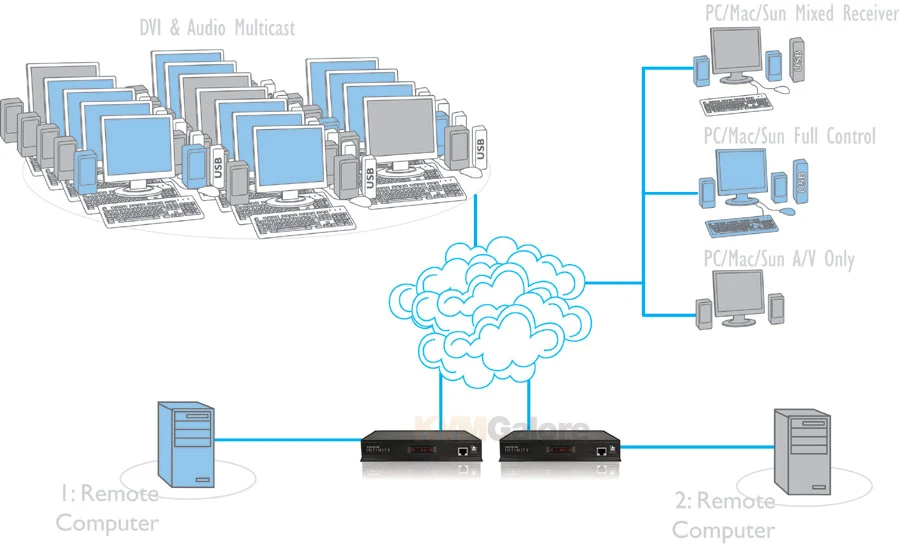

You can configure your network topology to best suit your needs. If you simply want to extend one computer Tx to one user Rx, you can do so by connecting both Tx and Rx units via a low cost CATx cable or fiber. Distance is not limited – a single copper network cable will deliver IP traffic up to 100 meters away. If you want to go further, simply add a network switch in to achieve an additional 100 meters. This can be done as many times if you wish. AdderLink INFINITY network is assumed to be a private network which you manage. As such, you can control maximum data rates generated by each Tx unit to ensure absolute stability.

Perfect Digital Video
AdderLink INFINITY makes use of multiple video encode technologies devised by Adder to deliver the very best picture available. Adder’s encoding systems are spatially lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer.

USB True Emulation
Like AdderLink INFINITY, AdderLink INFINITY Dual enables you to connect any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Furthermore, most other USB devices can also be attached, such as Mass Storage devices.

Wireless Connectivity
Because of the efficient manner in which AdderLink INFINITY Dual constructs data for IP transmission, it is perfectly reasonable to make use of standard off-the-shelf wireless routing to connect either Rx or Tx units to your network. Typical desktop applications (word processing, datasheet etc.) will use very little bandwidth.

USB 2.0
AdderLink INFINITY Dual uses USB 2.0 connectivity to interface with your keyboard and mouse, and any other peripheral you wish to use. USB is the most broadly used computer peripheral interface standard available.

Digital Stereo Audio
AdderLink INFINITY Dual delivers crystal clear stereo audio digitally across the network. This ensures continuous fidelity and channel separation between the Tx and Rx units, or even in Multicast environments.

AIM / API Control
Using AIM gives access to advanced management functions including an EPG style on screen displaying a window which appears in front of the users screen detailing the channels available to them. An administrator can specify different channels and permissions for each user.

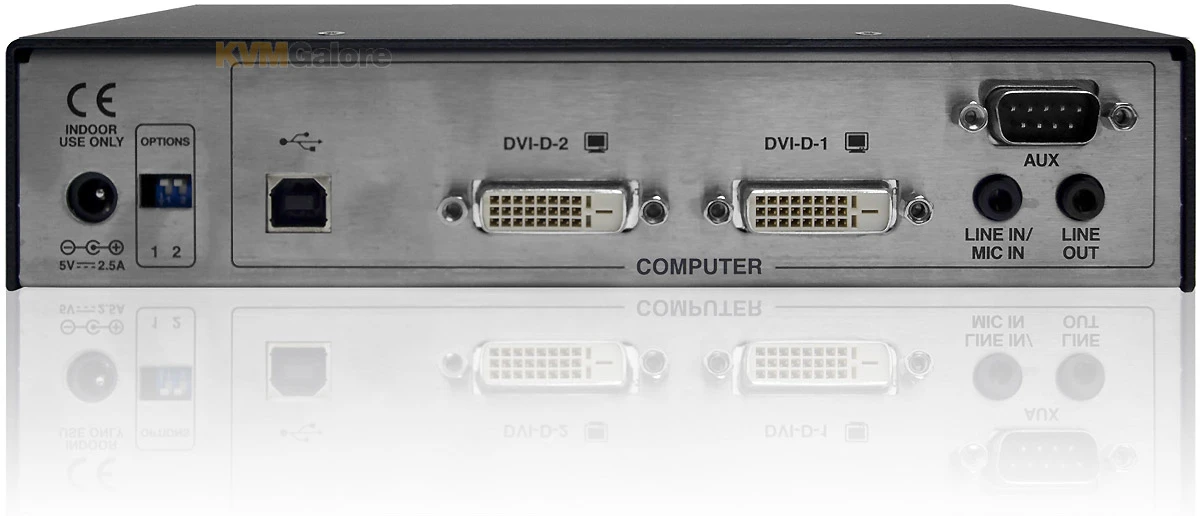

RS232 Interface
AdderLink INFINITY Dual includes a bidirectional RS232 interface which can be used to connect devices such as touch screens, simple printers or to control external equipment, and feedback remote data sources.

In the Box
1x ALIF2002T unit
1x DVI-D and USB KVM cable
1x Single link DVI-D to DVI-D video cable
2x Audio cables (3.5mm stereo jacks)
1x Power adapter (20W) and US power cord
4x Self-adhesive rubber feet
1x Quick start guide
1x Safety document
