9-Input ProScale™ Presentation switcher/scaler

9-Input ProScale™ presentation switcher/scaler

with speaker outputs

---

• 9-inputs (Component; DisplayPort; 3G HD-SDI; HDMI; VGA; Composite)
• 4-outputs (HDMI; VGA; 3G HD-SDI; Twisted-Pair)
• PixPerfect™ Scaling Technology
• Fade-Thru-Black Clean Ultra Fast Switching
• Mass Notification Emergency System
• K-IIT XL™ Picture-in-Picture
• Luma Keying via PiP Window
• Output Resolutions – Up to 2K and 1080p
• Speaker Outputs – 2x10W Power Amplifier
• Control – RS-232, IR and Ethernet
• Size – Standard 19″ (1U – Rack “ears” included)

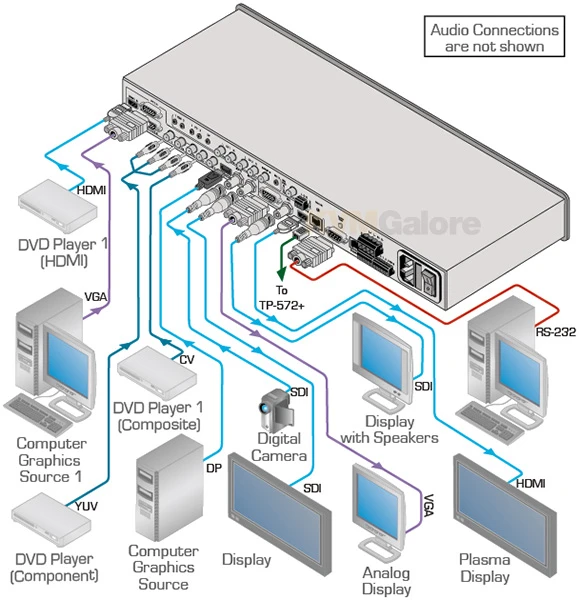

VP-771 is a high-quality presentation switcher and scaler for a variety of signals. It accepts one of nine inputs: component video, DisplayPort (DP), 3G HD-SDI, two computer graphics, two composite video and two HDMI signals.

It scales the video, embeds the audio, and outputs the signal to one HDMI, one computer graphics, one 3G HD-SDI and one DGKat TP, together with digital audio, unbalanced stereo and a 2×10-watt amplified balanced stereo speaker output.

Features and Benefits
• K-IIT XL™ Picture-in-Picture Image Insertion Technology – Ultra-stable picture-in-picture, picture-and-picture, and split screen capability. Any video source can be inserted into or positioned next to any other video source with full window positioning and sizing controls.
• Kramer’s PixPerfect™ Scaling Technology – Kramer’s precision pixel mapping and high quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down scaling of all video input signals.
• Ultra-Fast Fade-Thru-Black ( feetB™) Switching – Video switching transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth, glitch-free switching. The output signal provides constant sync so the display never glitches.
• Advanced Deinterlacing Functions – Method, sync, selectable film modes, diagonal correction and motion detection sensitivity, 3:2 and 2:2 pull-down; 24sf handling.
• HDTV Compatible.
• HDCP Compliant – The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output.
• Multi-Standard Operation – SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
• Advanced Input and Output EDID Management.
• Mass Notification Emergency Communication System (MNEC) – Activates a national or campus-wide notification, immediately displayed when an emergency situation develops. It uses automatic text overlaying, either via a crawler or a full screen cover up, as well as an optional audio alert.
• DGKat™ Signal Integration – Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
• Range – Up to 90m (295 feet) at 1080i or up to 30m (98 feet) at 1080p on shielded Kramer CAT 5 cable. Up to 90m (295 feet) at 1080i or up to 70m (230 feet) at 1080p on shielded Kramer CAT 6 cable. Up to 100m (330 feet) at 1080i or up to 90m (295 feet) at 1080p on shielded Kramer CAT 7 cable. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
• Video Inputs – Component (Y, Pb, Pr) video on RCA connectors, DisplayPort (DP), SD/HD/3G HD-SDI (including SDI loop) on BNC connectors, 2 computer graphics on 15-pin HD connectors, 2 composite video on RCA connectors and 2 HDMI.
• Scaled Outputs – HDMI, computer graphics on a 15-pin HD connector, SD/HD/3G HD-SDI on a BNC connector and DGKat twisted pair on an RJ-45 connector.
• SDI Channeling – Select one active signal and three bypassed signals from eight embedded stereo audio channels.
• Multiple Output Resolutions – Up to 2K and 1080p.
• HDMI Deep Color Support.
• Luma Keying – Via PIP window.
• Vertical Keystoning.
• Built-in ProcAmp – Color, sharpness, contrast, brightness and gamma are set individually for each input.
• 3D Comb Filtering – Provides the best quality color separation for composite video inputs.
• Built-in Time Base Corrector – Stabilizes unstable video sources.
• Powerful Noise Reduction Filters – Temporal, block, mosquito and combing.
• Picture Zooming – Both on main and PIP window from 100% to 1600%, including separate V and H sharpness control.
• Multiple Aspect Ratio Selections – Follow input, follow output, best fit, letterbox and overscan.
• Dual Window Display – Preset picture-in-picture, picture-and-picture and split screens, as well as customized window layouts.
• Audio Inputs – 2 HDMI, 2 computer graphics and 1 DisplayPort and 1 microphone in on 3.5mm mini jacks; 2 CV and 1 S/PDIF on RCA connectors.
• Audio Outputs – 1 S/PDIF on an RCA connector, 1 unbalanced stereo audio on a 3-pin terminal block connector.
• Built-in Audio Power Amplifier – 10W per channel audio amplifier with speaker outputs.
• HDMI Audio – Embeds/de-embeds HDMI audio with delay of 0-90msec for lip-sync correction.
• Microphone Input – Supports mix and talk-over features, as well as 0-90msec delay to prevent feedback.
• Non-Volatile Memory – Saves final settings.
• Firmware Upgrades – Via Ethernet and RS-232.
• Flexible Control Options – Front panel buttons, contact closure, OSD (on-screen display) via front panel buttons or IR remote (remote control included), Control Application so feetware for use via Ethernet and RS-232.
• Selectable Power Save Modes.
• Worldwide Power Supply – 100-240V AC.
