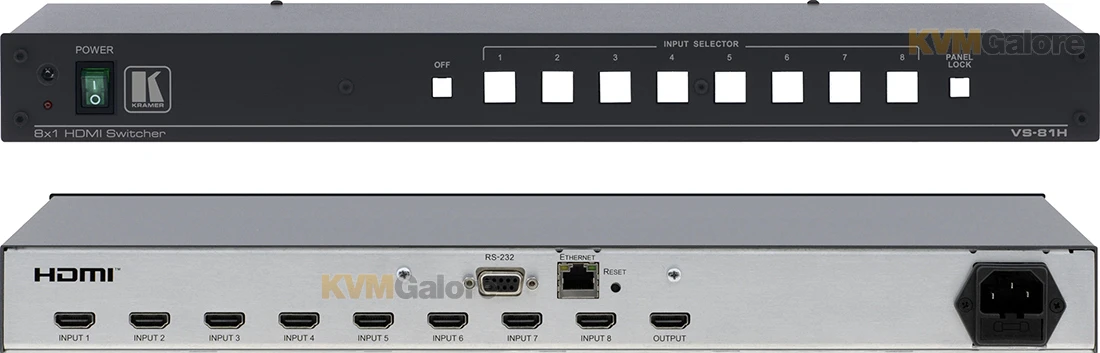

8-port HDMI Switcher

8-port HDMI switcher

• Max. Data Rate – 6.75Gbps (2.25Gbps per graphic channel)
• HDCP Compliant
• Reclocking and Equalization
• Control – RS-232, Ethernet and IR
• Size – 19″ (1U)
• Audio – E

VS-81H is a high-performance switcher for HDMI signals.

VS-81H reclocks and equalizes the signal and switches one of the 8 inputs to a single HDMI output.

Applications

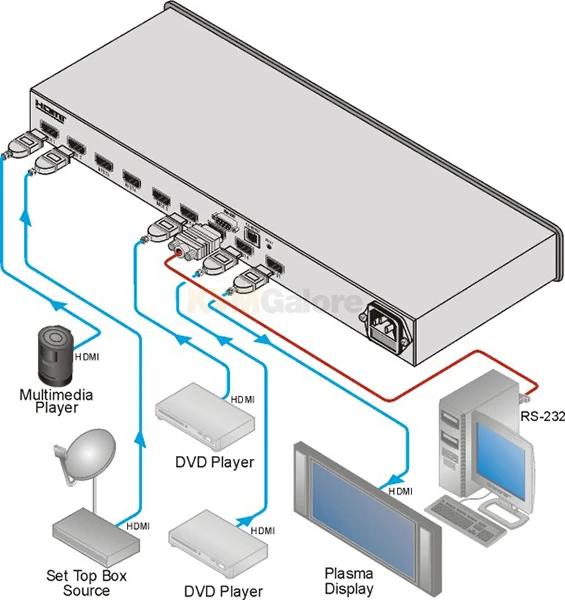

• Conference room presentations and advertising applications.
• Rental and staging.

Features and Benefits
• Max. Data Rate – 6.75Gbps (2.25Gbps per graphic channel).
• HDCP Compliant.
• HDTV Compatible.
• HDMI Support – Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
• 3D Pass-Through.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling and processing algorithm ensures Plug and Play operation for HDMI systems.
• Dual Mode – PC and DVD Modes selectable by input.
• Flexible Control Options – Front panel, RS-232 (K-Router™ Windows®-based software is included), Ethernet and IR remote (included).
• Video Disconnect.
• Front Panel Lockout.
• Kramer Equalization and re-Klocking™ Technology – Rebuilds the digital signal to travel longer distances.
• Worldwide Power Supply – 100-240V AC.
• Standard 19″ Rack Mount Size – 1U. Rack “ears” included.
