4K60 4:2:0 USB-C Transmitter

4K60 4:2:0 USB-C transmitter

with RS-232 and IR over Long-Reach HDBaseT

---

• USB-C input with up to 60W charging
• Up to 230 feet (70 m) at 1080p
• Up to 130 feet (40 m) at 4K @ 60Hz (4:2:0)

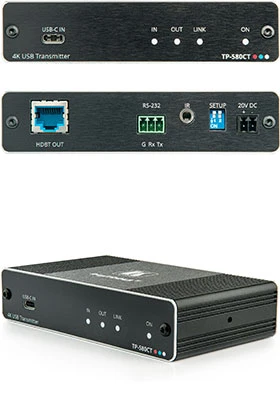

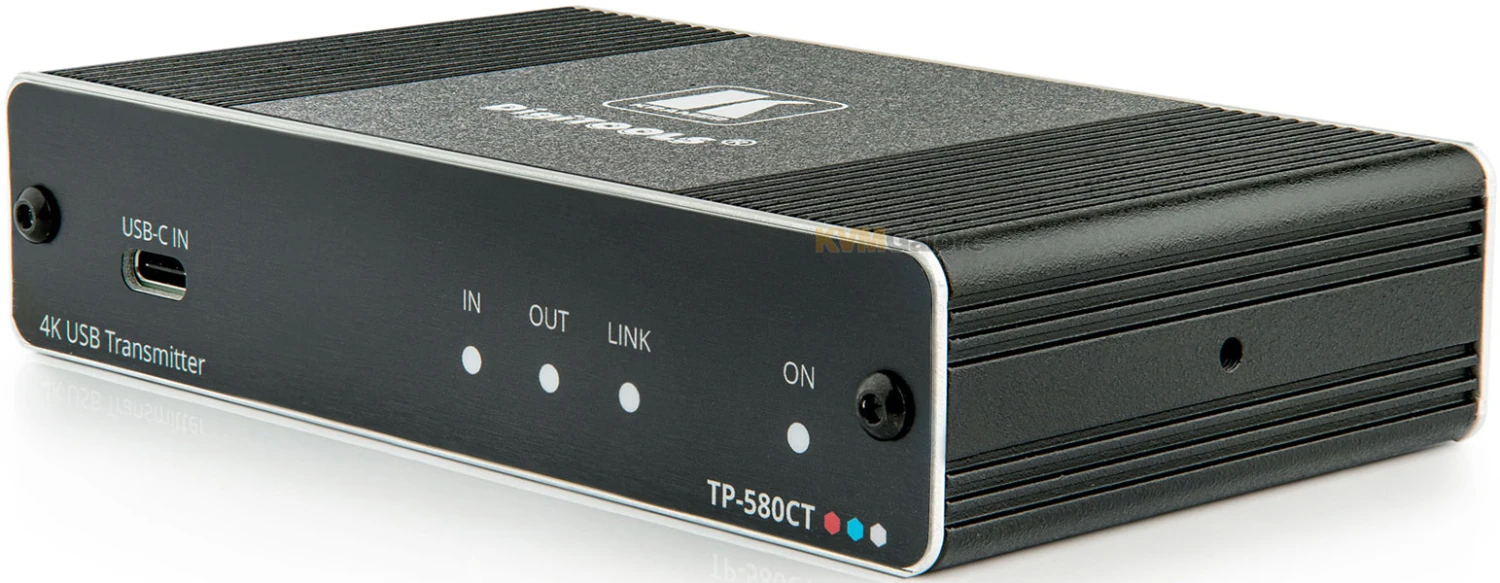

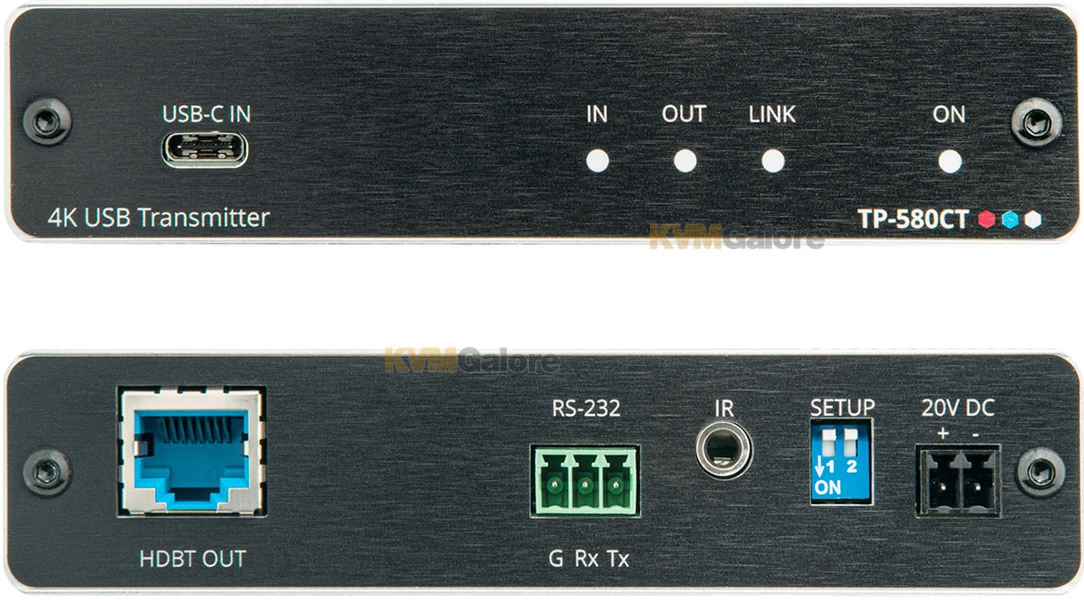

TP-580CT, which is connected directly to USB-C-enabled chargeable sources, is a high-performance, long-reach HDBaseT transmitter for 4K @ 60Hz (4:2:0) USB-C video, RS-232 and IR signals over twisted pair.

TP-580CT converts the USB-C input video signal, along with all other input signals, into the transmitted HDBaseT signal.

It extends video signals up to 130 feet (40 m) over CAT copper cables at up to 4K @ 60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Exceptional Quality
• High-Performance Standard Extender – Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures – TP-580CT is a standard extender that can be connected to any market-available HDBaseT-compliant extension product
• HDMI Signal Extension – HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0

Advanced and User-friendly Operation
• BYOD Ease and Convenience – Connect any DP-Alt-Mode-capable USB-C device as an AV presentation source, while providing the connected device (if PD-2.0-capable) with up to 60 watts of power
• Easy Installation – Compact DigiTOOLS^® fan-less enclosure for dropped-ceiling mounting, TBUS IN-table mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter

Flexible Connectivity
• Multi-channel Audio Extension – Up to 8 HD channels of digital stereo uncompressed signals for supporting studio -grade surround sound
• EDID signals are passed through between the source and the display
• Bidirectional RS-232 Extension – Serial interface data flows in both directions, allowing data transmission and device control
• Bidirectional Infrared Extension – IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line

Applications
• BYOD presentations in enterprise meeting rooms and education classrooms

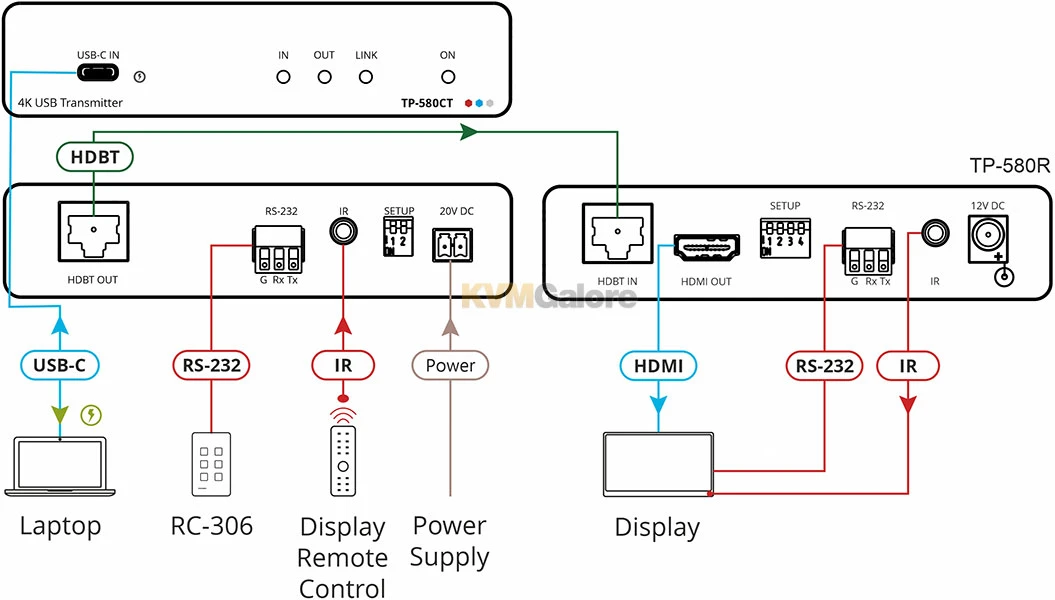

• Long-distance AV signal extension in conference rooms, boardrooms, classrooms, and lecturing facilities
