4K60 4:2:0 HDMI Audio/video Decoder Over IP

4K60 4:2:0 HDMI audio/video decoder over IP

unicast or multicast, with PoE, HDCP 2.2, infrared, RS-232, and USB support Note: Encoder units are purchased separately

---

• High-performance, real-time 4K60 4:2:0 video/audio/RS-232/IR/USB over standard 1G network
• Supports HDCP 2.2

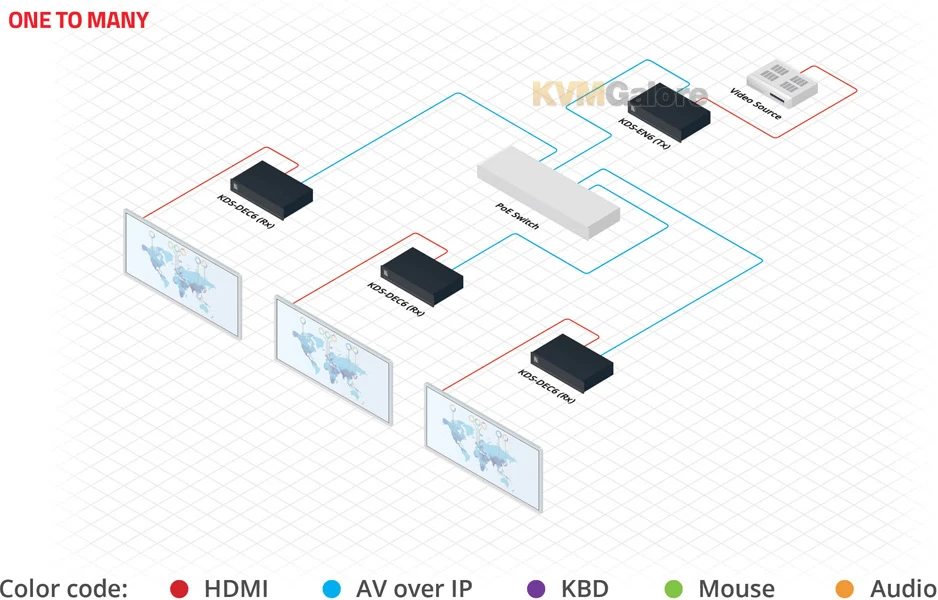

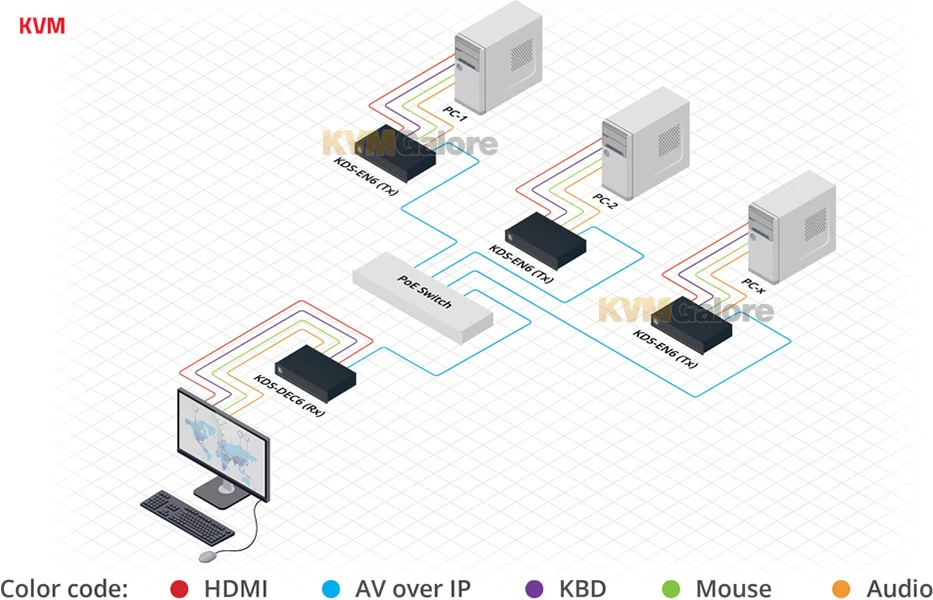

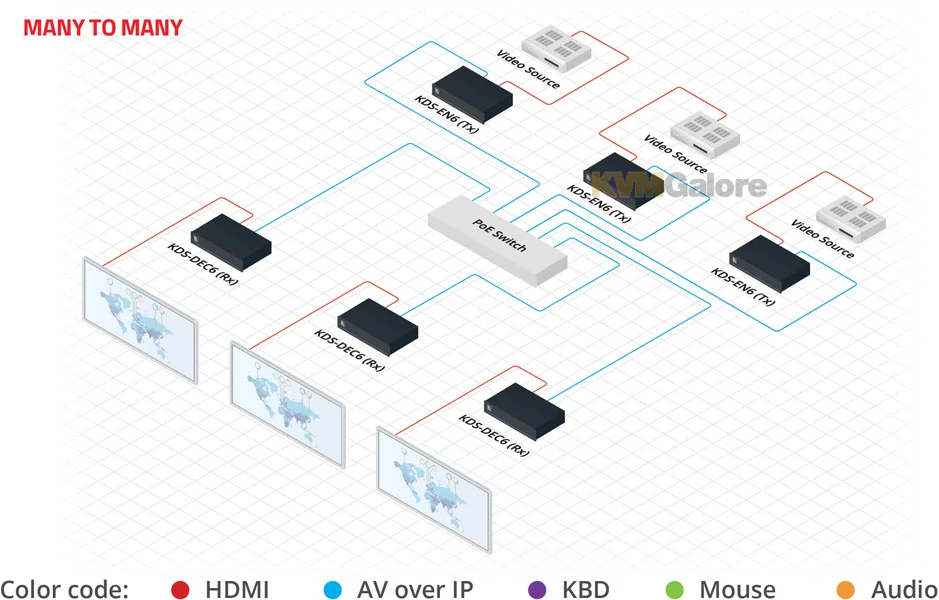

• Scalable enterprise grade one to many/many to many/video wall/KVM-over IP media distribution
• Analog audio embedding/de-embedding

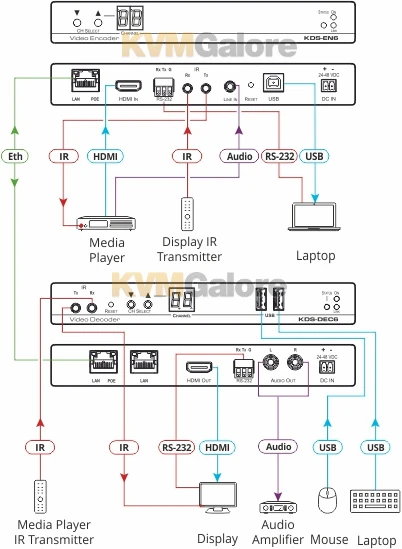

• RS-232/IR/USB extension

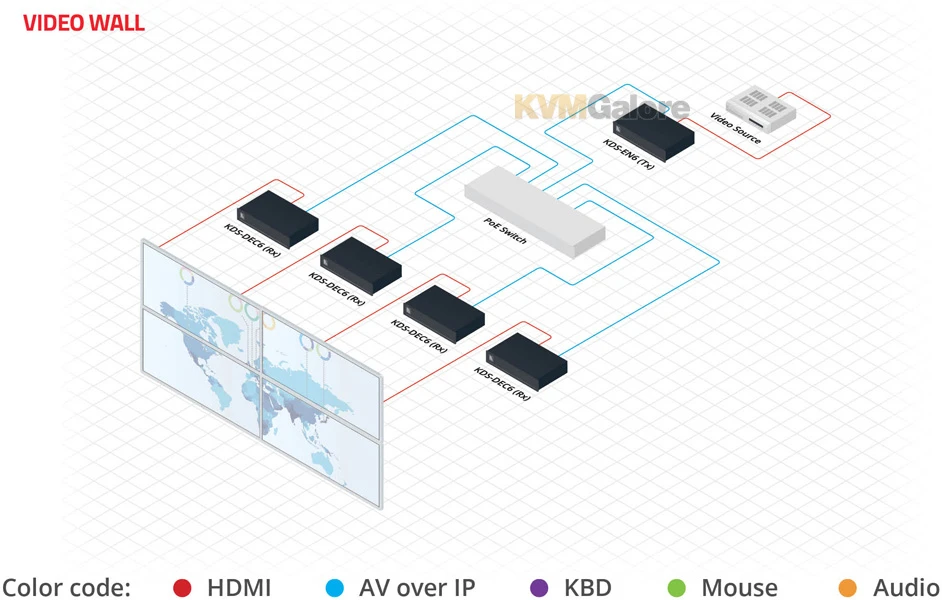

• 16×16 video wall
• Control via OSD menu, embedded web UI, and open API

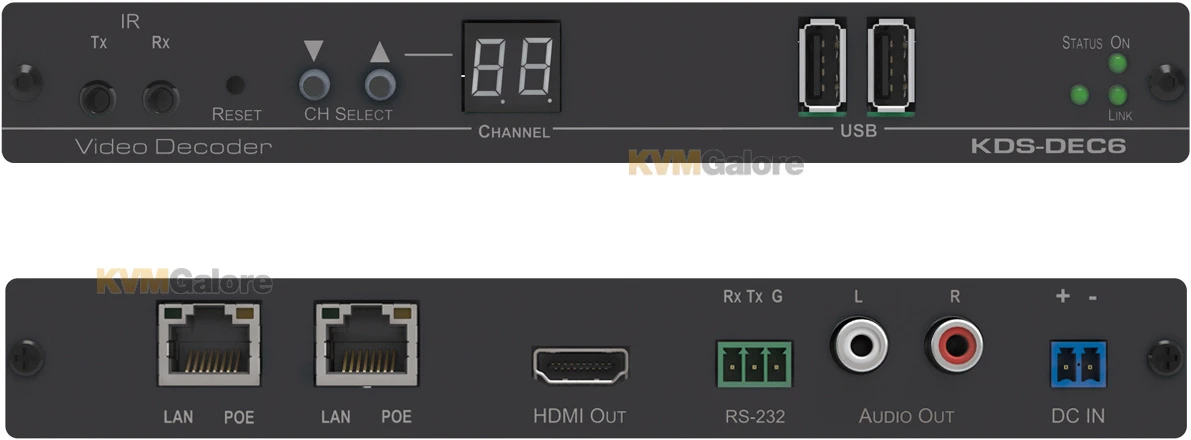

Kramer MegaTOOL^® KDS-DEC6 decoder provides AV streaming over an IP network that carries 4K @ 60Hz (4:2:0) video, audio, IR, RS-232 and USB over IP with HDCP 2.2 in unicast (one-to-one) or multicast (many-to-many) configurations.

Features and Benefits
• Video Support – HDMI 4K @ 60Hz (4:2:0), HDMI 4K @ 30Hz (4:4:4)
• Audio Support – HDMI/line in, 7.1 PCM, Dolby True-HD, and DTS-HD Master audio
• Virtualization – IR, USB, RS-232 over IP
• Network – Managed switch, 1G, multicast, jumbo frames, IGMP snooping layer 2
• Power – PoE or external power supply
• Control – Kramer Network, Kramer Control, Web UI, API
• HDCP – 2.2 compliance
• PiP and flexible video wall setups

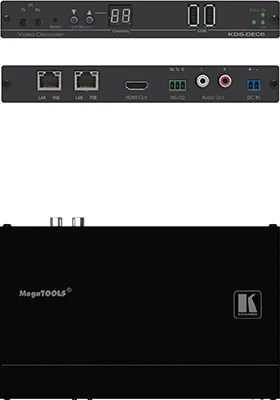

• Size – MegaTOOLS^® letting you mount two units side-by-side in a 1U rack space with the optional RK-T2B rack adapter

Applications
• Real-time essential installations such as sports bars and interactive solutions.
• AV distribution systems with one or more sources and many displays in schools, universities, and public venues.
• Long-distance transmission of signals using existing wires and infrastructure in corporate offices or government applications.
• Advanced applications requiring recording, archiving, scaling and more.

In the Box
1x Video decoder [KDS-DEC6]1x Bracket set for TOOLS
4x Rubber feet
1x Quick start guide
