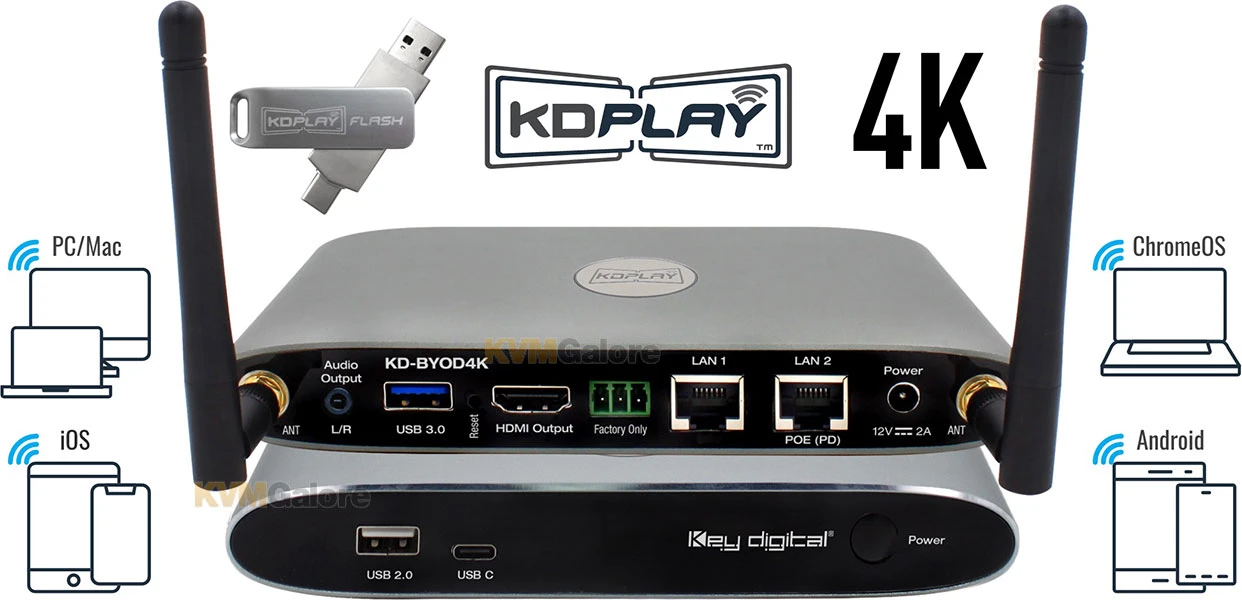

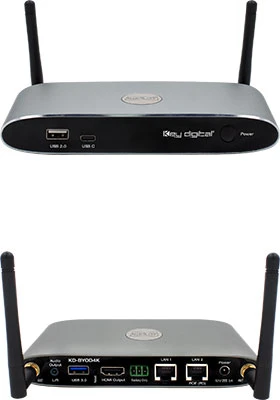

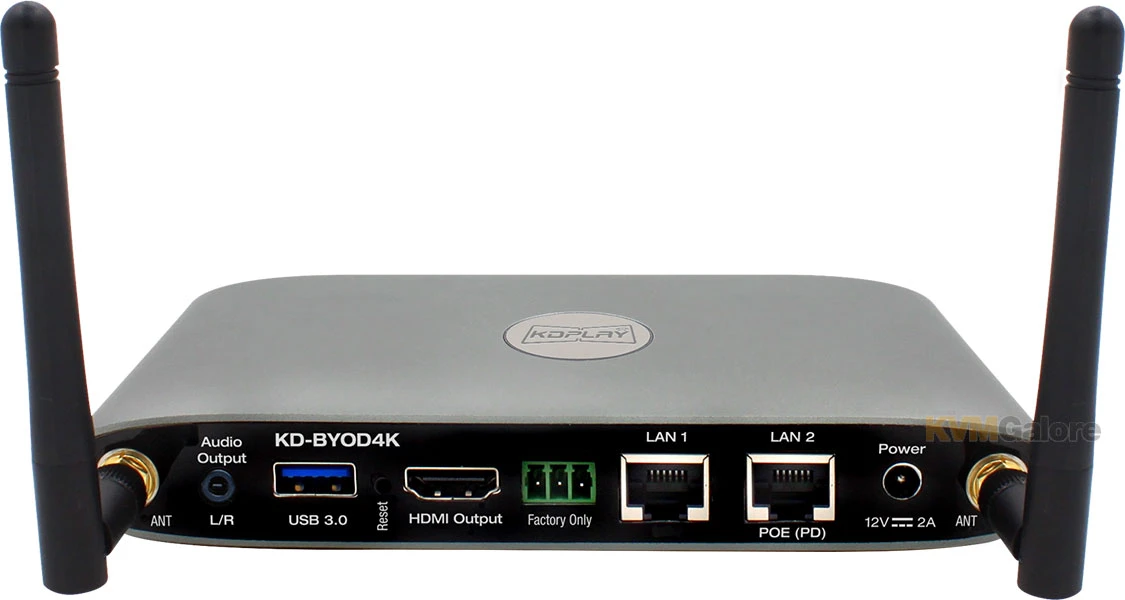

4K Wireless Presentation Gateway For PC, Mac, IOS, Android And Chrome Devices

4K wireless presentation gateway for PC, Mac, iOS, Android and Chrome devices

with screen mirroring via LAN or WiFi; power over Ethernet; HDMI and analog audio output; USB keyboard/mouse, and annotation control

---

KD-BYOD4K wireless presentation gateway for the KDPlay™ system enables presenters to cast content to their display or projector from their Windows, Mac, or Chrome OS laptops, iPads, iPhones, Android tablets or phones via WiFi.

Multiple attendees may cast simultaneously, encouraging teachers and students, trainers and participants, all to collaborate regardless of their connection type and without the hassle of
wires.

KD-BYOD4K features annotation, moderator management and touchscreen/mouse control for a true interactive experience. Easily load KDPlay™ application onto your laptop from the unit’s web page or plug in the included KDPlay Flash™ to auto launch. Additional Flash™ may be purchased separately.

Android users download the KDPlay™ app, iOS devices natively cast using AirPlay, and Chrome OS devices cast desktop or tabs from Chrome browser.

KD-BYOD4K’s dual network ports enable access via employee and guest network for easy internet access.

KD-BYOD4K supports 4K output resolution as well as full-screen or auto sizing multi-presenter viewing modes.

Features and Benefits
• Wireless Presentation Gateway: Connect via WiFi to wirelessly cast content from device
• Bring Your Own Device: Cast from Windows and Mac computers or Android devices using KDPlay™ software and app. Cast from iOS devices with AirPlay. Cast from Chrome OS using Chrome browser tool for tab or desktop
• Smooth Video: Glitch-free AV experience due to optimizations for video content
• Multi-Presenter Mode: Up to four presenters may share content at same time with auto adjusting screen layout – User preference layout setup for three or four presenters allows for optimal window placement based on usage
• Easy Connection: Up to 16 simultaneous devices may connect, with access always provided to new connecting devices and automatic disconnect of oldest non-casting devices in case of maximum being reached
• KDPlay™ Flash Included: Software auto-launcher with USB and USB-C connections allows (additional KDPlay™ Flash sold separately)
• 4K/UHD Source and Display: Supports incoming signals and outputs at 4K/UHD for optimal clarity of spreadsheets and data content
• Annotation and White Board: Screen overlay tools for real-time collaboration; screen captures are downloaded by QR code or in web browser
• Extended Monitor: Feature enables dual display setups such as video conference and presentation content view on side-by-side panels
• WiFi Direct or LAN Connection: May act as the wireless access point, or may be accessed by devices via the connected network
• Content Preview: Collapsible dock on side of display provides preview thumbnail and name of devices casting via KDPlay app
• Touch Screen / Mouse Forwarding: Connect touchscreen or mouse USB to unit to point and click on casted device
• Moderator Management: Administrator may start and stop device casting via web control page
• Customizable Home Screen: Load customer’s logo or desired image to show signage and branding when not casting
• Web GUI Administration: Access unit setup, moderator, and security tools on web browser through LAN
• Four-Level Security: Including casting / pairing pin and Device-type permission options, AES-256 + RSA-1024 encryption
• Simultaneous Secure Dual Network: Two network ports enable concurrent connection to public and private networks for ease of guest access without compromising security
• Video Resolution: Selectable 4K 3840×2160 @ 30fps or 60fps [4:2:0] 10.2Gbps, 1920x1080p @ 60fps, 1280x800p @ 60fps, 1280x720p @ 60fps output resolution options based on EDID from connected display
• Audio De-embedding: Audio of the casted device is de-embedded at the unit’s analog L/R audio connector for ease of integrating with audio amplification and mixing systems

Package Includes
1x KD-BYOD4K wireless presentation gateway
2x Antenas
1x Power adapter
1x Phoenix terminal
1x KDPlay flash
