4K Ultra-HD 6-port HDMI Auto Switcher

4K Ultra-HD 6-port HDMI auto switcher

and PoE provider over HDBaseT

---

• Resolution up to 4K @ 60Hz (4:2:0)
• PoE source for HDBaseT receivers
• Supports extended range of HDBaseT out (330 feet @ 4K)
• RS-232, Ethernet control: Local and over HDBaseT
• Max. data rate of 8.91Gbps
• Selectable switching – manual or fast auto switching
• Auto power off when no HDMI input
• Size – Desktop – Mount 2 units side-by-side in a 1U rack space with the optional RK-1 adapter
• Audio – B

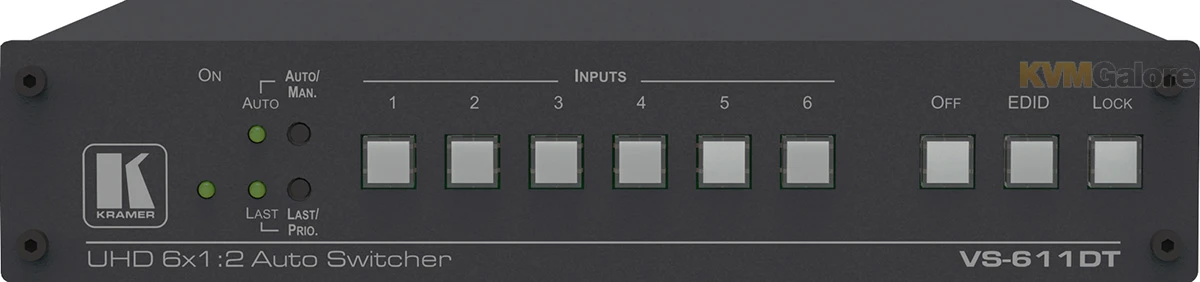

VS-611DT is a high-performance automatic switcher for HDMI video signals with resolution up to 4K @ 60Hz (4:2:0).

With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher-priority video signal is introduced.

The output signal is distributed to HDBaseT and HDMI 4K @ 60Hz (4:2:0) outputs.

Fast Switching
Older display devices required a longer time between the loss of one digital signal and the introduction of another, as well as a physical disconnection of the interconnecting cable in order to be able to detect and adjust to the new video attributes and parameters. Normal switching, therefore, introduced a 5V signal disconnection along with a delay in switching. Many newer display devices, however, are now capable of “on-the-fly” switching.

Depending on the display device in use, VS-611DT allows for fast switching (minor reset and the connection kept alive) and extra fast switching (no reset and the connection kept alive). Using the fast switching mode allows for fraction-of-a-second switching times when using high performance display devices or when using a scaler on the video output.

Features and Benefits
• Max. Data Rate – 8.91Gbps (2.97Gbps per graphic channel).
• Max. Resolution – 4K @ 60Hz (4:2:0) and WUXGA.
• HDTV Compatible.
• HDCP 1.4 and HDMI 1.4 Compliant.
• HDMI Support – Deep Color, Ethernet, ARC, 7.1 PCM.
• Step-in Master Support.
• Automatic Input Detection and Selection.
• Auto-Power Off – When no HDMI input for 30 seconds (selectable).
• HDCP On/Off Switching.
• EDID Configuration Options.
• Selectable Switching – Manual or fast auto-switching according to last connected or preset priority.
• Full HDBaseT Certification – Including bidirectional RS-232, Ethernet, IR and PoE.
• HDBaseT Extended Reach – Up to 330 feet @ 4K60 (4:2:0).
• PoE source for HDBaseT receivers.
• Contact Closure – For remote manual switching override.
• HDMI ARC De-Embedding – From output to balanced stereo audio line, uncompressed.
• Firmware Upgrade – Over mini-USB, RS-232 or RJ-45 Web page.
• Varied Control Options – Front panel keyboard, HDBaseT Ethernet, RS-232 local and over HDBaseT.
• Built-in Web Server.
• Software Support – For Protocol 3000, K-Router Plus, EDID Designer, K-Upload.

In the Box
1x VS-611DT UHD 6×1:2 Auto Switcher
1x Power Supply (12V DC)
4x Rubber Feet
1x Quick Start Guide
