4K 18G 4 Input (2x HDMI, 1x DisplayPort, 1x VGA) HDBaseT Presentation Switcher

4K 18G 4 input (2x HDMI, 1x DisplayPort, 1x VGA) HDBaseT presentation switcher

with HDMI and HDBaseT (131 foot extension) mirrored outputs (Receiver included), audio de-embed, IR, RS-232, IP control, auto switching, PoH, CEC Manager™; KD-App and KDPlug & Present™ ready

---

Key Digital^® KD-UF42 is a 4K/18G KD-App ready presentation switcher kit with CEC Manager™, auto switching, and audio de-embedding creating a user-friendly, simplified presentation system.

KD-UFS42 features two HDMI, one DisplayPort, and one VGA + L/R analog audio input.

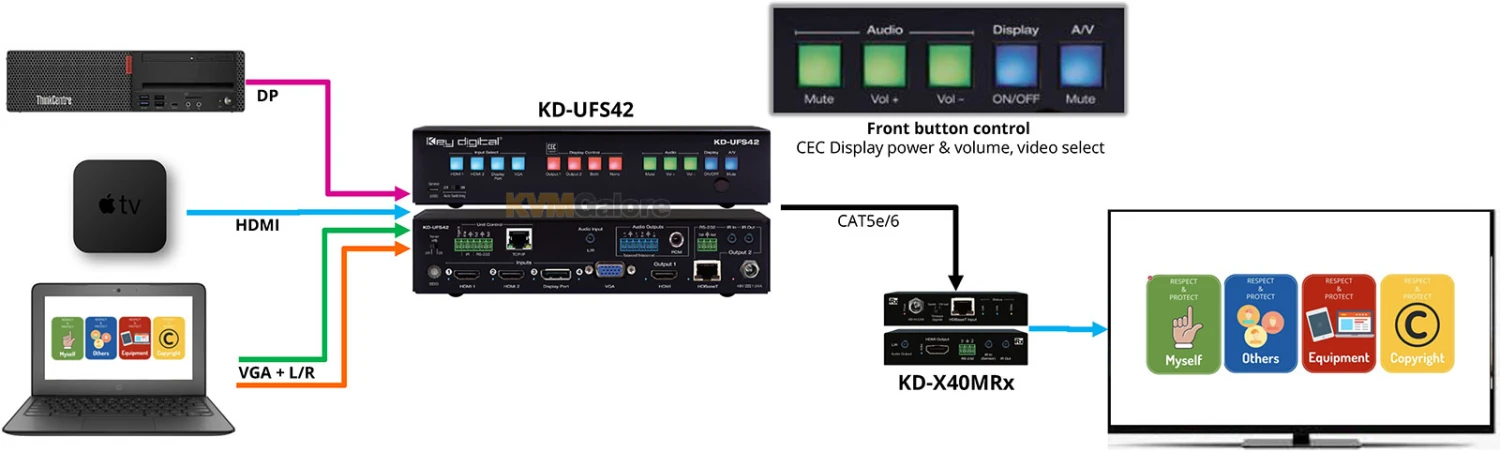

Mirrored HDMI and HDBaseT outputs enable audience + presenter views and the HDBaseT output marries in with the included KD-X40MRx for integrating monitors or projectors up to  131 feet (40 m) away when the selected source is outputting 4K/Ultra-HD (up to 230 feet at 1080p).

Designed for professional audio video installations in huddle spaces, conference rooms, classrooms, lecture halls, auditoriums, and more, KD-UFS42 enables the connected video sources to be displayed on up to two connected displays while analog (balanced/unbalanced) and digital (PCM) audio deembed ports feed audio of the selected source into an amplifier, DSP, or sound bar.

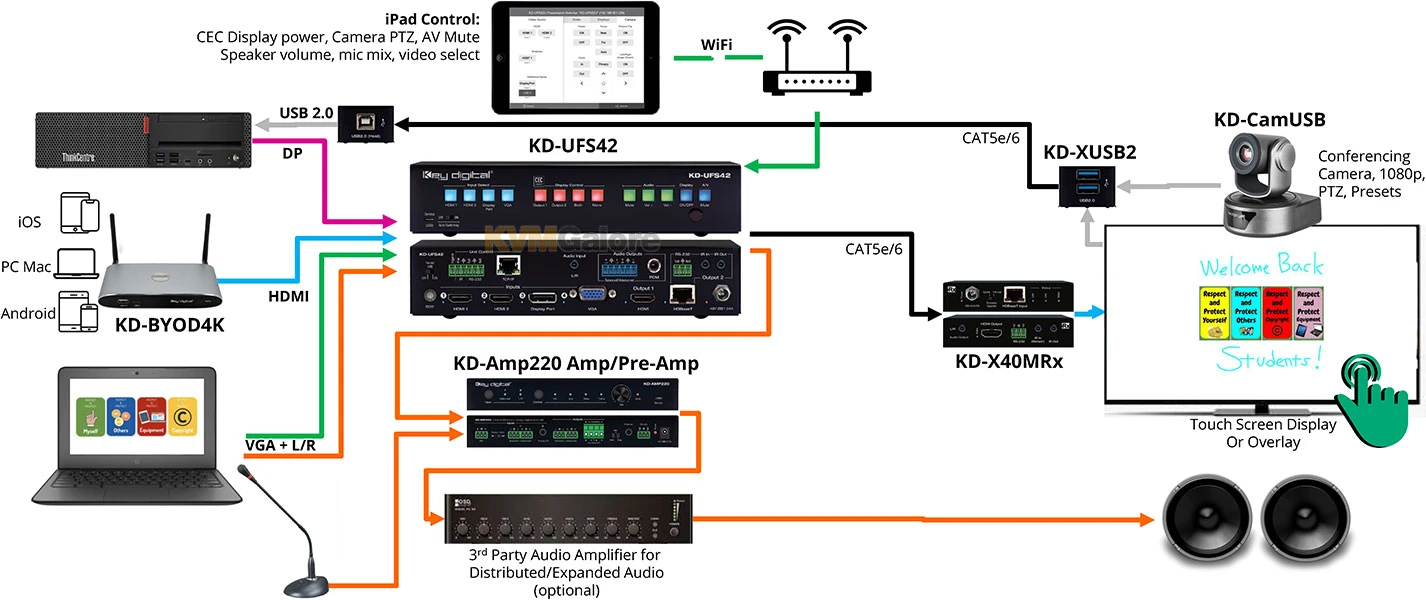

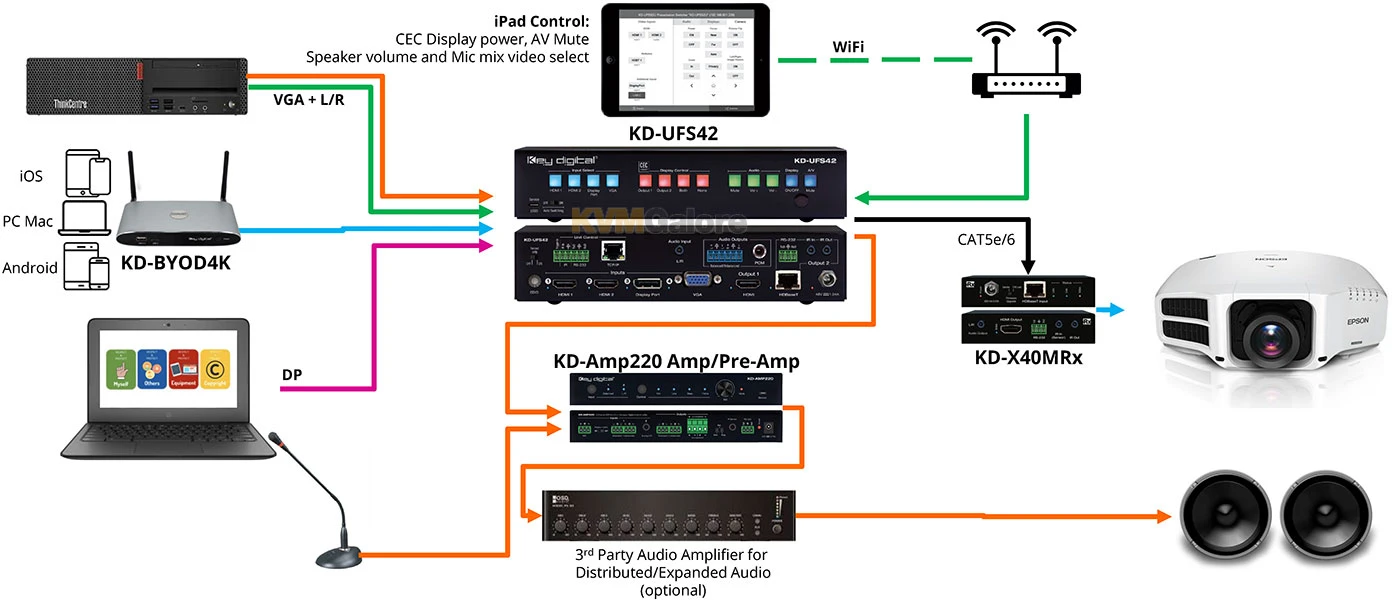

Integrating KD-UFS42 with KD-AMP220 and KD-CAMUSB will enable an app-ready all-in-one solution for control of video switching, sound and speech enforcement, and PTZ camera control.

Key Digital CEC Manager™ enables basic controls of the connected displays for a simplistic all-in-one integration system. KD-UFS42 presentation switcher supports all SD, HD, VESA and Ultra-HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-UFS42 can also be controlled via trigger voltage and features status monitoring LEDs.

Signal Extension
• 4K/Ultra-HD (18G): Up to 131 feet (40 m)
• 1080p: Up to 230 feet (70 m)

Features and Benefits
• Presentation Switching: 2 HDMI, 1 DisplayPort, and 1 VGA + L/R audio source selection by push button, IP, RS-232, IR, auto switching, or trigger control
• Ultra HD/4K: Supports up to 4096×2160 or 3840×2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• CEC Manager™: Power, volume, and muting controls of the connected display/projector without any additional control wiring
• Selection of desired CEC command recipient
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
• KDPlug & Present™ Ready: Add KD-CX800 to build a programming-free automation system
• Ease of Integration: Complete configuration using Key Digital Management Software™ Pro
• Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors
• KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement

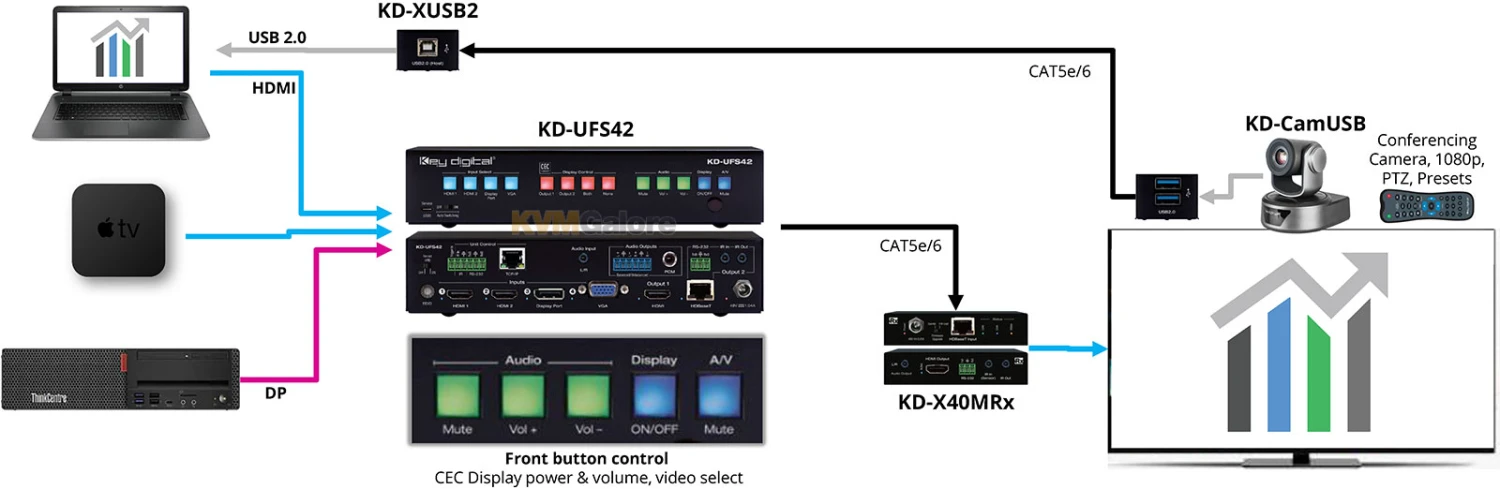

• PTZ USB Camera Integration: Add KD-CAMUSB for full PTZ control via KD-App. Use with KD-XUSB2 extender for USB signal extension over CAT-5e/6
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10+ and Dolby Vision: More life-like images through a greater range of luminance levels
• Power over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-UFS42
• Installation: Half-rack width with rack and under-table mounting ears included
• Deep Color Support: Up to Ultra-HD/4K 30Hz 4:4:4/12 bits or 60Hz 4:2:2/12 bit
• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
• RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
• Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit
• Lossless Compressed Digital Audio: Dolby^® TrueHD, Dolby^® Digital Plus, DTS-HD Master Audio™, and Dolby^® Atmos
• Control System Support: Key Digital^® App ready. Compass Control^® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API

Package Includes
1x KD-UFS42 presentation switcher
1x KD-X40MRx 4K/18G HDBT Receiver with L/R Audio De-Embed, IR, RS-232
1x Power supply, 48V / 1.04A, 50W, (model KD-PS50W48V
1x Remote control and battery set (model KD-RMPS)
2x Mounting brackets (L-Bracket)
4x L-Bracket mounting screws
1x Half-rack ear mount
1x Short rack ear
4x Rack ear screws
2x Mounting brackets for KD-X40MRx (LBracket)
4x L-Bracket mounting screws for KDX40MRx
1x 6-pin blue color terminal block plug
1x 6-pin green color terminal block plug
2x 3-pin green color terminal block plugs
1x 6ft Micro USB to USB A data cable (USB 2.0)
1x IR Emitter (3.5mm mono)
1x IR Sensor (3.5mm stereo)
