4-port, Secure (PPs 4.0) DisplayPort KVM Switch With MST, CAC And Audio Support

4-port, secure (PPs 4.0) DisplayPort KVM switch with MST, CAC and audio support

4K single-head DisplayPort computers to 2x 4K HDMI extended-desktop screens; NIAP 4.0 approved

---

DPMST secure DisplayPort KVM switches include MST (multi-stream transport) technology which reduces the amount of cables needed to connect to a PC. This allows two separate HDMI Ultra-HD (4K @ 30Hz) video output signals to be generated from just a single DisplayPort (4K @ 60Hz) input connection.

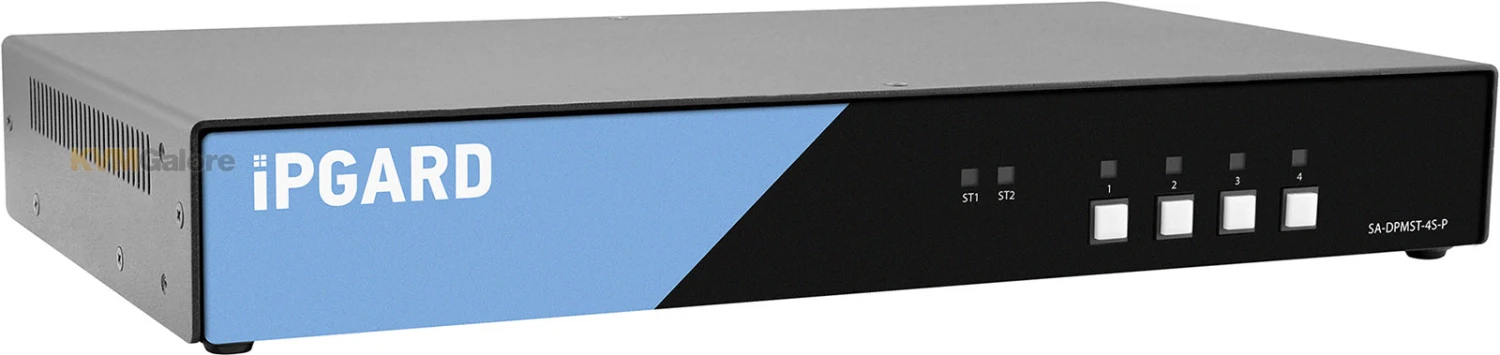

SA-DPMST-4S-P is a secure DisplayPort 1.2a compliant device. SA-DPMST-4S-P can control 4 computers with a single DisplayPort connection each, while providing the ability to view their video in an extended-desktop on two HDMI monitors.

The secure SA-DPMST-4S-P converts a single DisplayPort 1.2 input signal to two separate HDMI output connections through advanced MST technology. This allows a user to extend their desktop display to two screens and achieve resolutions of up to 4K (3840×2160 @ 30 Hz) on each connected monitor from any connected single-port DisplayPort computer.

Why Secure KVM Switch?
Traditional non-secure KVM switches offer centralized control of multiple computers, but offer no absolute isolation between them. This exposes systems to the possibility of malicious damage and disruption, and acquisition of sensitive data from one computer to another.

iPGARD’s secure KVM switch is designed for use in secure defense and intelligence applications where sensitive data must be protected. The switch is NIAP PPs 4.0 certified and equipped with the highest security features that meet today’s information assurance safe control standards. The switch prevents data leakage between computers that can run at different security levels, eliminating any potential cyber threat.

Each model is equipped with internal anti-tamper switches, which sense attempts to open the device enclosure. Once the system identifies such an attempt, all the front panel LEDs will flash rapidly and the unit will become useless by shutting off connection with all attached PCs and peripherals disabling any functionality. The unit’s enclosure is also protected with a tamper-evident seal to provide a visual evidence if the unit has been opened.

Ultra-Secure KVM Switching
SA-DPMST-4S-P is a 4-port DisplayPort KVM switch with a dedicated CAC port and support for 4K (3840×2160 @ 30Hz) resolution video. SA-DPMST-4S-P allows users to control KVM (keyboard, video and mouse) operation on four computers with DisplayPort video. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount. The unit’s controller has a special protection feature that prevents reprogramming or reading the firmware.

With SA-DPMST-4S-P, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch’s functions. Better yet, SA-DPMST-4S-P offers the highest security when accessing classified and public networks over the Internet through these isolated connections. By isolating connections between networks, SA-DPMST-4S-P ensures no data is leaked between secure ports and the outside world.

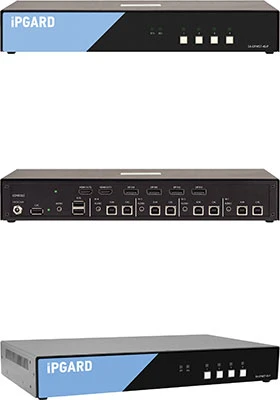

SA-DPMST-4S-P has clearly marked front-panel buttons for controlling the devices, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than SA-DPMST-4S-P.

CAC Support
SA-DPMST-4S-P supports CAC devices such as smart-card and biometric readers, bolstering security when using the device. However, iPGARD takes CAC security even further, allowing users to assign specific peripheral devices to SA-DPMST-4S-P’s CAC port. Once a peripheral device has been registered by an authenticated admin, users can then switch the connection between that device and the PC’s along with KVM switching.

Keyboard and Mouse Emulation
The secure KVM switch emulates (simulates) the presence of a keyboard and mouse for every attached computer through a USB cable. Both selected and non-selected computers maintain a constant connection with the unit’s keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected peripherals during switching operations. Emulation of keyboard and mouse also prevents direct connection between the peripherals and the connected computers, shielding systems from potential vulnerabilities. Opto-isolators are used in the unit to keep USB data paths electrically isolated from each other, providing high isolation and preventing data leakage between ports.

Secure EDID Learn and Video Emulation
SA-DPMST-4S-P simulates a generic EDID as default, allowing it to operate most of the connected monitors. Both selected and non-selected computers maintain a constant connection with the unit’s video and EDID emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected monitors during switching operations. Upon activating the KVM switch, the unit will quickly and automatically learn new EDID for specific monitors. The unit prevents unwanted and unsecure data from getting transmitted between the computers and the display.

Key Features and Benefits
• Supports Windows, Mac and Linux operating systems
• Single-head DisplayPort to dual-head HDMI video interface for each connected computer
• DisplayPort 1.2a dual mode receiver
• 4K Ultra-HD resolution – supports up to 3840×2160 @ 30Hz
• Support for RGB or YCbCr
• Supports balanced speakers output and switching
• Multi-stream transport supports up to 2 streams
• Advanced configurable CAC port
• Front panel tactile buttons for secure channel switching and LED channel indicators
• Keyboard, mouse and video emulation
• External power supply – Level VI efficiency

Security Features
• Non-reprogrammable ROM
• No external interfaces can be used, only keyboard, mouse and CAC devices accepted
• Secure channel switching with leak prevention, no hotkeys
• Peripheral and authentication ports isolation for secure usage
• Computer interface isolation while powered or unpowered
• Active anti-tamper switches
• Long-life internal anti-tampering battery
• External tamper-evident seals and anti-tampering technology
• No wireless devices connected
• Ensures only trusted admin gains access
• Absolute isolation – no data leakage between ports and no data is ever stored
• Certified by NIAP, the latest Common Criteria Protection Profile for Peripheral Sharing Switch Version 4.0)

Package Includes
• SA-DPMST-4S-P switch
• Power adapter [PS12V2A]• Cables are not included – see listing below for compatible KVM cables required per computer port

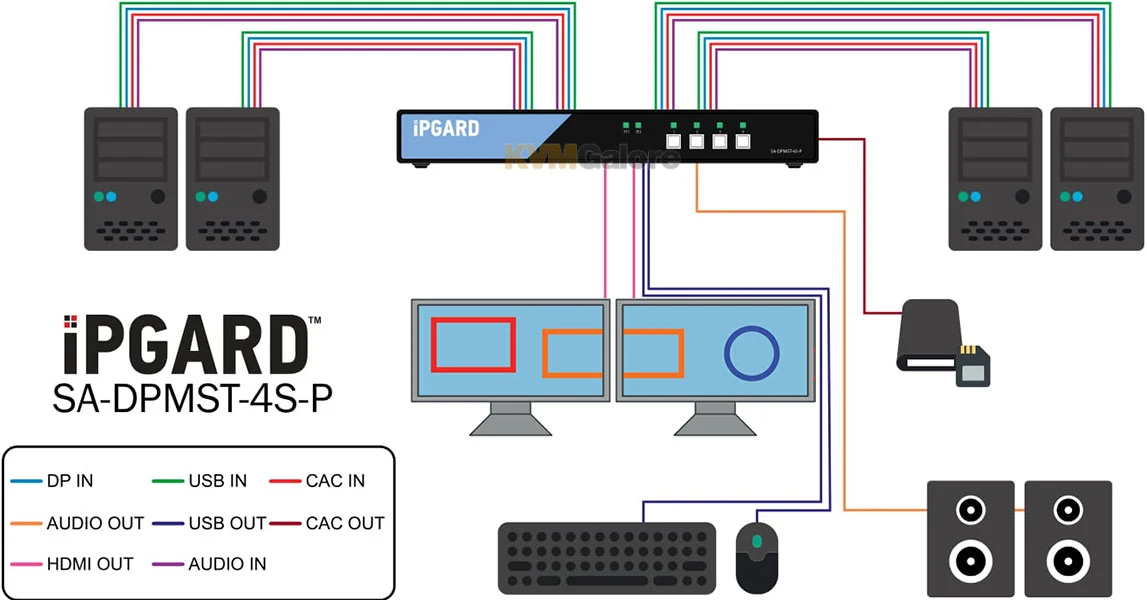

Required Cables (per port)
1x DisplayPort, male-male
2x USB, Type-A to Type-B
1x Audio, 3.5mm, male-male
