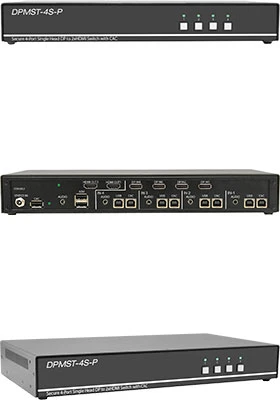

4-port, Secure (PPs 3.0) DisplayPort KVM Switch With MST, CAC And Audio Support

4-port, secure (PPs 3.0) DisplayPort KVM switch with MST, CAC and audio support

4K single-head DisplayPort computers to 2x 4K HDMI extended-desktop screens; NIAP 3.0 approved

---

DPMST secure DisplayPort KVM switches include MST (multi-stream transport) technology which reduces the amount of cables needed to connect to a PC. This allows two separate HDMI Ultra-HD (4K @ 30Hz) video output signals to be generated from just a single DisplayPort (4K @ 60Hz) input connection.

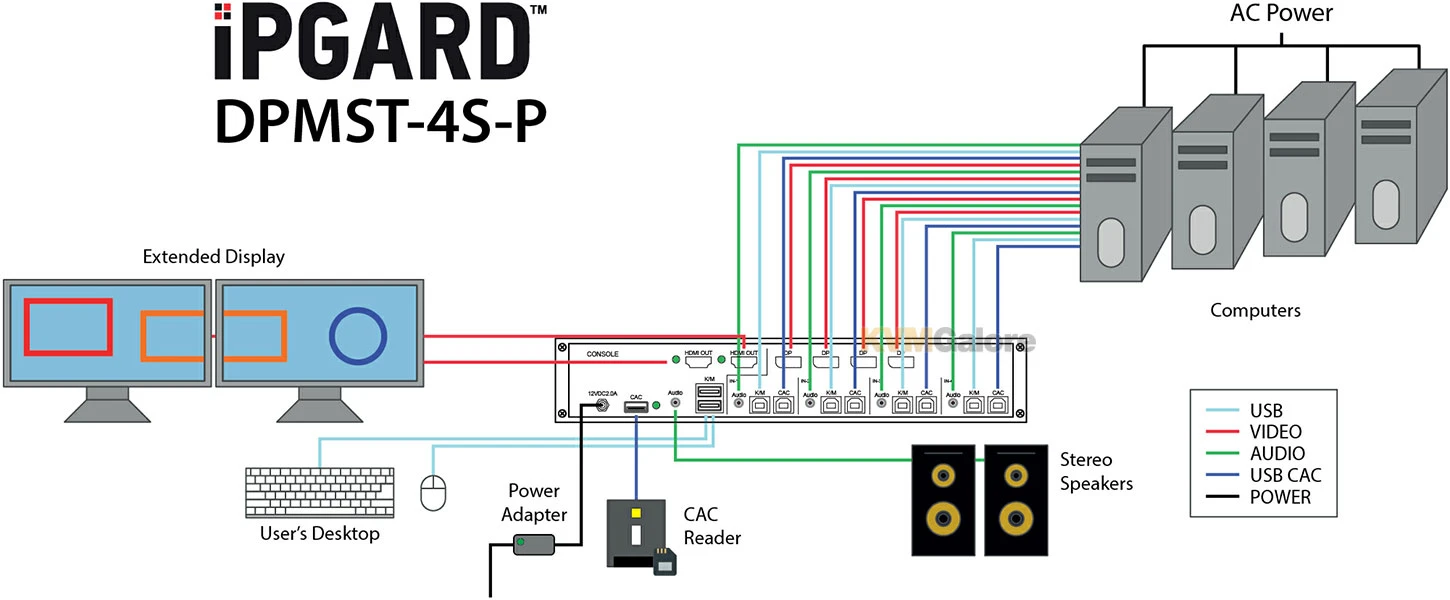

DPMST-4S-P is a secure DisplayPort 1.2a compliant device. DPMST-4S-P can control 4 computers with a single DisplayPort connection each, while providing the ability to view their video in an extended-desktop on two HDMI monitors.

The secure DPMST-4S-P converts a single DisplayPort 1.2 input signal to two separate HDMI output connections through advanced MST technology. This allows a user to extend their desktop display to two screens and achieve resolutions of up to 4K (3840×2160 @ 30 Hz) on each connected monitor from any connected single-port DisplayPort computer.

Why Secure KVM?
Traditional non-secure KVM switches offer centralized control of multiple computers, but offer no absolute isolation between them. This exposes systems to the possibility of malicious damage and disruption, and acquisition of sensitive data from one computer to another.

IPGard’s secure KVM switch is designed for use in secure defense and intelligence applications where sensitive data must be protected. The switch is NIAP PPs 3.0 certified and equipped with the highest security features that meet today’s information assurance safe control standards. The switch prevents data leakage between computers that can run at different security levels, and eliminates any potential cyber threat.

Ultra-Secure KVM Switching
DPMST-4S-P is a 4-port DisplayPort KVM switch with support for 4K (3840×2160 @ 30Hz) resolution video. DPMST-4S-P allows users to control KVM (keyboard, video and mouse) operation on four computers with DisplayPort video. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.

With DPMST-4S-P, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch’s functions. Better yet, DPMST-4S-P offers the highest security when accessing classified and public networks over the Internet through these isolated connections. By isolating connections between networks, DPMST-4S-P ensures no data is leaked between secure ports and the outside world.

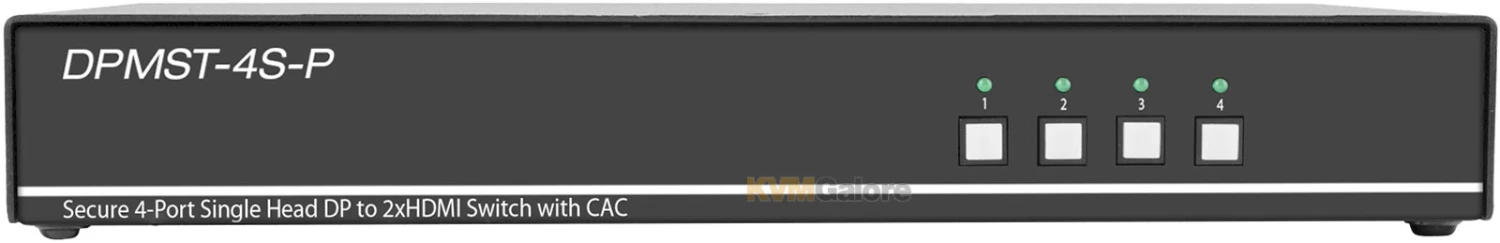

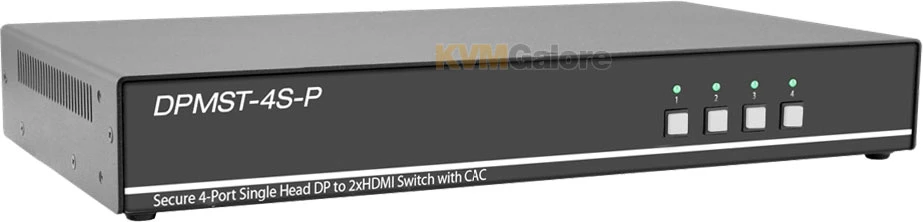

DPMST-4S-P has clearly marked front-panel buttons for controlling the devices, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than DPMST-4S-P.

CAC Support
Many secure KVM switches support CAC devices, such as smart-card and biometric readers, bolstering security when using the device. However, IPGard takes CAC security even further, allowing users to assign specific peripheral devices to DPMST-4S-P’s CAC port. Once a peripheral device has been registered by an authenticated admin, users can then switch the connection between that device and the PC’s along with KVM switching.

Keyboard and Mouse Emulation
The secure KVM emulates (simulates) the presence of a keyboard and mouse for every attached computer through a USB cable. Both selected and non-selected computers maintain a constant connection with the unit’s keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected peripherals during switching operations. Emulation of keyboard and mouse also prevents direct connection between the peripherals and the connected computers, shielding systems from potential vulnerabilities.

Secure EDID Learn and Video Emulation
DPMST-4S-P simulates a generic EDID as default, allowing it to operate most of the connected monitors. Both selected and non-selected computers maintain a constant connection with the unit’s video emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected monitors during switching operations. Upon activating the KVM, the unit will quickly and automatically learn new EDID for specific monitors. The unit then prevents unwanted and unsecure data from getting transmitted through DDC lines by means of secure EDID learning and emulation.

Key Features and Benefits
• Supports Windows 7 and later
• Single-head DisplayPort to dual-head HDMI video interface for each connected computer
• Resolutions up to 4K Ultra-HD (3840×2160 @ 30Hz) per display
• DisplayPort 1.2a dual mode receiver
• HDMI/DVI operation up to 320MHz
• Max video input resolution 4K @ 60Hz
• Multi-Stream Transport supports up to 2 streams
• Supports RGB or YCbCr
• Supports balanced speakers output and switching
• Front panel tactile buttons with LED indicator
• External power supply – Level VI efficiency

Security Features
• Non-reprogrammable ROM
• Active anti-tamper switches
• Long-life internal anti-tampering battery
• External tamper-evident seals
• Keyboard, mouse and video emulation
• Absolute isolation – no data leakage between ports
• Certified by NIAP, the latest Common Criteria Protection Profile for Peripheral Sharing Switch Version 3.0)



Package Includes
• DPMST-4S-P switch
• Power adapter [PS12V2A]• Cables are not included – see listing below for compatible KVM cables required per computer port

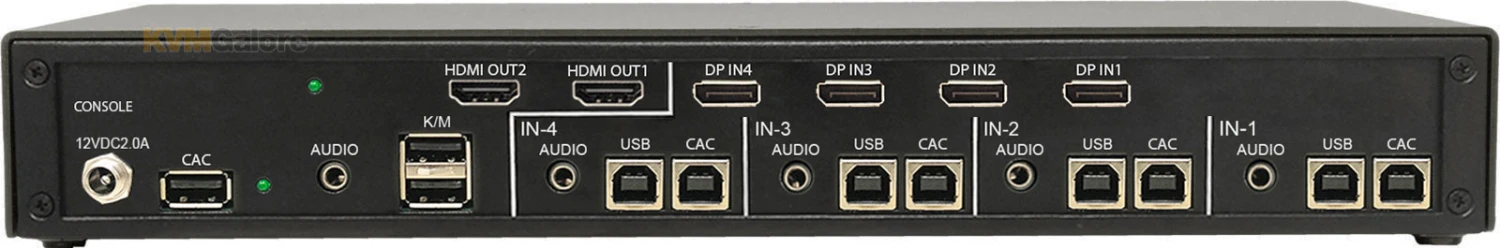

Required Cables (per port)
1x DisplayPort, male-male
2x USB, Type-A to Type-B
1x Audio, 3.5mm, male-male
