4-port MST DisplayPort KVM Switch With Quad 4K HDMI Out

4-port MST DisplayPort KVM switch with quad 4K HDMI out

4x 4K dual-head DisplayPort computers to 4x 4K HDMI extended-desktop screens, with audio support

---

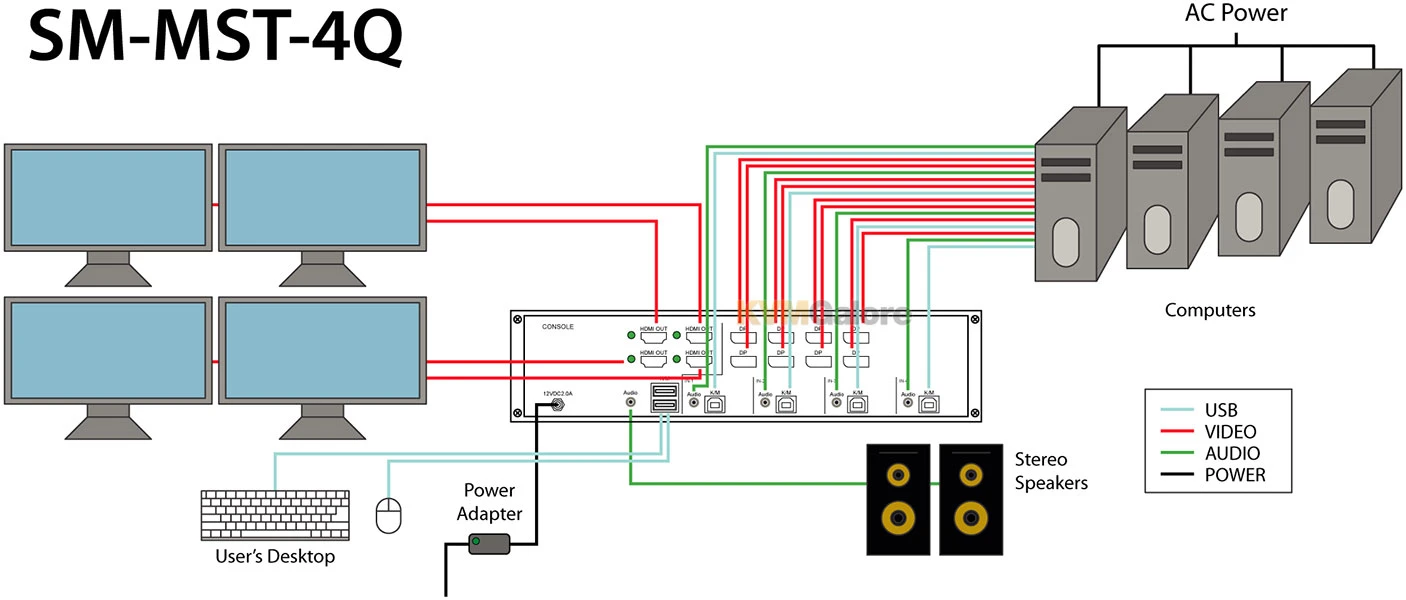

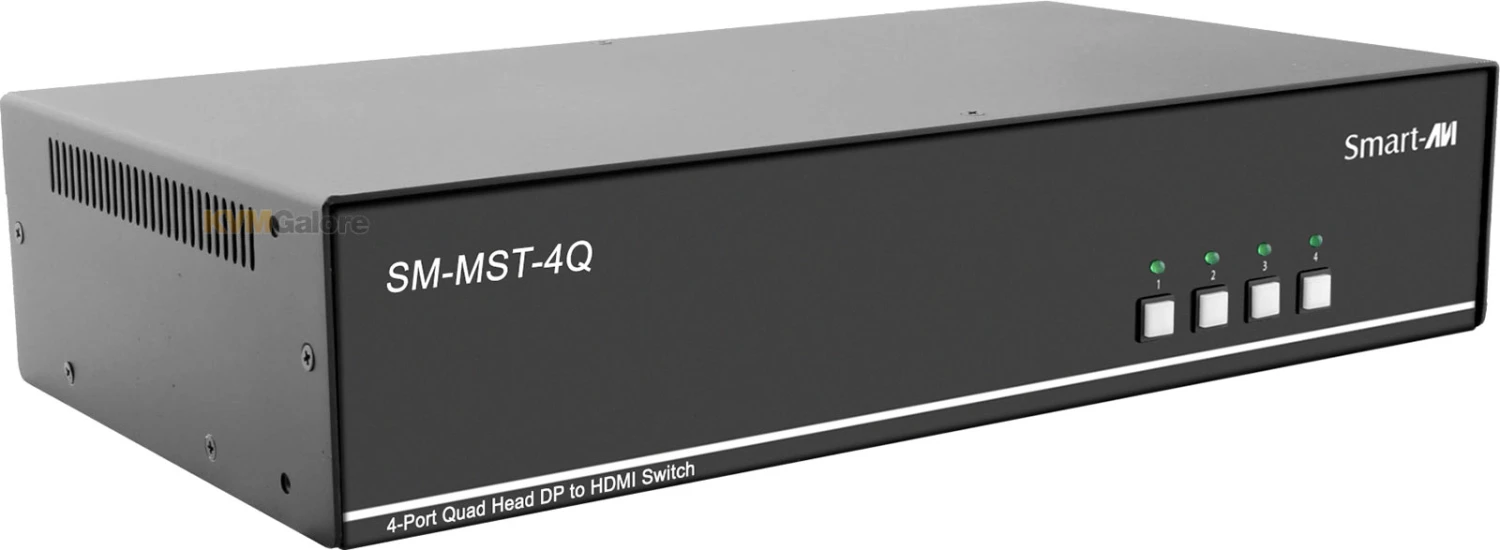

SM-MST-4Q – a DisplayPort version 1.2a compliant device – is a KVM switch that allows a user to access and control four dual-head DisplayPort computers from a single USB keyboard/mouse and four HDMI monitors supporting extended desktop.

SM-MST-4Q converts each DisplayPort 1.2 input signal to two separate HDMI output connections through advanced MST (multi-stream transport) technology. With two video outputs per computer, this allows a user to extend their desktop display to four screens and achieve resolutions of up to 4K (3840×2160 @ 30 Hz) on each connected monitor from any connected single-port DisplayPort computer.

Features and Benefits
• Supports Windows 7 and later
• Dual-head DisplayPort to quad-head HDMI video interface for each connected computer
• Resolutions up to 4K UHD (3840×2160 @ 30Hz) per display
• DisplayPort 1.2a quad mode receiver
• HDMI/DVI operation up to 320MHz
• Max video input resolution 4K @ 60Hz
• MST (multi-stream transport) supports up to 2 streams
• Supports RGB or YCbCr
• Supports balanced speakers output and switching

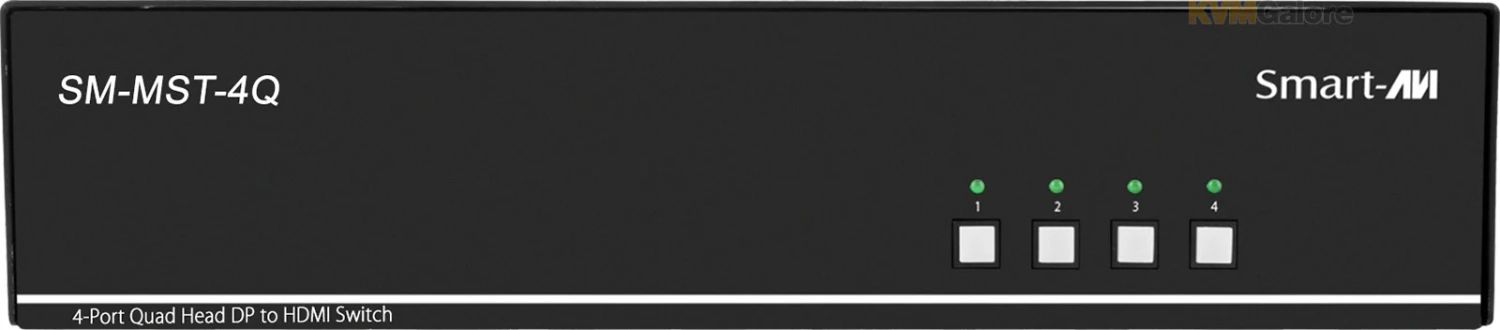

• Front panel tactile buttons with LED indicator
• External power supply – Level VI efficiency

Package Includes
• SM-MST-4Q switch
• Power adapter [PS12V2A]• 3.5 mm to DB-9 serial cable [CC35DB9]• KVM cables are not included – see listing below for compatible KVM cables required per computer port

Required Cables (per port)
1x DisplayPort, male-male
1x USB, Type-A to Type-B
1x Audio, 3.5mm, male-male
