4-port 4K HDMI* And/or DisplayPort* Dual-screen KVM Switch

4-port 4K HDMI* and/or DisplayPort* dual-screen KVM switch

supporting USB 3.0 peripherals, audio, copy and paste between sources, mobile media view and fast charging

---

• Touch screen support
• Native video supports up to Ultra-HD 4K at 60Hz
• USB 3.0 peripheral sharing for mass storage devices, cameras, printers, etc.
• Managed copy and paste allows users to copy text or files between connected computers
• Universal video connectors to support DisplayPort and HDMI (DVI-D supported with HDMI-to-DVI-D cable)
• Freeze audio channel that independently locks the audio channel to a computer
• Freeze USB accessory port enables users to lock USB accessory port to a specific computer

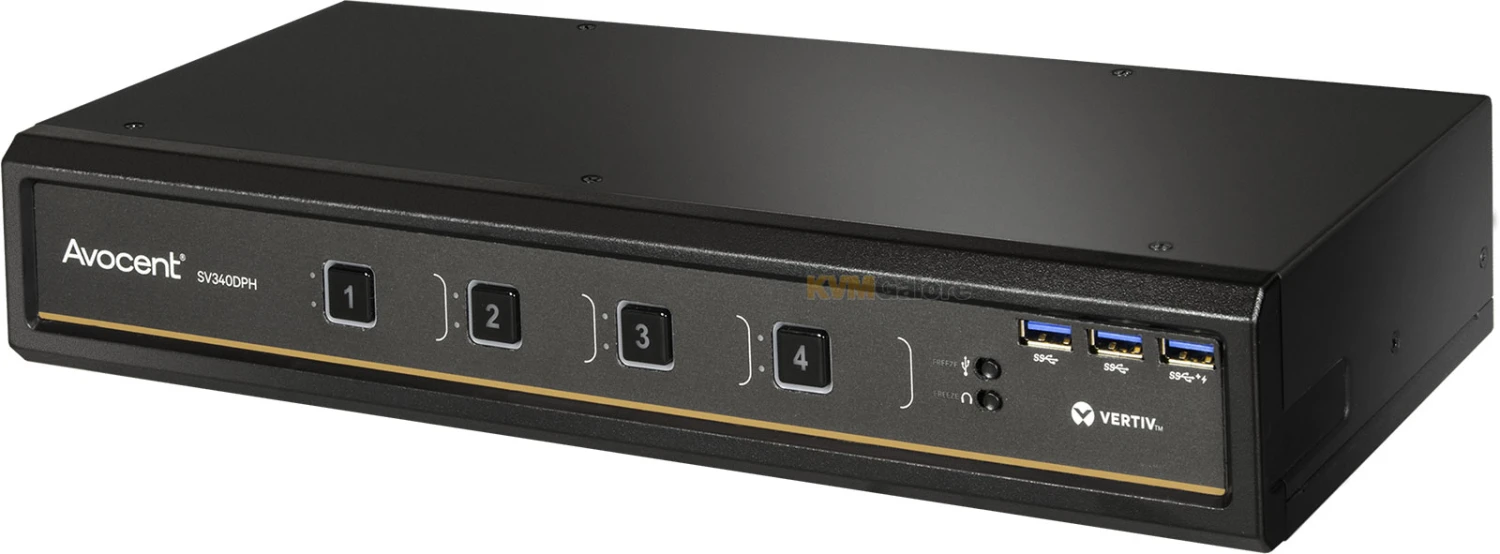

Vertiv™ Avocent^® SV340DPH desktop KVM switch provides streamlined connectivity and control of today’s multimedia desktops. Vertiv Avocent SV340DPH KVM switch supports a wide range of peripherals and up to four different systems or networks. When employees need access to PCs, scanners, printers, mobile devices, corporate ERP and CRM systems, mail servers or Ultra-HD multimedia systems — all of these and more are accessible through Vertiv Avocent SV340DPH KVM switch.

Vertiv Avocent desktop KVM switch gives users access to up to 4 computers using a single keyboard/mouse and two monitors. It provides the flexibility users need in managing content from multiple computers and makes it easy to copy and paste files between applications.

Simply by pushing a button, users gain instant access to multiple computers and peripherals, all through two monitors and a single keyboard and mouse.

Vertiv Avocent desktop KVM comes with universal video connectors that support both DisplayPort and HDMI video connectivity. Furthermore, the USB accessory ports makes it easy for users to connect to external USB devices.

With Vertiv Avocent SV340DPH KVM switch you can:
• Increase productivity with simple, rapid access to systems and peripherals
• Gain true image reproduction and display flexibility with support for Ultra-HD systems and mobile devices
• Reduce costs with fewer peripheral purchases and easier IT maintenance

Features and Benefits
• Mouse and keyboard switching via emulation assures zero delay when switching between systems
• Easily switch audio and USB 3.0 peripherals independently of KVM
• Support the mobile worker with instant access to mobile and USB device data
• Three USB 3.0 ports on the front enable easy connectivity to external USB devices, quick data transfer and high speed charging of mobile devices
• DisplayPort/HDMI 1.2 video support for 4K @ 60Hz resolution
• Mobile high-definition link allows media contained on mobile devices to be viewed on connected monitors
• Independent audio and USB switching lets users freeze audio and USB 3.0 peripherals while simultaneously working on a different system
• Multiple USB ports provide easy connectivity to external USB devices, quick data transfer and high-speed charging of mobile devices
• Copy and paste data files and text between systems
• Managed copy and paste of files and text between sources allows content to be copied from one system to another. The user simply copies the content in one system, pushes a button to switch to another system and pastes the content into the second system. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only
• Cables are not included

Required Cables (per port)
1x DisplayPort KVM Cable or HDMI KVM Cable PLUS 1x DisplayPort, male-male or HDMI, male-male
or
2x DisplayPort, male-male or HDMI, male-male
1x USB, Type-A to Type-B (for keyboard/mouse)
1x USB, Type-A to Type-B (for USB peripherals)
2x 3.5mm audio cables, male-male

* Notes
1) Each connected computer’s video interface may be either HDMI or DisplayPort.
2) One computer may use an HDMI video connection to the switch while another computer may use a DisplayPort video connection.
3) Only one video connection per computer is supported.
4) Connected monitors may have either HDMI or DisplayPort video connection.
5) Only one video connection to each monitor is supported.
