2×1 HDMI, Bidirectional RS-232, Ethernet And IR Over HDBaseT Twisted Pair Switcher/transmitter

2×1 HDMI, bidirectional RS-232, Ethernet and IR over HDBaseT twisted pair switcher/transmitter

up to 430 feet

---

Note: Receiver unit is purchased separately

• HDBaseT technology
• Requires shielded twisted-pair cable
• Max. Data Rate – 6.75Gbps (2.25Gbps per graphic channel)
• HDCP compliant
• 3D pass-through
• Size – MegaTOOLS® – Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter
• Audio – E

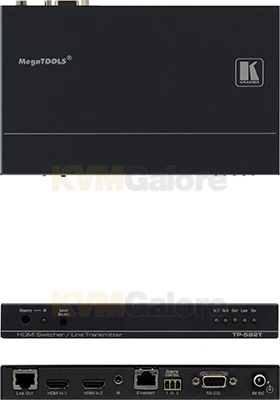

TP-582T is a high-quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals.

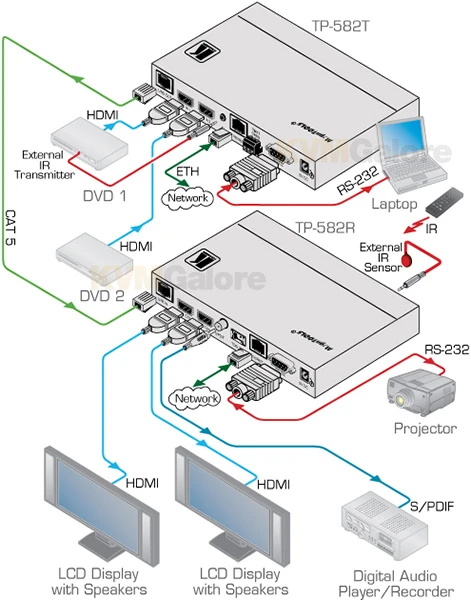

TP-582T selects one of two HDMI inputs and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to an HDBaseT twisted pair signal.

A TP-582R receiver (purchased separately) converts the HDBaseT twisted pair signal back to Ethernet 100BaseT, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLink® audio outputs.

Applications
Home theater, presentation and multimedia applications.
Rental and staging.

Features and Benefits
• Max. Data Rate – 6.75Gbps (2.25Gbps per graphic channel).
• HDBaseT Technology.
• HDTV Compatible.
• HDCP Compliance.
• HDMI Support – Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
• 3D Pass-Through.
• EDID PassThru – Passes EDID signals between the source and display.
• Bidirectional RS-232 Interface – Commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit.
• Ethernet Interface – Passes 100BaseT.
• System Range – Signals of up to 6.75Gbps (up to 1080p @ 60Hz 36–bit) over a range of up to 130m (430 feet) when using BC–UNIKat cables.
• Cable – Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer’s BC-DGKat524, BC-DGKat623 and BCP-DGKat724 cables.
• Control – Front panel and contact closure switching.
• Indicators – Status LEDs for input selection, output, link and power.
• Compact MegaTOOLS® – 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.

Note: The transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
